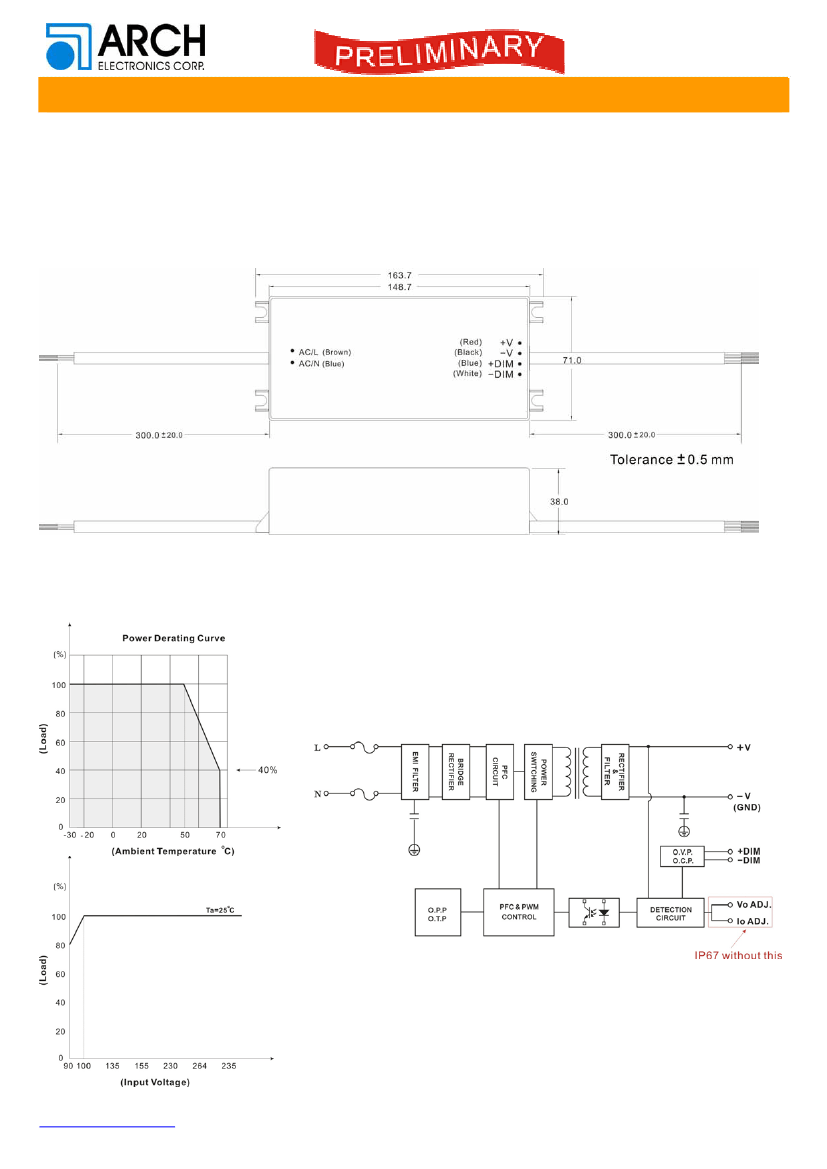

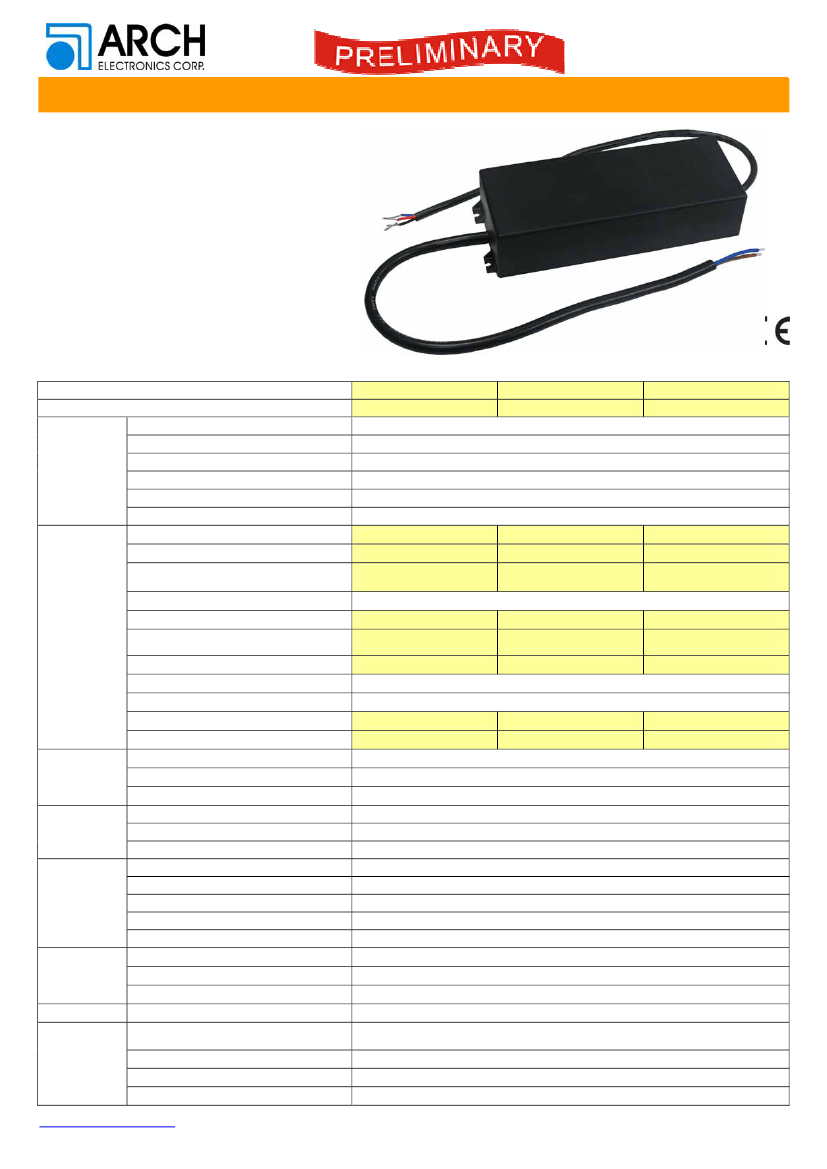

LED Power

PSF100 SERIES

KEY FEATURES

Fully Isolated Plastic Case with IP65/67 Level

Suitable for Dry / Damp / Wet / Locations

Universal Input: 100-277 VAC

Bulit-in Active PFC Function

High Efficiency up to 90%

Free Air Convection

High Reliability

With Constant Current & Constant Voltage

Output Voltage and Constant Current Level can Be

Adjusted Through Internal Potential Meter

LED Power Application

3-Years Product Warranty

100 Watts

ELECTRICAL SPECIFICATIONS

All specifications valid at normal input voltage, full load and +25°C after warm-up time unless otherwise stated.

Model No.

Max output wattage

(W)

(Note2)

Voltage

Frequency (Hz)

Input

Power factor

Current (Full load)

Inrush current

Leakage Current

Voltage (V.DC.)

Voltage ADJ Range Setup

Constant Current Operation Voltage (max)

(CC Mode) (Note3)

Voltage Tolerance

Output

Preset Current (mA) (CC Mode)

Current Adjustment Range (mA)

(CC Mode)

Minimum Load (mA)

Line Regulation (100-270VAC) (typ.)

Load Regulation (Min-Max) (typ.)

Ripple & Noise (max)

Efficiency (at 230VAC.)(typ)

Over current protection

Protection

Over voltage protection

Short circuit protection

Input-Output (V.AC)

Isolation

Input-FG

Output-FG

(V.AC)

.(V.AC)

PSF100-24S

96W

90-295 VAC

50 / 60 Hz

PF>0.9 at Full load (115 VAC / 230 VAC)

1.4A max. (115 VAC) / 0.7A max. (230 VAC)

60 A max. (Cold Start at 230 VAC)

< 0.7 mA max at 240 VAC

24V

22 ~ 27V

15.6~ 24

VDC

±10%

3850

2600~4000

2600

±4%

±5%

2.7Vp-p

89%

Auto recovery

Zener diode clamp

Auto recovery

3750V

1880V

500V

-30°C…+70°C (with derating)

-40°C…+85°C

0.02%/°C

95% RH

>530,000 h @ 25°C (MIL-HDBK-217F)

6.1 x 2.17 x 1.38 Inches

Free air convection

UL8750、IEC / EN 61347-2-13、 IEC / EN 61347-1

EN 55015

EN 61547

(Pending)

(155.0 x 55.0 x 35.0 mm ) Tolerance

±0.5

3.6Vp-p

90%

5Vp-p

90%

2450

1720~2650

1720

1750

1150~1770

1150

36V

33 ~ 40V

23.4~36

VDC

54V

49 ~ 58V

35.1~54

VDC

PSF100-36S

96W

PSF100-54S

95.58W

Operating temperature

Storage temperature

Environment

Temperature coefficient

Humidity

MTBF

Dimension (L x W x H)

Physical

Safety

Weight

Cooling method

Agency Approvals

EMI

(Conducted & Radiated Emission)

EMS (Noise Immunity)

Harmonic Current

Surge

http://www.archcorp.com.tw

TEL: +886-2-26989508 FAX: +886-2-26981319

EMC

EN 61000-3-2(at Full Load)、EN 61000-3-3

2KV L-L, 4KV L-E

-1-
