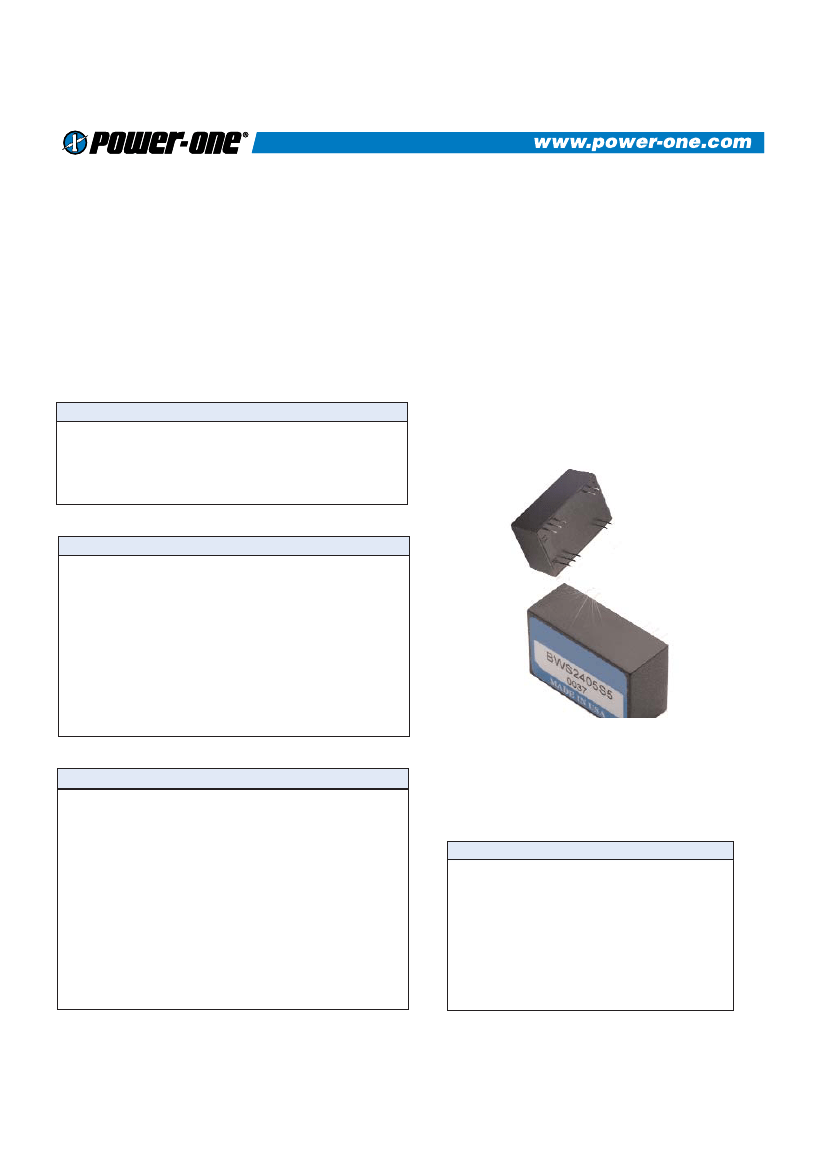

BWS SERIES - 2.5 WATT

DESCRIPTION

BWS DC/DC converters offer excellent regulation and

isolation in an industry-standard DIP package. The BWS

is ideal for industrial, telecom, and networking

applications, and features short circuit protection, low

profile, and 500 VDC isolation. Please see the BWD series

for dual output applications.

TECHNICAL SPECIFICATIONS

Input

Voltage Range

5 VDC Nominal

12 VDC Nominal

Reflected Ripple

Reverse Input Current

4.5 - 9 VDC

9 - 18 VDC

20% Iin Max.

100% Iin Max.

FEATURES

• Industry Standard DIP

Package

• Industry Standard Pinout

• 85°C Case Operation

• Short Circuit Protection

•

Wide Range Inputs

Input Pi Filter

Regulated Outputs

500V Isolation

Output

Setpoint Accuracy

Line Regulation Vin Min. - Vin Max., Iout Rated

Load Regulation Iout Min. - Iout Max., Vin Nom.

Minimum Output Current

Dynamic Regulation, Loadstep

Pk Deviation

Settling Time

Temperature Coefficient

Ripple And Noise, 20 MHz BW

Short Circuit Protection 1

Current Limit

±5%

±1.5% Vout

±2.5% Vout

10% Iout Rated

25% Iout

1% Vout

500 ms

0.02%/°C

150 mV

Continuous

180%

General

Switching Frequency

Isolation

Input - Output

Input - Case

Output - Case

Isolation Resistance - Input to Output

Isolation Capacitance - Input to Output

No Load Input Power

Case Temperature

Standard Operating Range

Storage Range

Humidity Max., Non-Condensing

Vibration, 3 Axes, 5 Min Each

Safety

Weight (approx.)

200 kHz

500 VDC

109 Ohms

80 pF

0.70 W

-25 to +85°C

-40 to +125°C

95%

5 g, 10 - 55 Hz

UL, cUL, TUV

0.6 oz

Notes

1 Continuous short circuit protection is provided. Long-term continuous

operation in this mode is not recommended. Converter will auto-restart

once fault has been removed.

Specifications typically at 25°C, normal line, and full load, unless

otherwise stated.

Soldering Conditions: I/O pins, 260°C, ten seconds; fully compatible with

commercial wave-soldering equipment.

Safety: Agency approvals may vary from model to model. Please consult

factory for specific model information.
