M55342E02B24E3R

Description
Fixed Resistor, Thin Film, 0.125W, 24300ohm, 40V, 1% +/-Tol, -25,25ppm/Cel, 0605,
CategoryPassive components    The resistor
File Size94KB，4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

M55342E02B24E3R Overview

Fixed Resistor, Thin Film, 0.125W, 24300ohm, 40V, 1% +/-Tol, -25,25ppm/Cel, 0605,

M55342E02B24E3R Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid7076627260
Reach Compliance Codenot_compliant
ECCN codeEAR99
structureChip
JESD-609 codee0
Manufacturer's serial numberM55342
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package height0.572 mm
Package length1.397 mm
Package formSMT
Package width1.27 mm
Rated power dissipation(P)0.125 W
GuidelineMIL-PRF-55342
resistance24300 Ω
Resistor typeFIXED RESISTOR
seriesE/H-MILITARYM/D55342
size code0605
technologyTHIN FILM
Temperature Coefficient-25,25 ppm/°C
Terminal surfaceTin/Lead (Sn60Pb40) - with Nickel (Ni) barrier
Tolerance1%
Operating Voltage40 V

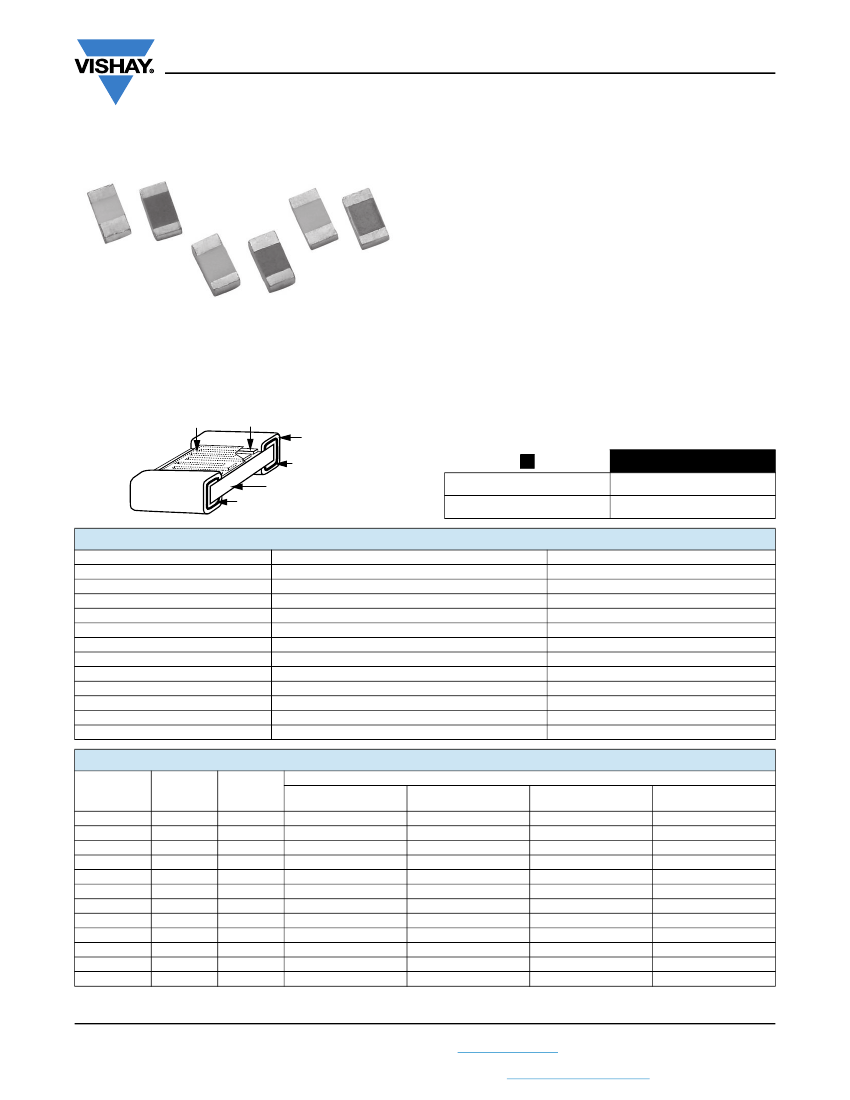

M55342E02B24E3R Preview

E/H (Military M/D55342)
www.vishay.com
Vishay Dale Thin Film
QPL MIL-PRF-55342 Qualified
Thin Film Resistor, Surface Mount Chip
FEATURES
• Established reliability, “S” and “V” failure rate level
(10 ppm), C = 2
• High purity alumina substrate
• Wraparound termination featuring a tenacious adhesion
layer covered with an electroplated nickel barrier layer for
+150 °C operating conditions
• Very low noise and voltage coefficient
(< -25 dB, 0.5 ppm/V)
• Non-inductive
• Laser-trimmed tolerances ± 0.1 %
• Wraparound resistance less than 0.010
typical
• In-lot tracking less than 5 ppm/°C
• Complete MIL-testing available in-house
• Antistatic waffle pack or tape and reel packaging available
• Military / aerospace / QPL
Thin Film Mil chip resistors feature all sputtered wraparound
termination for excellent adhesion and dimensional
uniformity. They are ideal in applications requiring stringent
performance requirements. Established reliability is assured
through 100 % screening and extensive environmental lot
testing.
CONSTRUCTION
Passivation
Resistor Film
Solder
Coating
Nickel Barrier
High Purity
Alumina Substrate
Adhesion Layer
TYPICAL PERFORMANCE
ABSOLUTE
TCR
TOL.
25
0.1
STANDARD ELECTRICAL SPECIFICATIONS
TEST
Material
Resistance Range
TCR: Absolute
Tolerance: Absolute
Stability: Absolute
Stability: Ratio
Voltage Coefficient
Working Voltage
Operating Temperature Range
Storage Temperature Range
Noise
Shelf Life Stability: Absolute
SPECIFICATIONS
Tamelox resistor film (passivated nichrome)
10
to 6.19 M
± 25 ppm/°C to ± 300 ppm/°C
± 0.1 % to ± 10 %
R
± 0.02 %
-
0.1 ppm/V
30 V to 200 V
-55 °C to +150 °C
-55 °C to +150 °C
< - 25 dB
R
± 0.01 %
CONDITIONS
-
-
-55 °C to +125 °C
+25 °C
2000 h at +70 °C
-
-
-
-
-
-
1 year at +25 °C
COMPONENT RATINGS
CASE SIZE
POWER
RATING
(mW)
50
125
200
150
225
150
250
800
1000
500
50
100
RESISTANCE RANGE () BY CHARACTERISTICS TOLERANCE
WORKING
VOLTAGE
E
E
H, K, L, M
H, K, L, M
(V)
(0.1 %, 0.25 %, 0.5 %)
(1 %, 2 %, 5 %)
(0.1 %, 0.25 %, 0.5 %)
(1 %, 2 %, 5 %)
40
49.9 to 150K
49.9 to 150K
20 to 150K
20 to 150K
40
49.9 to 301K
49.9 to 301K
20 to 301K
20 to 301K
75
49.9 to 649K
49.9 to 649K
10 to 649K
10 to 649K
125
49.9 to 1.69M
49.9 to 1.69M
10 to 1.69M
10 to 1.69M
175
49.9 to 3.16M
49.9 to 3.16M
10 to 3.16M
10 to 3.16M
50
49.9 to 475K
49.9 to 475K
10 to 475K
10 to 475K
100
49.9 to 1.5M
49.9 to 1.5M
10 to 1.5M
10 to 1.5M
150
49.9 to 4.02M
49.9 to 4.02M
10 to 4.02M
10 to 4.02M
200
49.9 to 6.19M
49.9 to 6.19M
10 to 6.19M
10 to 6.19M
75
49.9 to 1M
49.9 to 1M
49.9 to 1M
49.9 to 1M
30
49.9 to 100K
49.9 to 100K
20 to 100K
20 to 100K
50
49.9 to 258K
49.9 to 261K
10 to 258K
10 to 261K
M55342/01
M55342/02
M55342/03
M55342/04
M55342/05
M55342/06
D55342/07
M55342/08
M55342/09
M55342/10
M55342/11
M55342/12
Note
• Values listed are a guide, refer to MIL spec for value/tolerance allowance
Revision: 15-Jul-16
Document Number: 60018
1
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
E/H (Military M/D55342)
www.vishay.com
Vishay Dale Thin Film
DIMENSIONS
in inches
D
T
E
L
W
CASE SIZE
M55342/01
M55342/02
M55342/03
M55342/04
M55342/05
M55342/06
D55342/07
M55342/08
M55342/09
M55342/10
M55342/11
M55342/12
TERM.
B
B
B
B
B
B
B
B
B
B
B
B
L
0.055 ± 0.006
0.055 ± 0.006
0.105 ± 0.007
0.155 ± 0.007
0.230 ± 0.007
0.080 ± 0.006
0.126 ± 0.008
0.209 + 0.009/- 0.018
0.259 + 0.009/- 0.015
0.105 ± 0.007
0.040 ± 0.005
0.064 ± 0.006
W
0.025 ± 0.005
0.050 ± 0.005
0.050 ± 0.005
0.050 ± 0.005
0.075 ± 0.005
0.050 ± 0.005
0.063 ± 0.005
0.098 ± 0.005
0.124 ± 0.005
0.100 ± 0.005
0.025 ± 0.005
0.032 ± 0.005
T
0.010 to 0.033
0.010 to 0.033
0.010 to 0.033
0.015 to 0.033
0.010 to 0.033
0.010 to 0.033
0.010 to 0.033
0.010 to 0.033
0.010 to 0.033
0.010 to 0.033
0.010 to 0.033
0.010 to 0.033
D
0.010 ± 0.005
0.010 ± 0.005
0.015 ± 0.005
0.015 ± 0.005
0.020 ± 0.005
0.016 ± 0.008
E
0.015 ± 0.005
0.015 ± 0.005
0.015 ± 0.005
0.015 ± 0.005
0.020 ± 0.005
0.015 ± 0.005
0.020 + 0.005/- 0.010 0.020 + 0.005/- 0.010
0.020 ± 0.005
0.020 ± 0.005
0.015 ± 0.005
0.010 ± 0.005
0.012 ± 0.005
0.020 ± 0.005
0.020 ± 0.005
0.015 ± 0.005
0.015 ± 0.005
0.015 ± 0.005
ENVIRONMENTAL TESTS
ENVIRONMENTAL TEST
Thermal Shock
Low Temperature Operation
Short Time Overload
High Temperature Exposure
Resistance to Bonding
Moisture Resistance
TCR
Life (2000 h at + 70 °C)
Life (10 000 h at + 70 °C)
MIL-PRF-55342 LIMITS
(R ±)
0.1 %
0.1 %
0.1 %
0.1 %
0.2 %
0.2 %
± 25 ppm/°C
0.5 %
2.0 %
VISHAY PERFORMANCE
(R ±)
0.020 %
0.025 %
0.050 %
0.009 %
0.006 %
0.004 %
< 15 ppm/°C
0.02 %
0.04 %
MECHANICAL SPECIFICATIONS
Resistive Element
Substrate Material
Chip Terminations
Fused Solder
Tamelox
Alumina
Solder over nickel
Plated solder 90/10
FSCM CAGE # - 57489
Revision: 15-Jul-16
Document Number: 60018
2
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
E/H (Military M/D55342)
www.vishay.com
Vishay Dale Thin Film
DERATING
Percent of Rated Wattage
100
80
60
40
20
0
-75
-50
-25
0
25
50
75
100
125
150
175
Ambient Temperature °C
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: M55342E06B1C00RTS
M
5
5
3
4
2
E
0
6
B
1
C
0
0
R
T
S
V
GLOBAL
TCR
MODEL CHARACTERISTIC
M55342
or
D55342
(/07 size
only)
E
= 25 ppm/°C
H
= 50 ppm/°C
K
= 100 ppm/°C
L
= 200 ppm/°C
M
= 300 ppm/°C
CASE
SIZE
01
= 0502
02
= 0505
03
= 1005
04
= 1505
05
= 2208
06
= 0705
07
= 1206
08
= 2010
09
= 2512
10
= 1010
11
= 0402
12
= 0603
TERMINATION
B
= Solderable
OHMIC VALUE
FAILURE
RATE
PACKAGING
THIN FILM
CODE
(1)
Three digits and a letter. Letter
M
= 1.0 %
identifies tolerance, acts as per 1000 h
multiplier and decimal locator.
P
= 0.1 %
per 1000 h
MULTIPLIER
R
= 0.01 %
Tolerance 1
1 k 1 M per 1000 h
U
= 0.01 %
0.1 %
A
B
C
per 1000 h
(3)
0.25 %
R
U
V
S
= 0.001 %
per 1000 h
0.5 %
W
Y
Z
V
= 0.001 %
1%
D
E
F
per 1000 h
(3)
2%
G
H
T
C
= Non ER
version
5%
J
K
L
10 %
M
N
P
Standard Packaging:
V
BS
= BULK
for
100 min., 1 mult
K, L and M
WS
=WAFFLE
TCR
100 min., 1 mult
W/tolerance
W0
=WAFFLE
1%
100 min.,100 mult
M
= Part
TAPE AND REEL
marked
(2)
T0
= 100 min., 100 mult
T1
= 1000 min., 1000 mult
T3
= 300 min., 300 mult
T5
= 500 min., 500 mult
TF
= Full reel ( 2K, 4K, or
5K dependent on case
size ) per tape and reel
document 60034
TS
= 100 min., 1 mult
Special Packaging:
WAFFLE
WI
= 100 min., 1 mult
(item single lot date code)
WP
=100 min., 1 mult
(package unit single lot
date code)
TAPE AND REEL
TI
= 100 min., 1 mult
(item single lot date code)
TP
= 100 min., 1 mult
(package unit single lot
date code)
5E60
R
FAILURE RATE
Historical Part Number example: M55342K06B5E60R (for reference purposes only)
M55342
SERIES
K
TCR
CHARACTERISTIC
06
CASE SIZE
B
TERMINATION
VALUE AND
TOLERANCE
Notes
(1)
Only add a V at the end of part number to specify Vishay Dale Thin Film for K, L and M TCR and tolerance 1 % and higher.
(2)
Option 1 marking only. Case sizes 01, 02, 11, and 12 not available due to size.
(3)
Failure Rate U and V require Group A and B testing on a Production Lot Basis.
Revision: 15-Jul-16
Document Number: 60018
3
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of
typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding
statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a
particular product with the properties described in the product specification is suitable for use in a particular application.
Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over
time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.
Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for
such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document
or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
Revision: 13-Jun-16
1
Document Number: 91000
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Household harmful gas alarm circuit

Resistor-Voltage Conversion Circuit

Installation diagram of electric water distillation device with water cutoff protection circuit

555 household appliance protector circuit

Motor PWM speed regulation circuit

Computer motherboard circuit diagram 440LX2_14

Question: error: linking files for incompatible targets??
[i=s] This post was last edited by dontium on 2015-1-23 12:43 [/i] I built a project myself, and the compilation of a single file can be passed, but after linking, the following error occurs:[Linking....
虾段 Analogue and Mixed Signal
PXA270 driver for CF host port
The processor of the development board is PXA270. Now I want to install a CF wireless network card (NETGEAR MA701) on the board. Because the board is made by myself, I need to modify the interface dri...
yilingtang Embedded System
MSP430 MCU power switch sleep and wake-up program
Power switch sleep and wakeup: #include "msp430x42x.h" char TimeCount=0; //Blink timing char BT_IntervalFlag; //Timer interrupt global variable flag void main( void ) { DTCTL=WDTPW+WDTHOLD; //Stop wat...
fish001 Microcontroller MCU
SCI interrupt always can't enter
I spent the whole morning today and found that I couldn't enter the SCI interrupt program. The final solution was to re-read TI's SCI module manual and found that I had not set an enable bit, which ca...
安_然 Microcontroller MCU
Design and implementation of power measurement module
Design and implementation of power measurement module (Hardware design and implementation of power measurement module) Requirements: Design a module that can measure 8-way power (within 1Kw) with a si...
ffybl27 MCU
Book search: A practical guide to hardware-software collaborative design of embedded systems
Does anyone have an electronic version of "A Practical Guide to Embedded System Hardware and Software Co-design Based on Xilinx Zynq"? Can you share it?...
dell_00 FPGA/CPLD
Shortcut:   00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components

  1. JTP02RP-18-30PC(023)
  2. LTC3873EDDB-5#TRPBF
  3. HDSM2-200SL8D1-0.5
  4. 240-383JZN21-11PPPCNN
  5. ROX150301KFKEEN
  6. WW3A23.20.1%R
  7. MLW3025-E1D-1F
  8. SIP-4789-11-1822FB
  9. BD845YT
  10. MMBT4401_R1_00001
  11. MMBZ5260BT/R13
  12. A3502WR-6P

Popular Articles

  1. New sensor evaluation board from Bosch - for rapid prototyping and faster development
  2. STM8L firmware burning encryption process
  3. Charging in 5 minutes and reaching 200+ kilometers of battery life, is electric vehicle supercharging technology a gimmick or black technology?
  4. Focusing on the development of high-precision 3D cameras, Zhixiang Optoelectronics completed a round B financing of tens of millions of yuan
  5. Ready to use: NVIDIA and VMware deliver AI at scale for the enterprise
  6. STM8 microcontroller triggers ADC synchronous sampling via PWM
  7. Bluetooth Technology Helps Improve Healthcare Operations and Patient Care
  8. SK Hynix: Industry's first 24GB DDR5 memory sample
  9. Samsung and others are investing heavily in system semiconductors to expand non-memory businesses
  10. Analysis of the application of voltage clamp circuit in automobile electrical system

Technical ResourceMore

  1. Relay comprehensive parameter detection principle
  2. MDK routine transplantation based on S3C2410
  3. SDRAM Design Detailed Description
  4. Relationship between PCB shielding method and shielding effectiveness
  5. New IP tracking method using Raw IP
  6. IRFR_U3910 pdf
  7. Linux open source operating system
  8. CYCLONE 3C120 circuit diagram
  9. Design of C-band Ceramic Resonant Oscillator
  10. Design of 100BASE-TX Industrial Ethernet Repeater Based on FPGA

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 616  851  1642  765  1336  13  18  34  16  27
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
