BY133 Overview

1 A, 1300 V, SILICON, SIGNAL DIODE, DO-41

Preview

Download Datasheet

View All

CHENYI ELECTRONICS

BY127,BY133,EM513,EM516

GENERAL PURPOSE PLASTIC RECTIFIER

Reverse Voltage - 1250 to 1800 Volts

Forward Current - 1.0Ampere

FEATURES

. The plastic package carries Underwrites Laboratory

Flammability Classification 94V-0

. Construction utilizes void-free molded plastic technique

. Low reverse leakage

. Low forward voltage drop

. High forward surge current capability

. High current capability

. High reliability

MECHANICAL DATA

Case:

JEDEC DO-41 molded plastic body

Terminals:

lead solderable per MIL-STD-750,method 2026

Polarity:

Color band denotes cathode end

Mounting Position:

Any

Weight:

0.012 ounce, 0.33 gram

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(Ratings at 25

ambient temperature unless otherwise specified,Single phase,half wave 60Hz,resistive or inductive)

load. For capacitive load,derate by 20%)

Symbols

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Macimum average forward rectified

current 0.375"(9.5mm)lead length at

=75

Peak forward surge current 8.3ms

sing-wave superimposed on rated load

(JEDEC method)

=75

Maximum instantaneous forward voltage at 1.0 A

Maximum reverse

current at rated DC blocking voltage

Typeical thermal resistance(Note 2)

Typical junction Capacitance(Note 1)

Operating and storage temperature range

TA=25

TA=100

FSM

RRM

RMS

(AV)

BY127

1250

875

1250

BY133

1300

930

1300

1.0

EM513

1600

1120

1600

EM516

1800

1270

1800

Units

Volts

Amp

30.0

Amps

1.1

5.0

Volts

200.0

50.0

25.0

15.0

-50 to +150

STG

Notes:

1. Measured at 1MHz and applied reverse voltage of 4.0V DC

2.Thermal resistance from juntion to ambient and from junction lead at 0.375"(9.5mm)lead length,

P.C.B. Mounted

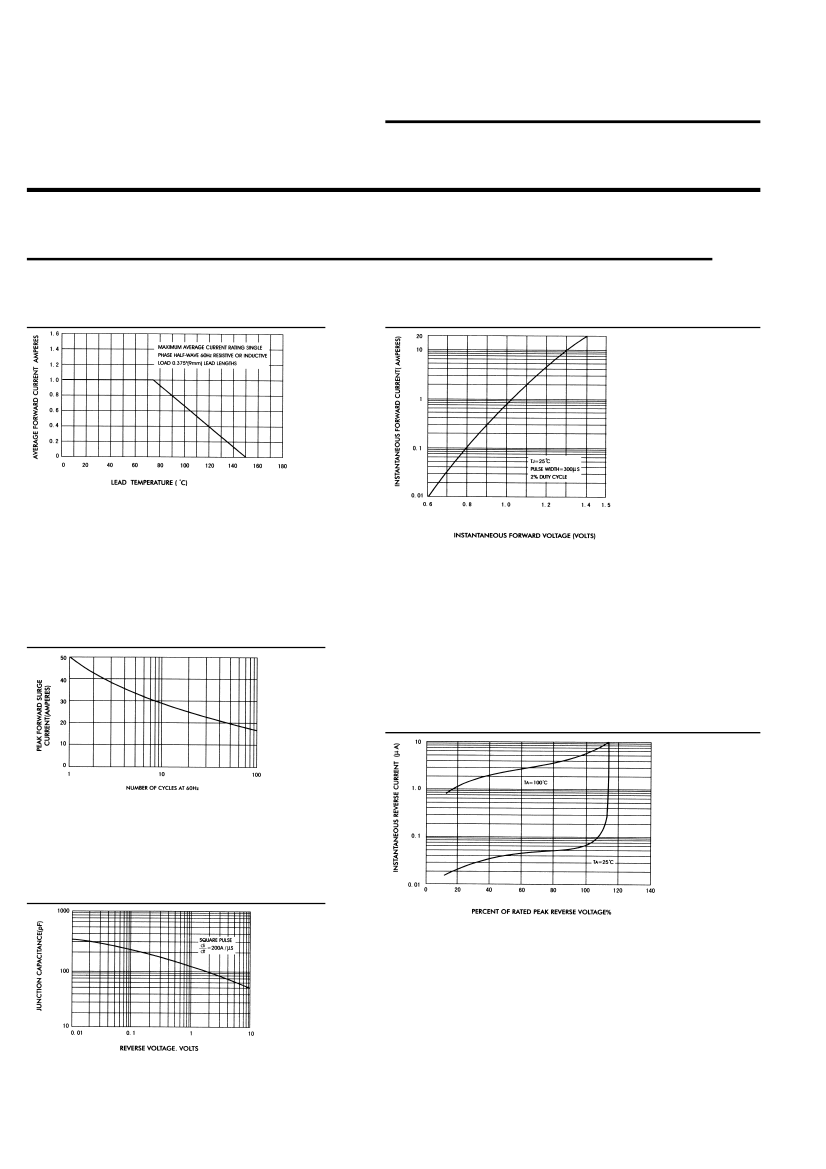

Page 1　　½½　　２
