20 dB Fixed Attenuator, BNC Male To BNC Female Aluminum
Heatsink Black Anodized Body Rated To 10 Watts Up To 2 GHz
TECHNICAL DATA SHEET
PE7025-20
20 dB Fixed Attenuator, BNC Male To BNC Female Aluminum Heatsink Black Anodized Body Rated To
10 Watts Up To 2 GHz
Configuration
Design
Connector 1
Connector 2
Body Material and Plating
Fixed, Bidirectional Attenuator
BNC Male
BNC Female
Aluminum Heatsink, Black Anodized
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Attenuation Value, dB
Maximum Input Power, Watts
Maximum VSWR
Frequency 1
Range, MHz
VSWR
Attenuation Accuracy, dB
Frequency 2
Range, GHz
VSWR
Attenuation Accuracy, dB
DC to 2
50
20
10
1.6:1
DC to 1,000
1.3:1
± 0.6
1 to 2
1.6:1
±1
Mechanical Specifications
Size
Length, in [mm]
Width, in [mm]
.
2.61 [66.29]
1 [25.4]
Connector 1
Type
Connector Specification
Contact Material and Plating
Coupling Nut Material and Plating
Body Material and Plating
BNC Male
MIL-STD-348
Gold
Brass, Nickel
Brass, Nickel
Connector 2
Type
Connector Specification
Contact Material and Plating
BNC Female
MIL-STD-348
Gold
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
20 dB Fixed Attenuator, BNC Male To BNC Female Aluminum Heatsink Black Anodized Body
Rated To 10 Watts Up To 2 GHz PE7025-20
PE7025-20 REV
1
20 dB Fixed Attenuator, BNC Male To BNC Female Aluminum
Heatsink Black Anodized Body Rated To 10 Watts Up To 2 GHz
TECHNICAL DATA SHEET
Body Material and Plating
Brass, Nickel
PE7025-20
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
20 dB Fixed Attenuator, BNC Male To BNC Female Aluminum Heatsink Black Anodized Body Rated To 10 Watts Up To 2 GHz
from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic
products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
20 dB Fixed Attenuator, BNC Male To BNC Female Aluminum Heatsink Black Anodized Body
Rated To 10 Watts Up To 2 GHz PE7025-20
URL:
http://www.pasternack.com/20db-fixed-bnc-female-bnc-male-10-watts-attenuator-pe7025-20-p.aspx
PE7025-20 REV
2
© 2013 Pasternack Enterprises All Rights Reserved
P/N
ATTEN.
FIGURE
FIGURE 1
PE7025-20

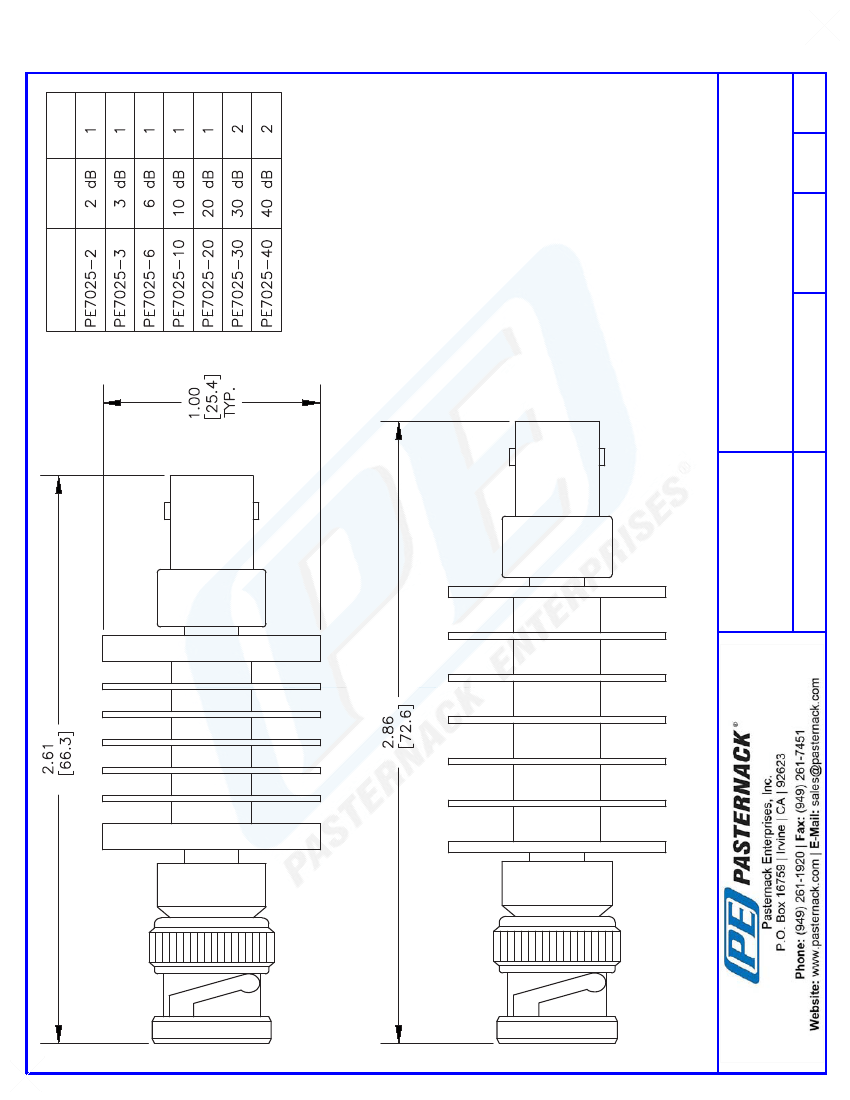

CAD Drawing
20 dB Fixed Attenuator, BNC Male To BNC Female Aluminum Heatsink
Black Anodized Body Rated To 10 Watts Up To 2 GHz
PE7025-20 REV
BNC MALE
FIGURE 2
DWG TITLE
BNC FEMALE
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
PE7025
FSCM NO. 53919
CAD FILE
022613
SCALE N/A
SIZE A
2231
3
