LQH5BPZ3R3NT0K

Description
Inductance
File Size84KB,2 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Download Datasheet Compare View All

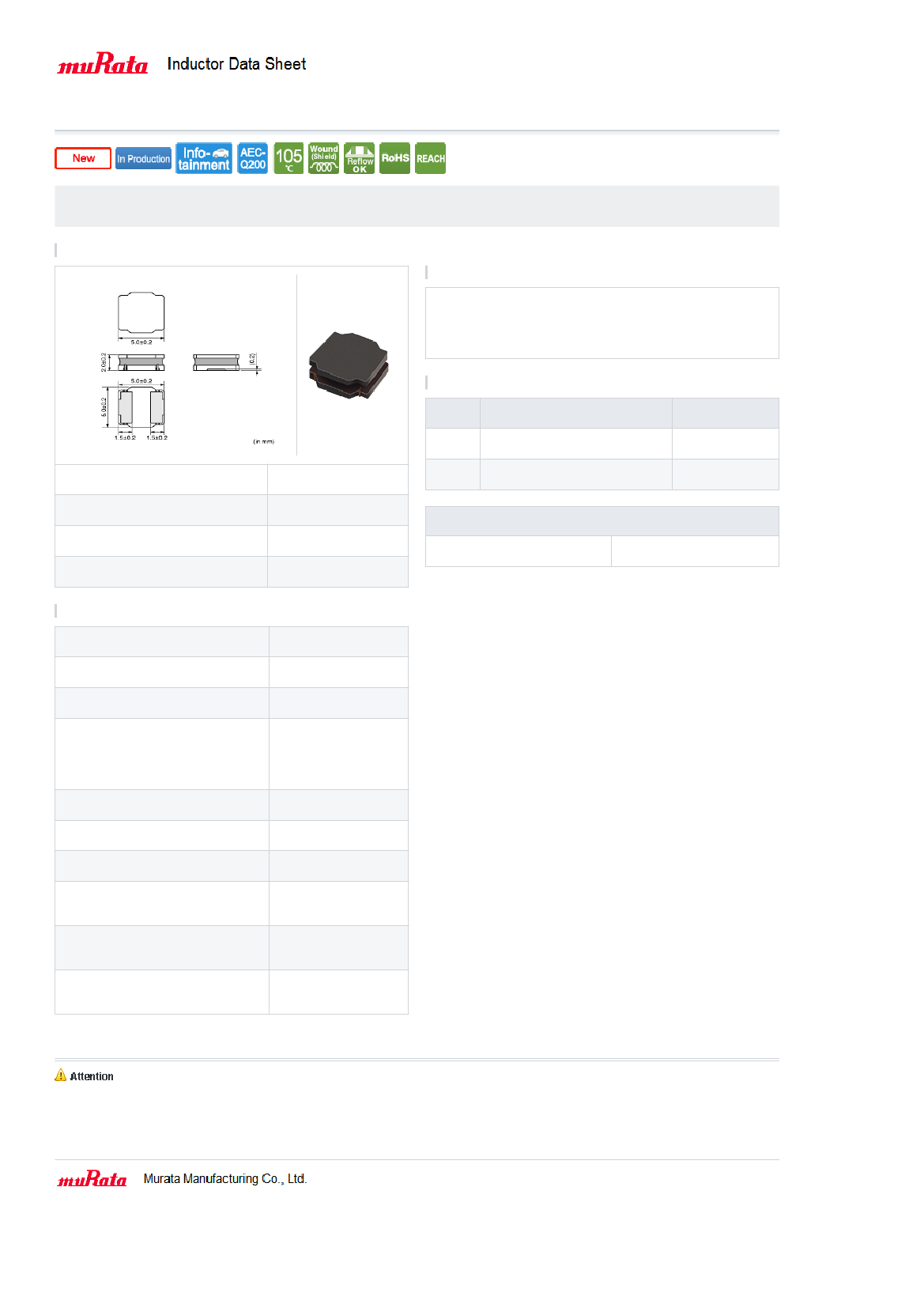

LQH5BPZ3R3NT0K Overview

Inductance

LQH5BPZ3R3NT0#
# indicates a package specification code.
< List of part numbers with package codes >
LQH5BPZ3R3NT0L , LQH5BPZ3R3NT0K
Shape
Notes
When applied Rated current to the Products, Inductance will be within ±30% of
initial Inductance value.
When applied Rated current to the Products , self temperature rise shall be limited
to 40℃ max.
Keep the temperature(ambient temperature plus self-generation o½ heat)
under 125℃
References
Packaging
code
Specifications
φ180mm Embossed taping
φ330mm Embossed taping
Minimum quantity
500
3000
L size
W size
T size
Size code in inch (mm)
5.0 ±0.2mm
5.0 ±0.2mm
Mass (Typ.)
2.0 ±0.2mm
1 piece
2020 (5050)
0.22g
Specifications
Inductance
Inductance test frequency
Rated current (Isat) (Based on Inductance change)
3.3µH ±30%
100kHz
3.5A
2.3A(Ambient temperature
85℃)
1.21A(Ambient temperature
105℃)
0.0528Ω
0.044Ω±20%
40MHz
Rated current (Itemp) (Based on Temperature rise)
Max. of DC resistance
Avg. of DC resistance
Self resonance frequency (min.)
Operating temperature range (Self-temperature
rise is included)
Operating temperature range (Self-temperature
rise is not included)
-40∼125℃
-40∼105℃
Class of magnetic shield
Magnetic shield of magnetic
powder in resin

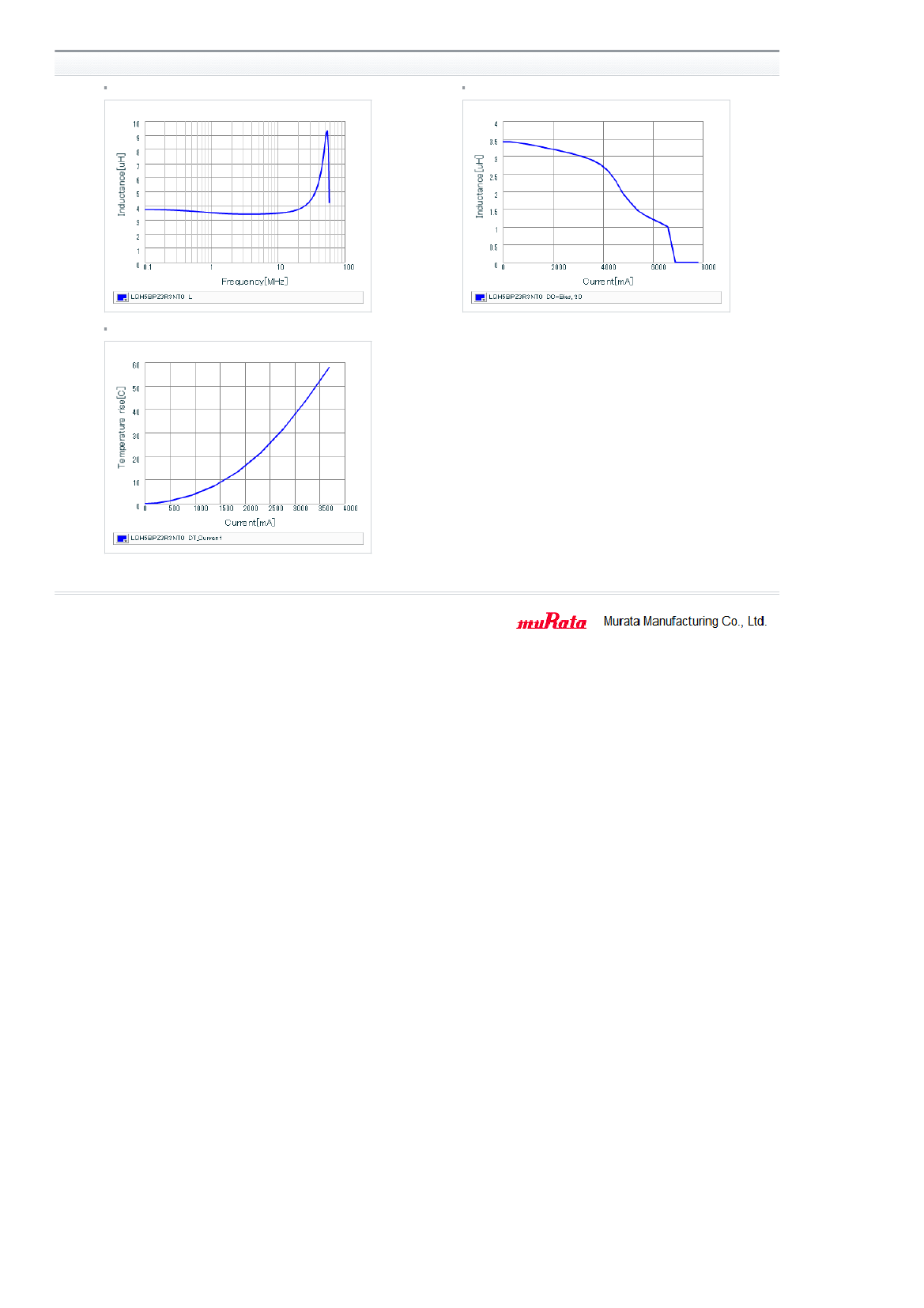

1 of 2
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : http://www.murata.com/
Last updated: 2016/04/21
