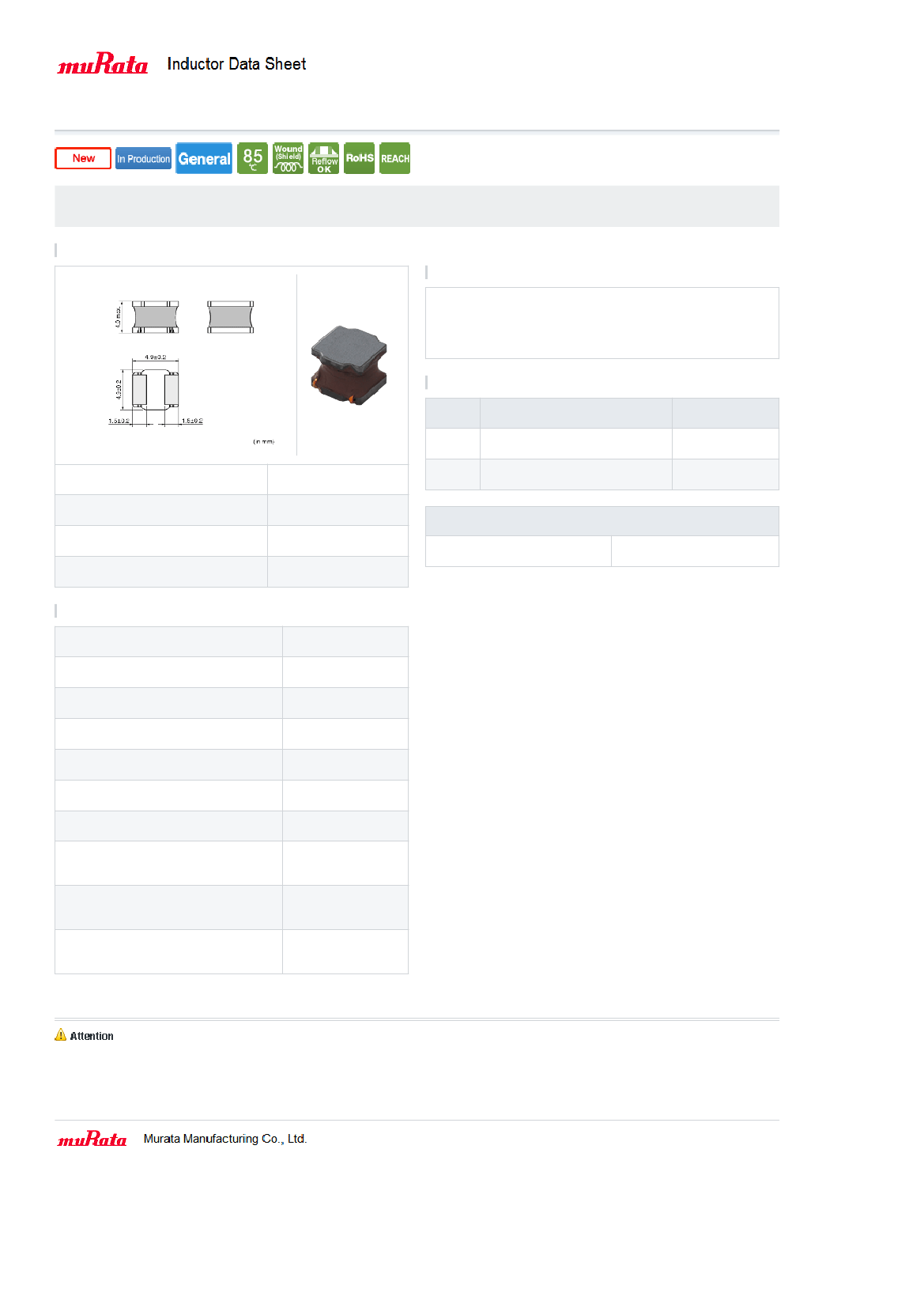

LQH5BPN680M38K Overview

Inductance

LQH5BPN680M38#
# indicates a package specification code.
< List of part numbers with package codes >
LQH5BPN680M38L , LQH5BPN680M38K
Shape
Notes
When applied Rated current to the Products, Inductance will be within ±30% of
initial inductance value range.
When applied Rated current to the Products, temperature rise caused by
self-generated heat shall be limited to 40℃ max.(Ambient temperature 85℃).
Keep the temperature (ambient temperature plus self-generation of heat) under
125℃.
References
Packaging
code
Specifications
φ180mm Embossed taping
φ330mm Embossed taping
Minimum quantity
400
1500
L size
W size
T size
Size code in inch (mm)
4.9 ±0.2mm
4.9 ±0.2mm
Mass (Typ.)
4.0mm max.
1 piece
2020 (5050)
0.35g
Specifications
Inductance
Inductance test frequency
Rated current (Isat) (Based on Inductance change)
Rated current (Itemp) (Based on Temperature rise)
Max. of DC resistance
Avg. of DC resistance
Self resonance frequency (min.)
Operating temperature range (Self-temperature rise
is included)
Operating temperature range (Self-temperature rise
is not included)
68µH ±20%
100kHz
900mA
930mA
0.396Ω
0.33Ω±20%
5.0MHz
-40∼125℃
-40∼85℃
Class of magnetic shield
Magnetic shield of magnetic
powder in resin
1 of 2
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : http://www.murata.com/
Last updated: 2016/04/21
