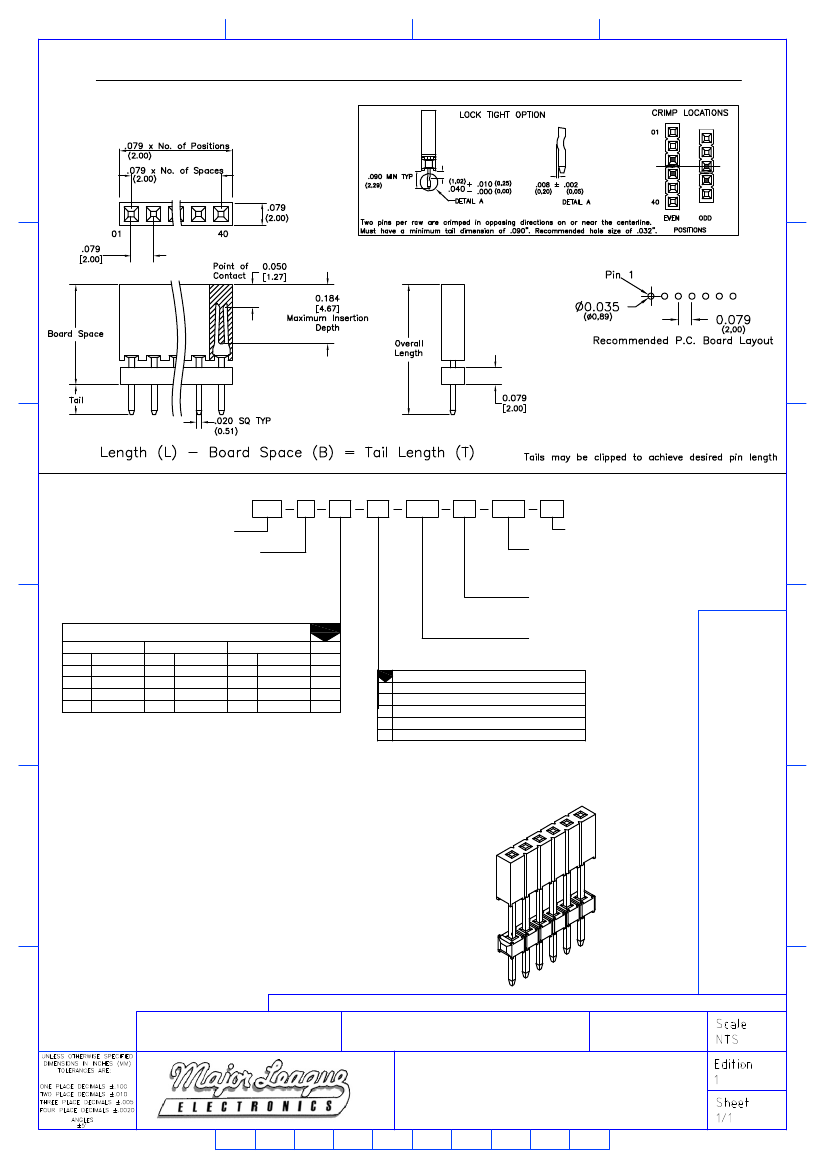

Major League Electronics .079 cl Board Stacker Socket Strips - Custom - using .020"sq. pins
Ordering Information
BSSQC-2
XX
01 - 40
S
XX
XX
XXX
XX
XXX
LF
Lead Free
Leave blank if not needed
If required, specify empty pin position, e.g. 012 for Pin 12
Pins Per Row
Row Specification
S = Single Row
Polarized Position
Leave blank if not needed
LT = With
Lock Tight "LT" Option
Pin Options
Overall Length
10.52mm
.414
11.63mm
.458
13.56mm
.534
17.58mm
.692
21.59mm
.850
Max. Tail length
2.64mm
.104
3.76mm
.148
5.69mm
.224
9.70mm
.382
13.72mm
.540
Max. Board Space
9.25mm
.364
10.36mm
.408
12.29mm
.484
16.31mm
.642
20.32mm
.800
04
05
06
07
08
Please specify
e.g. .100 (2.54) = 100
Desired Board Space
Plating Options
G
T
GT
H
F
10µ Gold on Contact Area / Flash on Tail
Matte Tin All Over
10µ Gold on Contact Area / Matte Tin on Tail
30µ Gold on Contact Area / Matte Tin on Tail
Gold Flash over Entire Pin
Specifications
Insertion Force - Single Contact only - H Plating:
4oz. (1,11N) avg with .079 (2,00mm) sq. pin
Withdrawal Force - Single Contact only - H Plating:
3oz. (0,83N) avg with .079 (2,00mm) sq. pin
Current Rating: 2.0 Ampere
Insulation Resistance: 1000MΩ Min.
Dielectric Withstanding: 500V AC
Contact Resistance: 10 mΩ Max.
Operating Temperature: -40°C to + 105°C
Max. Process Temperature:
Peak: 260°C up to 10 secs.
Process: 230°C up to 60 secs.
Wave: 260°C up to 6 secs.
Manual Solder: 350°C up to 5 secs.
Materials
Contact Material: Phosphor Bronze
Insulator Material: Nylon 6T
Plating: Au or Sn over 50µ" (1,27) Ni
Mates with:
BSTC,
BSTCM,
BSTCR,
BSTCRSM,
BSTS,
TBSTC,
TBSTCM,
TBSTS,
TBSTCM,
TBSTS,
TSHC,
TSHCR,
TSHCRE,
TSHCRSM,
TSHR,
TSHRE,
TSHS,
TSHSCM,
TTSHC,
TTSHCR,
TTSHCRE,
TTSHR,
TTSHRE,
TTSHS,
TTSHSM
Products cut to specific sizes are uncancellable/nonreturnable
Parts are subject to change without notice
BSSQC-2-S SERIES
.079cl Board Stacker Socket Strips
19 FEB 07
4235 Earnings Way, New Albany, Indiana, 47150, USA
1-800-782-3486 (USA/Canada/Mexico)
Tel: 812-944-7244
Fax: 812-944-7268
E-mail: mle@mlelectronics.com
Web: www.mlelectronics.com
