ZRL-2400LN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZRL-2400LN

ZRL-2400LN: DescriptionLow Noise Amplifier 50з 1000 to 2400 MHz; CategoryWireless rf/communication Radio frequency and microwave; File Size146KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric View All

ZRL-2400LN Overview

Low Noise Amplifier 50з 1000 to 2400 MHz

ZRL-2400LN Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
package instruction	CASE FJ893
Reach Compliance Code	unknow
Other features	SMA
Characteristic impedance	50 Ω
structure	COAXIAL
Gain	23 dB
Maximum input power (CW)	10 dBm
JESD-609 code	e0
Number of functions	1
Maximum operating frequency	2400 MHz
Minimum operating frequency	1000 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	MODULE(UNSPEC)
power supply	12 V
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.35

Preview

Download Datasheet

View All

High IP3

Low Noise Amplifier

50Ω

1000 to 2400 MHz

Features

•

high IP3, +45 dBm typ.

low noise figure, 1.2 dB typ.

broadband flat gain response

internal voltage regulated

over voltage and transient protected

very low noise

high dynamic range

PCS, UMTS, GSM , cellular, wireless data

defense communications

satellite communications

EW!

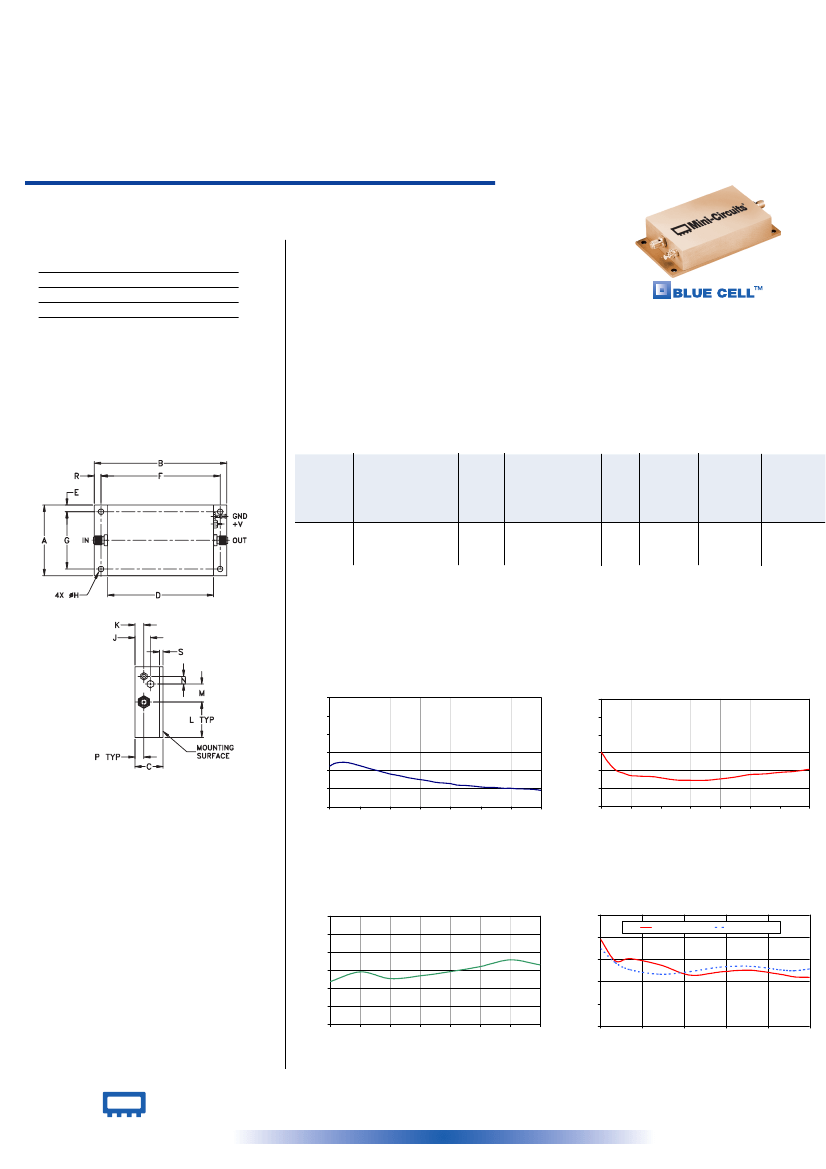

ZRL-2400LN

Maximum Ratings

Operating Temperature

Storage Temperature

DC Voltage

-40°C to 80°C case

-40°C to 60°C ambient

-55°C to 100°C

+17V max.

CASE STYLE: FJ893

PRICE: $139.95 ea. QTY (1-9)

Applications

Outline Drawing

FREQ.

RANGE

(MHz)

- f

1000-2400

1000-1400

1400-1900

1900-2400

Electrical Specifications (T

AMB

=25°C)

GAIN

(dB)

Flatness

Typ. Min.

Typ.

±1.6

±1.8

±1.0

Max. Typ. Max.

±2.0

±2.2

±2.0

1.2

1.0

1.2

2.0

1.4

NOISE MAXIMUM POWER

(dBm)

FIGURE

(dB)

Output

(1 dB Comp.)

Typ. Min.

Input

(no

damage)

+10

INTER-

CEPT

POINT

IP3

dBm

Typ.*

VSWR

(:1)

Typ.

1.50

1.15

1.20

Out

1.35

1.25

1.30

DIRECTIVITY

(dB)

POWER

Max.

Volt

Current

Typ. (mA)

500

550

Typ.

* 1MHz tone spacing

Other voltages available in the 6.5 to 17V range, please contact factory.

ZRL-2400LN

GAIN

NOISE FIGURE (dB)

GAIN (dB)

3.0

2.5

2.0

1.5

1.0

0.5

0.0

1000

ZRL-2400LN

NOISE FIGURE

Outline Dimensions (

inch

)

2.00 3.75

.80 3.00

50.80 95.25 20.32 76.20

.26 1.00

.51

6.60 25.40 12.95

.22

5.59

.19 3.374 1.624

4.83 85.70 41.25

.26

6.60

—

.19

4.83

.156

.44

3.96 11.18

wt.

.10 grams

2.54

135

1000

1200

1400

1600

1800

2000

2200

2400

1200

1400

1600

1800

2000

2200

2400

FREQUENCY (MHz)

ZRL-2400LN

IP3

IP3 (dBm)

1000

VSWR

2.5

ZRL-2400LN

VSWR

INPUT

2.0

1.5

1.0

0.5

0.0

1000

OUTPUT

1200

1400

1600

1800

2000

2200

2400

1280

1560

1840

2120

2400

FREQUENCY (MHz)

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

ISO 9001 & ISO 14001

Certified

REV. E

M92817

ZRL-2400LN

EDB020608

BLUEC/TD/CP

040826
