B39765B1730H810 datasheet, PDF

B39765B1730H810: DescriptionSAW Components SAW IF filter; CategoryAnalog mixed-signal IC filter; File Size103KB，10 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric View All

B39765B1730H810 Overview

SAW Components SAW IF filter

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TDK Corporation
package instruction	ROHS COMPLIANT, CERAMIC, SMD, QCC12E, 12 PIN
Reach Compliance Code	compli
Other features	INSERTION LOSS INCLUDING LOSS IN MATCHING NETWORK
Center frequency or cutoff frequency (fo/fc)	76.5 MHz
filter type	SAW FILTER
high	1.33 mm
input resistance	11 OHM
Maximum insertion loss	16.2 dB
JESD-609 code	e4
length	7 mm
Manufacturer's serial number	B1730
Installation type	SURFACE MOUNT
Number of functions	1
Number of terminals	12
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Output impedance	180 OHM Ω
Packaging Materials	CERAMIC
physical size	L7.0XB5.0XH1.33 (mm)/L0.276XB0.197XH0.052 (inch)
Terminal surface	Nickel/Gold (Ni/Au)

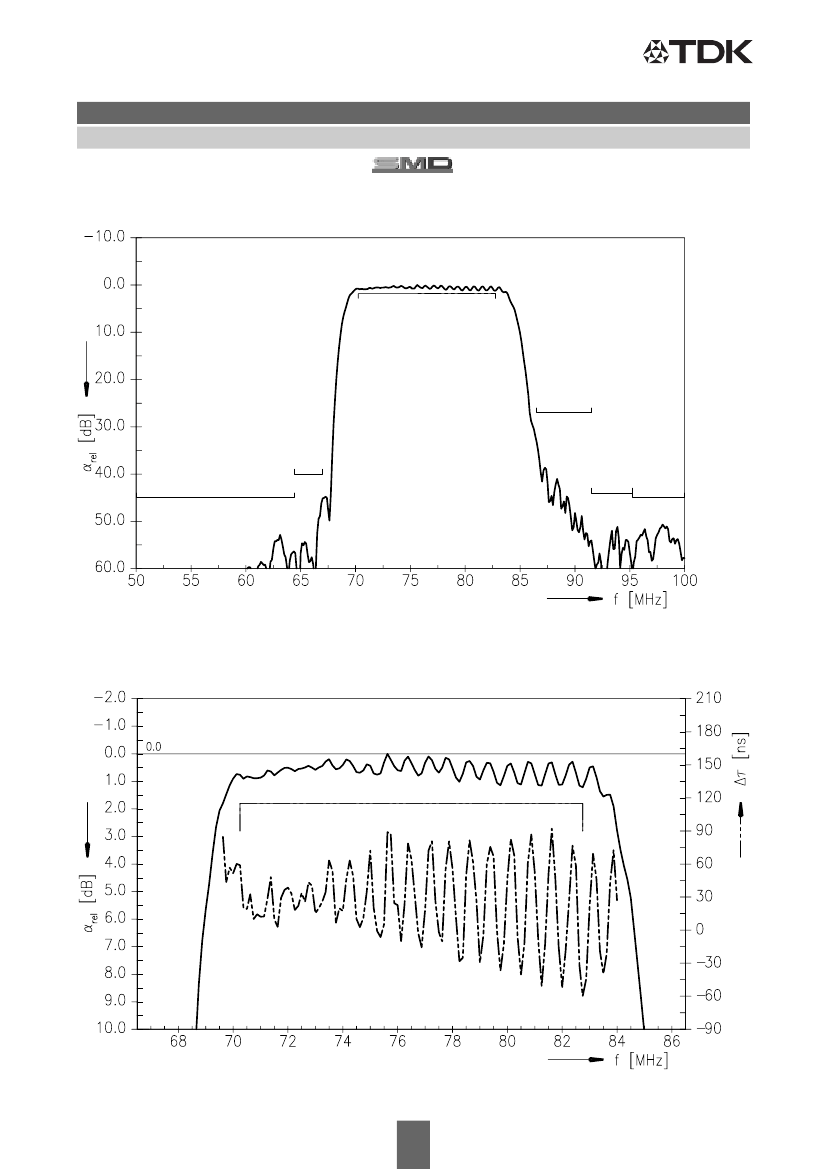

SAW Components

SAW IF filter

Satellite radio

Series/type:

Ordering code:

Date:

Version:

B1730

B39765B1730H810

December 21, 2012

2.2



EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information

contained therein without EPCOS' prior express consent is prohibited.

EPCOS AG is a TDK Group Company.
