2 Watts WR-112 RF Load Up To 10 GHz
TECHNICAL DATA SHEET
2 Watts WR-112 RF Load Up To 10 GHz
Configuration
Connector
Heat Sink
WR-112
Aluminum
PE6808
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Maximum Input Power, Watts
7.05 to 10
50
1.2:1
2
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
1.28 [32.51]
1.875 [47.63]
1.875 [47.63]
Connector
Type
WR-112
Compliance Certifications
(visit www.Pasternack.com for current document)
Plotted and Other Data
Notes:
Values at 25 °C, sea level
2 Watts WR-112 RF Load Up To 10 GHz from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
2 Watts WR-112 RF Load Up To 10 GHz PE6808
URL:
http://www.pasternack.com/waveguide-termination-frequency-range-705-1000-ghz-pe6808-p.aspx
PE6808 REV
1
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE6808

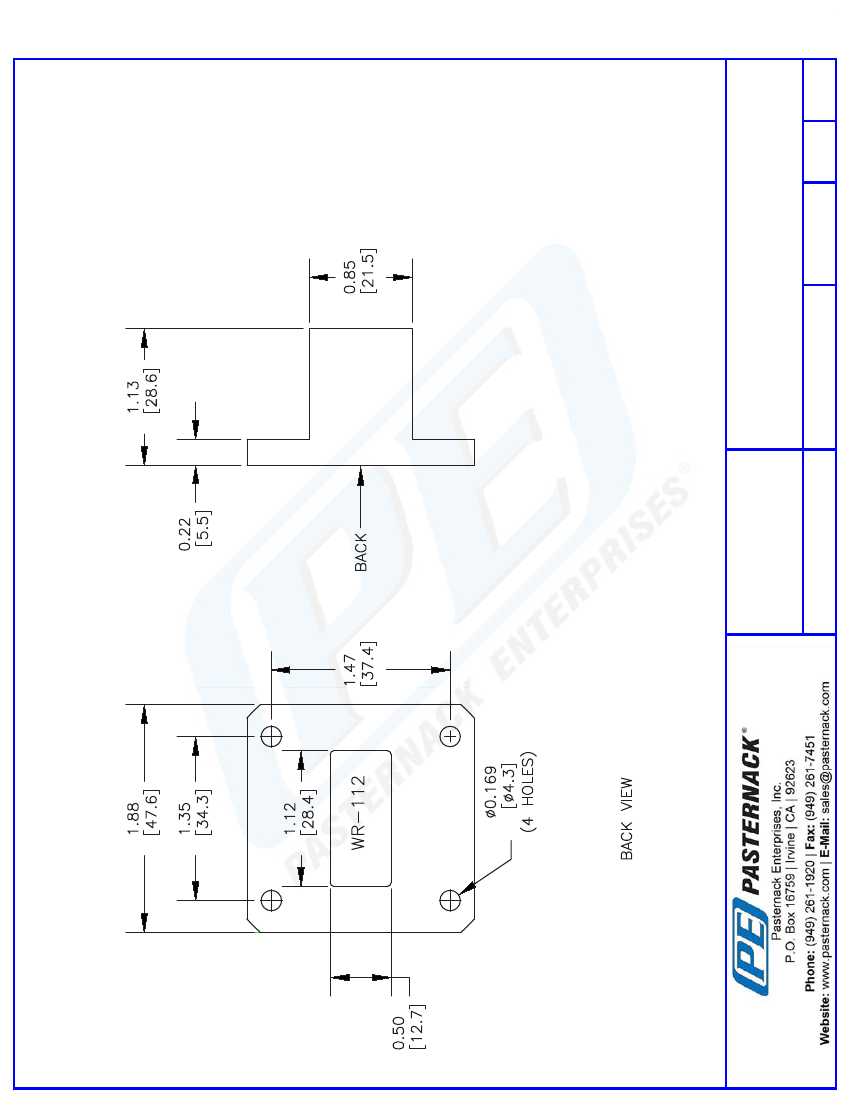

CAD Drawing
2 Watts WR-112 RF Load Up To 10 GHz
PE6808 REV
PE6808
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
CAD FILE
032404
SCALE N/A
SIZE A
XXXX
2
