6
5
4
3
2
1
D
USB Insulator
(Portion 2)
USB Insulator
(Portion 1)
USB Metal Shell
(Portion 2)
Cable Fitting
Plastic Version
USB Type A
Plug Housing
Plastic Version
D
17.90 REF.
USB Metal Shell
(Portion 1)
Coupling Ring
Plastic Version
M28 Thread Screw Type
M28 Thread
C
n
34.50
23.20
C
Interfacial Seal
Notes:
B
1. Electrical Specifications:
- Meets USB 2.0 Specification
- Contact Resistance: 30 mOhm max.
- Insulation Resistance: 1000 MOhm min. @ 100 VDC
- Current Rating: 1.5 A max. at 25
~
C
- Working Voltage: 30 V (RMS) max.
- DWV: 500 VAC/60s at sea Level
- Operating Temperature: -40
~
C to +85
~
C
2. Material and Finish:
- Coupling Ring and Plug Housing: Polyester (Black),
UL94 V-0
- Interfacial Seal: Silicone, Color: White
- Cable Fitting: PA (Black), UL94 V-0
- Cable Fitting Rubber Ring: NBR, Color: Black
- USB Metal Shell: SPCC, Nickel Plated
- USB Insulator: PBT, UL94 V-0, White
- USB Contacts: Copper Alloy,
- USB Contact Finish: 30 u" Gold min. over Nickel for mating area, Tin over Nickel for solder cup
3. USB Type A Plug accepts AWG28 to AWG24 wires, Cable with outer Diameter of 4.06 mm to 5.21 mm
4. Cable Fitting accepts Cable Outer Diameter Range of 4 mm to 8 mm
5. RoHS compliant
61.80 REF.
18.9 REF.
HEX FLATS
B
Directive 2002/95/EC
"RoHS"
Compliant
THIS DRAWING MAY NOT BE COPIED OR REPRODUCED
IN ANY WAY, AND MAY NOT BE PASSED ON TO A THIRD
PARTY WITHOUT WRITTEN PERMISSION.
OWNERSHIP AND COPYRIGHT OF CONEC CORPORATION
DOT NOT ALTER CAD DRAWING BY HAND
Customer:
Name
Title
Approval Date
Unless otherwise specified
0 PLC
1 PLC
2 PLC
3 PLC
ANGLES
`
0.50
`
0.38
`
0.25
`
0.10
`
3
~
Tolerance
Scale: 1.5:1
Autodesk
Inventor
Name
Vincent Ke
J. Chaudry
Dim. in mm
Material: See Notes
Title:
2008
Draw.
Appd.
Norm
D-old
Date
Sept. 09
Sept. 09
IP67 USB
A
with Solder Cup USB 2.0 Type A plug
DIN
A

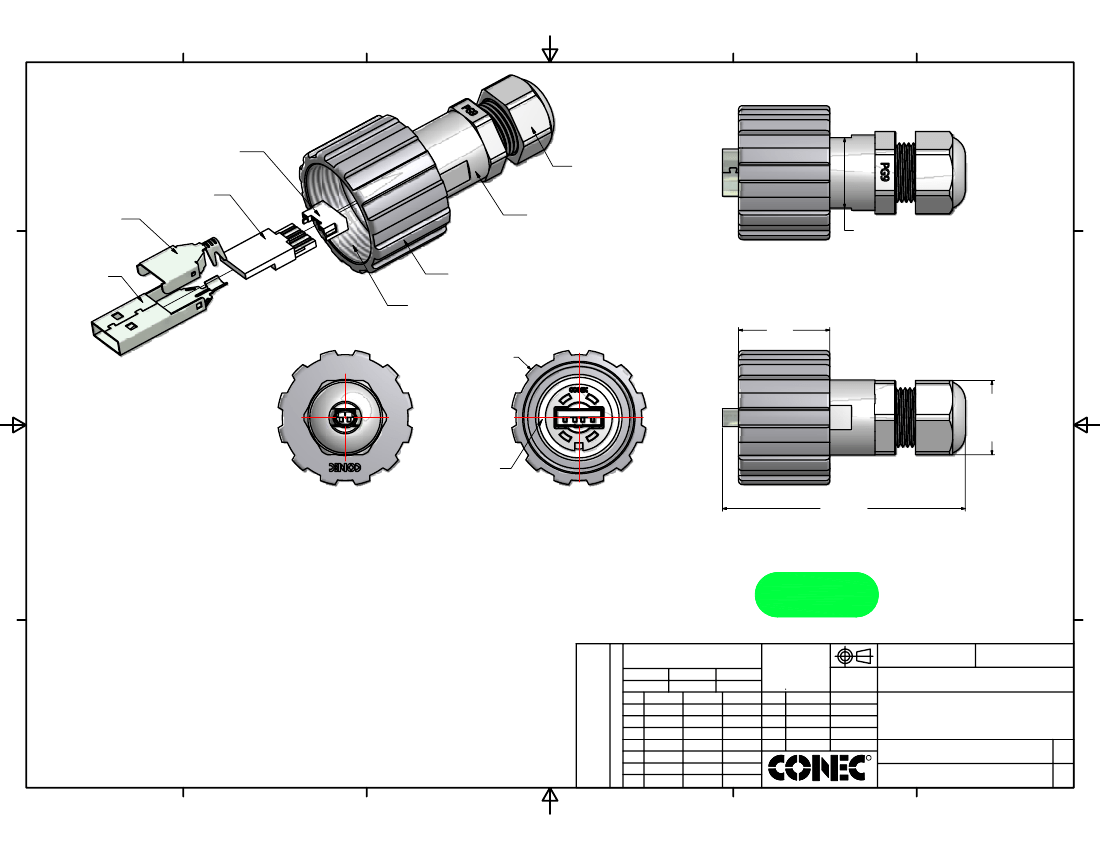

USB Cable Strain Relief Assembly Kit
Drawing No.: 17K1A009
Part No.: 17-200151
A3
Sheet
R
a
Rev.
original
Changes
Date
Name
1/1
6
5
4
3
2
1
