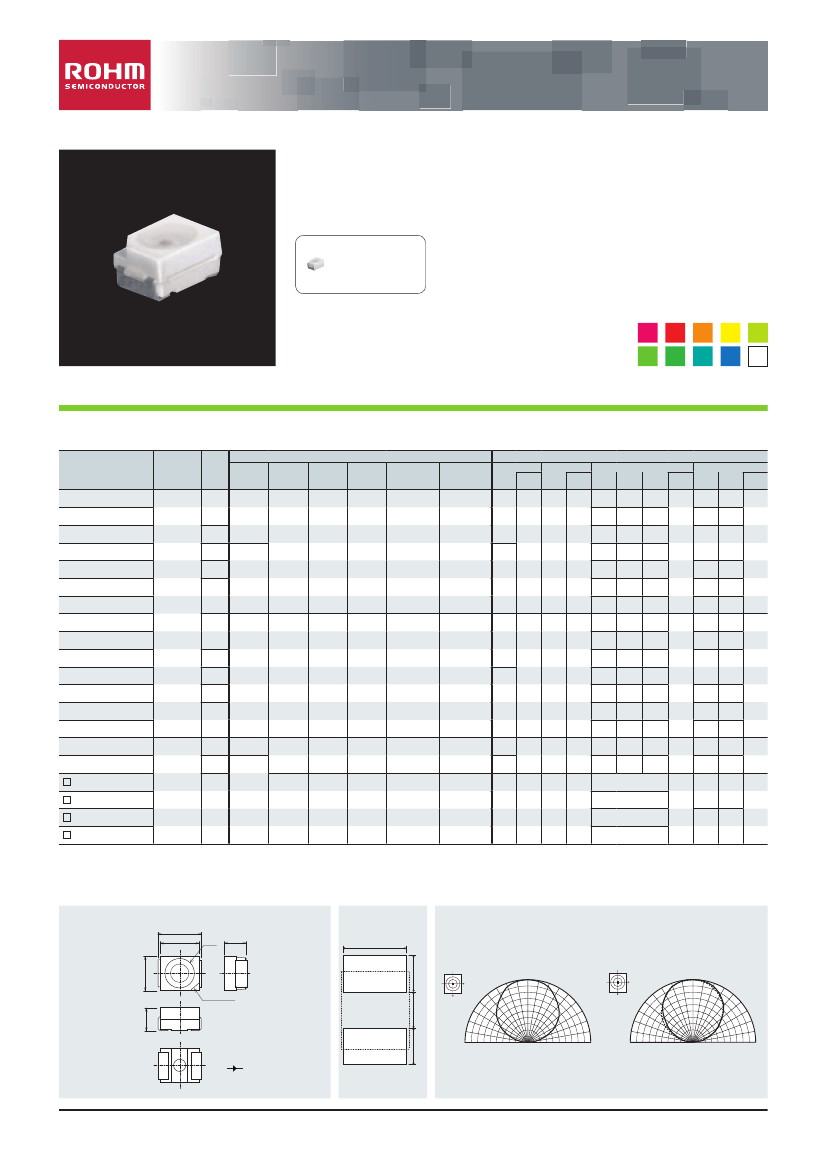

SML-Z1 Series

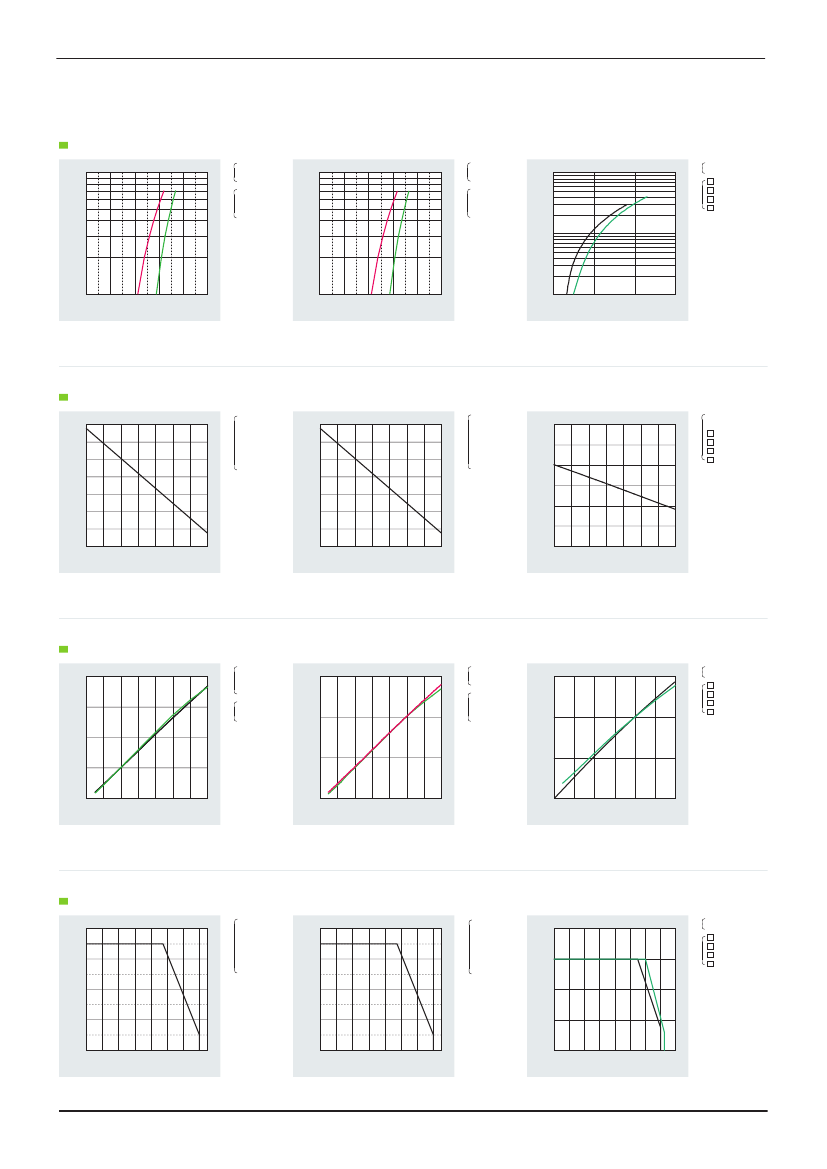

Electrical Characteristics Curves
Forward Current-Forward Voltage
100
FORWARD CURRENT：I
F
(mA)
Ta=25°C
■
■
FORWARD CURRENT：I
F
(mA)
FORWARD CURRENT：I
F
(mA)
■
SML-Z14VT(A)
■
SML-Z14UT(A)
■
SML-Z14DT(A)
■
SML-Z14YT(A)
■
SML-Z14MT(A)
■
SML-Z14FT(A)
■
SML-Z14PT(A)
100
Ta=25°C
■
■
■
SML-Z14V4T
■
SML-Z14U4T
■
SML-Z14D4T
■
SML-Z14Y4T
■
SML-Z14M4T
■
SML-Z14F4T
■
SML-Z14P4T
100
Ta=25°C
■
■
■
SMLZ14EGT(A)
■
SMLZ14BGT(A)
■
SMLZ14WBGAW(A)
■
SMLZ14WBGBW(A)
■
SMLZ14WBGCW(A)
■
SMLZ14WBGDW(A)
10
10
1.4
FORWARD VOLTAGE
：V
F
(V)
1.6
1.8
2.0
2.2
2.4
10
1.4
1.6
1.8
2.0
2.2
2.4
1
2.5
3.0
3.5
4.0
FORWARD VOLTAGE：V
F
(V)
FORWARD VOLTAGE：V
F
(V)
Luminous Intensity-Atmosphere Temperature
1.6
RELATIVE LUMINOUS INTENSITY (a.u.)
1.4
1.2
1.0
0.8
0.6
0.4
0.2
-40 -20
0
20
40
60
80 100
ATMOSPHERE TEMPERATURE：Ta (°C)
I
F
=20mA
■
RELATIVE LUMINOUS INTENSITY (a.u.)
1.4
1.2
1.0
0.8
0.6
0.4
0.2
-40
RELATIVE LUMINOUS INTENSITY (a.u.)
■
SML-Z14VT(A)
■
SML-Z14UT(A)
■
SML-Z14DT(A)
■
SML-Z14YT(A)
■
SML-Z14MT(A)
■
SML-Z14FT(A)
■
SML-Z14PT(A)
1.6
I
F
=50mA
■
■
SML-Z14V4T
■
SML-Z14U4T
■
SML-Z14D4T
■
SML-Z14Y4T
■
SML-Z14M4T
■
SML-Z14F4T
■
SML-Z14P4T
1.6
1.4
1.2
1.0
0.8
0.6
0.4
-40
I
F
=20mA
■
■
SMLZ14EGT(A)
■
SMLZ14BGT(A)
■
SMLZ14WBGAW(A)
■
SMLZ14WBGBW(A)
■
SMLZ14WBGCW(A)
■
SMLZ14WBGDW(A)
-20
0
20
40
60
80
100
-20
0
20
40
60
80
100
ATMOSPHERE TEMPERATURE：Ta (°C)
ATMOSPHERE TEMPERATURE：Ta (°C)
Luminous Intensity-Forward Current
4.0
RELATIVE LUMINOUS INTENSITY (a.u.)
Ta=25°C
■
RELATIVE LUMINOUS INTENSITY (a.u.)
3.0
■
■
1.0
RELATIVE LUMINOUS INTENSITY (a.u.)
■
SML-Z14VT(A)
■
SML-Z14UT(A)
■
SML-Z14DT(A)
■
SML-Z14YT(A)
■
SML-Z14MT(A)
■
SML-Z14FT(A)
■
SML-Z14PT(A)
1.5
Ta=25°C
■
■
SML-Z14V4T
■
SML-Z14U4T
■
SML-Z14D4T
■
SML-Z14Y4T
■
SML-Z14M4T
■
SML-Z14F4T
■
SML-Z14P4T
1.5
Ta=25°C
■
■
■
SMLZ14EGT(A)
■
SMLZ14BGT(A)
1.0
■
SMLZ14WBGAW(A)
■
SMLZ14WBGBW(A)
■
SMLZ14WBGCW(A)
■
SMLZ14WBGDW(A)
2.0
0.5
0.5
1.0
0
0
10
20
30
40
50
60
70
0
0
0
10
20
30
40
50
60
70
0
5
10
15
20
25
30
FORWARD CURRENT：I
F
(mA)
FORWARD CURRENT：I
F
(mA)
FORWARD CURRENT：I
F
(mA)
Derating
■
MAXIMUM FORWARD CURRENT：I
F
(mA)
80
70
60
50
40
30
20
10
0
-40
-20
0
20
40
60
80
100
MAXIMUM FORWARD CURRENT：I
F
(mA)
MAXIMUM FORWARD CURRENT：I
F
(mA)
■
SML-Z14VT(A)
■
SML-Z14UT(A)
■
SML-Z14DT(A)
■
SML-Z14YT(A)
■
SML-Z14MT(A)
■
SML-Z14FT(A)
■
SML-Z14PT(A)
■
80
70
60
50
40
30
20
10
0
-40
-20
0
20
40
60
80
100
■
SML-Z14V4T
■
SML-Z14U4T
■
SML-Z14D4T
■
SML-Z14Y4T
■
SML-Z14M4T
■
SML-Z14F4T
■
SML-Z14P4T
■
40
■
■
SMLZ14EGT(A)
■
SMLZ14BGT(A)
30
■
SMLZ14WBGAW(A)
■
SMLZ14WBGBW(A)
■
SMLZ14WBGCW(A)
■
SMLZ14WBGDW(A)
20
10
0
-40
-20
0
20
40
60
80
100 120
AMBIENT TEMPERATURE：Ta (°C)
AMBIENT TEMPERATURE：Ta (°C)
AMBIENT TEMPERATURE：Ta (°C)
© 2012 ROHM Co., Ltd. All rights reserved.
www.rohm.com
2/4
2012.11 - Rev.B
SML-Z1 Series
Rank Reference of Brightness
Red (V, U)
Package
structure
Package Height
size (mm)
I
F
(mA)
Luminous
Intensity
(mcd)
AM
AN
AP
AQ
AR
AS
AT
AU
AV
AW
AX
AY
AZ
BA
BB
BC
BD
BE
28 to 35.5 35.5 to 45 45 to 56 56 to 71 71 to 90 90 to 112 112 to 140 140 to 180 180 to 224 224 to 280 280 to 355 355 to 450 450 to 560 560 to 710 710 to 900 900 to 1120 1120 to 1400 1400 to 1800
20
SML-Z14VT(A)
SML-Z14V4T
SML-Z14UT(A)
SML-Z14U4T
PLCC2
3528
1.9
50
Orange (D)
Package
structure
Package Height
size (mm)
PLCC2
3528
1.9
I
F
(mA)
20
50
Luminous
Intensity
(mcd)
AM
AN
AP
AQ
AR
AS
AT
AU
AV
AW
AX
AY
AZ
BA
BB
BC
BD
BE
28 to 35.5 35.5 to 45 45 to 56 56 to 71 71 to 90 90 to 112 112 to 140 140 to 180 180 to 224 224 to 280 280 to 355 355 to 450 450 to 560 560 to 710 710 to 900 900 to 1120 1120 to 1400 1400 to 1800
SML-Z14DT(A)
SML-Z14D4T
Yellow (Y)
Package
structure
Package Height
size (mm)
PLCC2
3528
1.9
I
F
(mA)
20
50
Luminous
Intensity
(mcd)
AM
AN
AP
AQ
AR
AS
AT
AU
AV
AW
AX
AY
AZ
BA
BB
BC
BD
BE
28 to 35.5 35.5 to 45 45 to 56 56 to 71 71 to 90 90 to 112 112 to 140 140 to 180 180 to 224 224 to 280 280 to 355 355 to 450 450 to 560 560 to 710 710 to 900 900 to 1120 1120 to 1400 1400 to 1800
SML-Z14YT(A)
SML-Z14Y4T
Green (M, P, F)
Package
structure
Package Height
size (mm)
I
F
(mA)
Luminous
Intensity
(mcd)
AG
AH
AJ
AK
AL
AM
AN
AP
AQ
AR
AS
AT
AU
AV
AW
AX
AY
AZ
9 to 11.2 11.2 to 14 14 to 18 18 to 22.4 22.4 to 28 28 to 35.5 35.5 to 45 45 to 56 56 to 71 71 to 90 90 to 112 112 to 140 140 to 180 180 to 224 224 to 280 280 to 355 355 to 450 450 to 560
SML-Z14MT(A)
20
SML-Z14PT(A)
SML-Z14FT(A)
SML-Z14M4T
PLCC2
3528
1.9
50
SML-Z14P4T
SML-Z14F4T
Bluish-Green (E)
Package
structure
Package Height
size (mm)
PLCC2
3528
1.9
I
F
(mA)
20
Luminous
Intensity
(mcd)
S1
S2
T1
T2
U1
U2
V1
V2
W1
W2
X1
X2
Y1
Y2
Z1
Z2
90 to 110 110 to 140 140 to 180 180 to 220 220 to 280 280 to 360 360 to 450 450 to 560 560 to 710 710 to 900 900 to 1100 1100 to 1400 1400 to 1800 1800 to 2200 2200 to 2800 2800 to 3600
SMLZ14EGT(A)
Blue (B)
Package
structure
Package Height
size (mm)
PLCC2
3528
1.9
I
F
(mA)
20
Luminous
Intensity
(mcd)
S1
S2
T1
T2
U1
U2
V1
V2
W1
W2
X1
X2
Y1
Y2
Z1
Z2
90 to 110 110 to 140 140 to 180 180 to 220 220 to 280 280 to 360 360 to 450 450 to 560 560 to 710 710 to 900 900 to 1100 1100 to 1400 1400 to 1800 1800 to 2200 2200 to 2800 2800 to 3600
SMLZ14BGT(A)
White (WB)
Package
structure
Package Height
size (mm)
I
F
(mA)
Luminous
Intensity
(mcd)
S1
S2
T1
T2
U1
U2
V1
V2
W1
W2
X1
X2
Y1
Y2
Z1
Z2
90 to 110 110 to 140 140 to 180 180 to 220 220 to 280 280 to 360 360 to 450 450 to 560 560 to 710 710 to 900 900 to 1100 1100 to 1400 1400 to 1800 1800 to 2200 2200 to 2800 2800 to 3600
PLCC2
3528
1.9
20
SMLZ14WBGAW(A)
SMLZ14WBGBW(A)
SMLZ14WBGCW(A)
SMLZ14WBGDW(A)
＊Please
note that the brightness of some products may fall between ranks (half rank).
© 2012 ROHM Co., Ltd. All rights reserved.
www.rohm.com
3/4
2012.11 - Rev.B
SML-Z1 Series
Part No. Construction
∗
“−” will be taken out for emitting color
W/B/E series and pastel color.
Dice classification code
Rank sign (Chromaticity Rank)
∗
(for white LED and pastel color)
S M L
Series name
Z 1 4
Package name
Chip Type
Y 4 T
Emitting Color
Resin Color
T 8 6
Taping Specifications
P
Rank sign (Brightness Rank)
∗
3
4
8
High Brightness Type
Ultra High Brightness Type
V
U
D
Y
M
F
P
E
B
Red:630nm
Red:620nm
Orange:605nm
Yellow:590(589)nm
Yellowish-Green:572(571)nm
Green:565(564)nm
Green:561(560)nm
Bluish-Green:528nm
Blue:470nm
T
W
Transparent Colorless
MilkyWhite
T86
Cathode at sprocket hole side
T87
Anode at sprochet hole side
1
For white LED and pastel color
cathode at sprocket hole side
WB
White
CB
Ice blue
GB
Blue green
PB
Pure green
SB
Sapphire blue
∗
Concerning the rank sign.
• Please refer to the rank chart above for luminous intensity classification.
• Please refer to specification sheet for color classification.
• Part name is individual for each rank.
• When shipped as sample, the part name will be a representative part name.
General products are free of ranks. Please contact sales if rank appointment is needed.
Packing Specification
ROHM LED products are being shipped with desiccant (silica gel) concluded in moisture-proof bags.
Pasting the moisture sensitive label on the outer surface of the moisture-proof bags or enclosing the humidity indication card inside the bag is available upon request.
Please contact the nearest sales office or distributer if necessary.
© 2012 ROHM Co., Ltd. All rights reserved.
www.rohm.com
4/4
2012.11 - Rev.B
