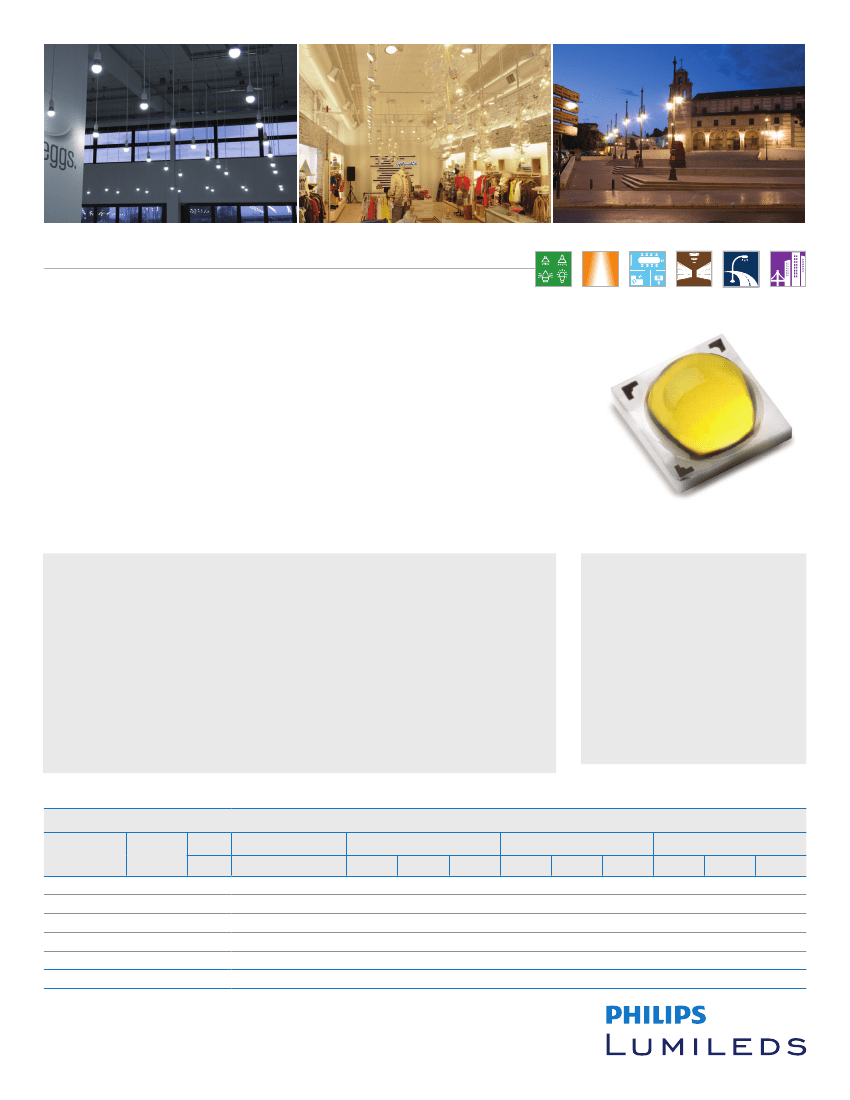

LUXEON T
High-Efficacy, Illumination Grade LED light source
LUXEON
®
T emitters are illumination grade LEDs designed to deliver high efficacy
with high flux density to enable tight beam control in directional and high lumen
applications. With
Freedom from Binning
TM
and leading performance, LUXEON T
emitters allow system optimization by blending the perfect combination of high
efficacy and low system cost. With tight Correlated Color Temperature control,
LUXEON T ensures consistency in system color point.
Features
•
Freedom from Binning – 3 and 5 SDCM
•
Hot tested at T
j
85°C
•
Typical V
f
of 2.7V and lowest thermal
resistance, 3K/W
•
Proven reliability
Benefits
•
Delivers color consistency
•
Ensure in application performance
•
Optimized for efficacy driven
applications
•
Superior efficacy and light output
Key Applications
•
Lamps
•
Downlights
•
Indoor
•
Highbay and Lowbay
•
Outdoor
•
Architectural
•
Exceeds ENERGY STAR lumen maintenance requirements
•
UL-recognized component [E352519] with level 4 enclosure consideration
LUXEON T Product Characteristics
Typical Performance Characteristics at 350 mA, 700 mA, and 1000 mA for LUXEON T, Junction Temperature = 85°C
Part Number
LXH8-FW27-Y
LXH8-FW30-Y
LXH8-FW35-Y
LXH8-FW40-Y
LXH8-FW50-Y
LXH9-FW30-Y
Nominal
ANSI CCT
2700K
3000K
3500K
4000K
5000K
3000K
CRI
700 mA
80 min
80 min
80 min
80 min
80 min
95 typ
Luminous Flux (lm) Min
700 mA
170
180
190
190
190
130
Typical Luminous Flux (lm)
350 mA
100
106
112
114
120
86
700 mA
186
197
208
212
222
160
1000 mA
254
269
278
288
300
216
Typical Forward Voltage (V
f
)
350 mA
2.71
2.71
2.71
2.71
2.71
2.71
700 mA
2.80
2.80
2.80
2.80
2.80
2.80
1000 mA
2.86
2.86
2.86
2.86
2.86
2.86
Typical Efficacy (lm/W)
350 mA
105
112
118
120
127
91
700 mA
95
101
106
108
113
82
1000 mA
89
94
97
101
105
76

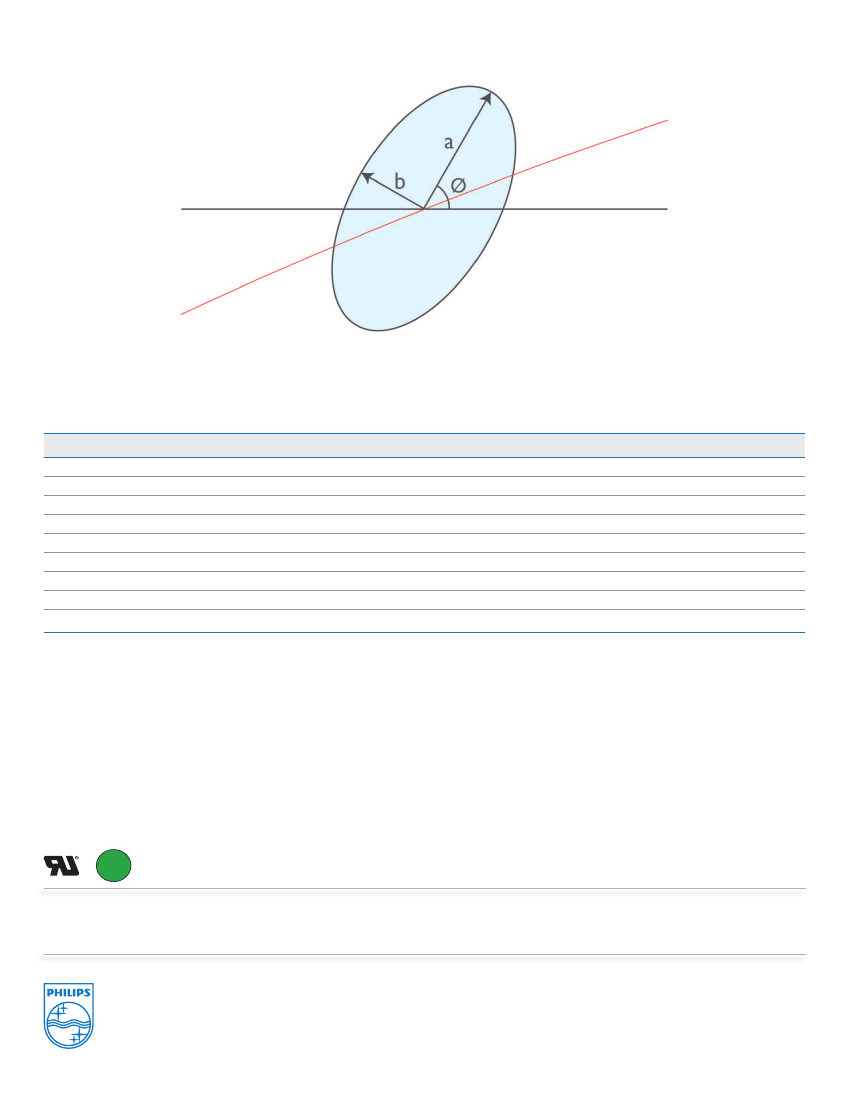

LUXEON T 3-Step and 5-Step MacAdam Ellipse Color Definition
Absolute Maximum Ratings
Parameter
DC Forward Current (mA)
1, 2
Peak Pulsed Forward Current (mA)
1, 3
ESD Sensitivity
LED Junction Temperature
1
Operating Case Temperature at 700 mA
Storage Temperature
Soldering Temperature
Allowable Reflow Cycles
Reverse Voltage (Vr)
LUXEON T
1050
1200
< 8000V Human Body Model (HBM) Class 3A JESD22-A114-E
150°C
-40°C - 135°C
-40°C - 135°C
JEDEC 020c 260°C
3
LUXEON T LEDs are not designed to be driven in reverse bias
COMPLIANT
RoHS
