ZX10-4-24 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZX10-4-24

ZX10-4-24: DescriptionPower Splitters/Combiners 4 Way-0∑ 50з 800 to 2700 MHz; CategoryWireless rf/communication Radio frequency and microwave; File Size162KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZX10-4-24 Overview

Power Splitters/Combiners 4 Way-0∑ 50з 800 to 2700 MHz

ZX10-4-24 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Other features	ISOLATION-MIN (DB):17
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.98 dBm
Maximum insertion loss	1.1 dB
JESD-609 code	e0
Maximum operating frequency	2350 MHz
Minimum operating frequency	1675 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	COMBINER
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

Coaxial

Power Splitters/Combiners

4 Way-0° 50Ω

Maximum Ratings

Operating Temperature

Storage Temperature

Power Input (as a splitter)

Power Input (as a combiner)

-40°C to 85°C

-55°C to 100°C

2.5W max.

0.125W max.*

EW!

ZX10-4-SERIES

800 to 2700 MHz

Features

low insertion loss, 0.6 dB typ.

high isolation, 20 dB typ.

rigid unibody construction

gold plated connectors;

nickel plated body

• low cost

• small size

• patent pending

•

CASE STYLE: GR1026

PRICE: $38.95 ea. QTY (1-24)

*maximum VSWR at output 1.2:1

Applications

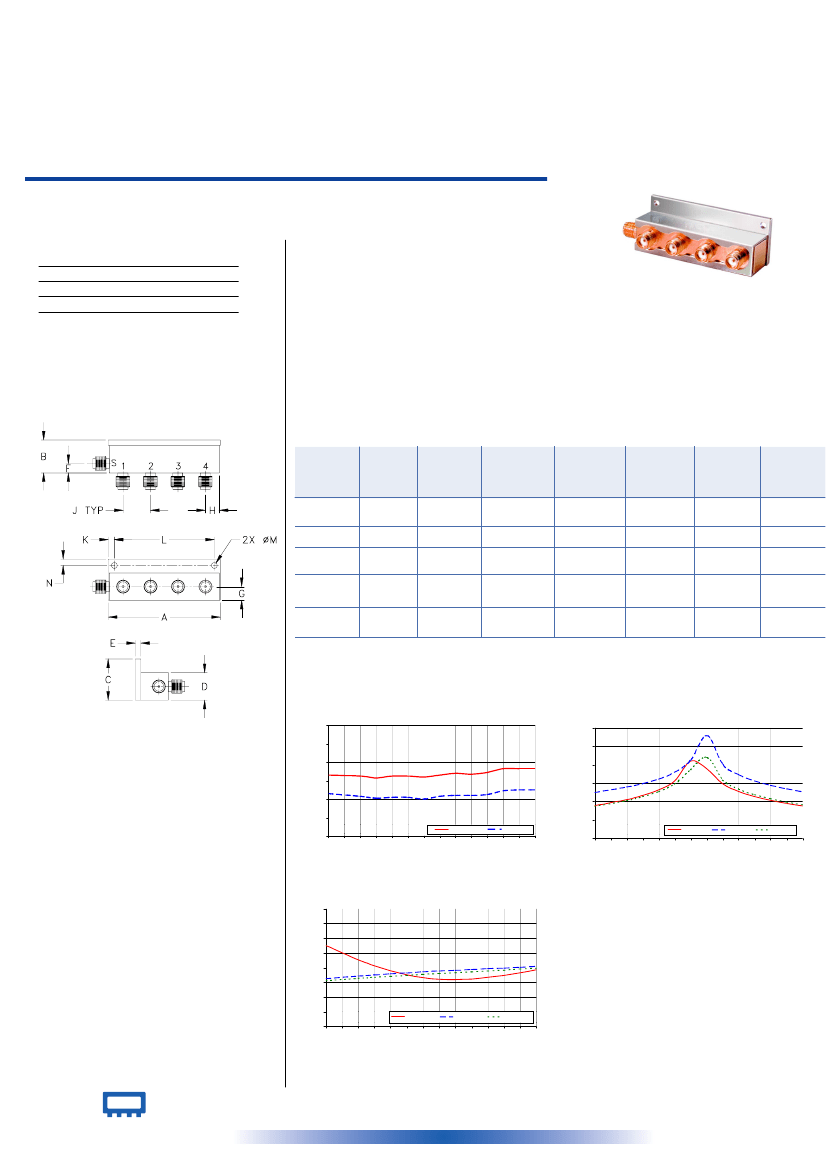

Outline Drawing

• antenna arrays

• signal distribution

• test bench

Splitter Electrical Specifications (T

AMB

=25°C)

MODEL

NO.

FREQ.

RANGE

(MHz)

-f

800-1125

875-1050

1100-1450

1425-1900

1450-1775

1675-2350

1775-2200

2225-2700

2400-2600

ISOLATION

(dB)

Typ. Min.

INSERTION

LOSS (dB)

above 6.0 dB

Typ. Max.

0.6

0.8

0.75

0.9

1.0

0.8

1.3

1.0

1.3

1.0

1.1

1.5

1.3

PHASE

UNBALANCE

(Degrees)

Max.

AMPLITUDE

UNBALANCE

(dB)

Max.

0.7

0.8

0.9

0.8

0.7

1.2

INPUT

VSWR

(:1)

Typ.

1.2

1.3

1.2

1.18

1.4

OUTPUT

VSWR

(:1)

Typ.

1.2

1.3

1.2

1.3

1.25

ZX10-4-11

ZX10-4-14

ZX10-4-19

ZX10-4-24

ZX10-4-27

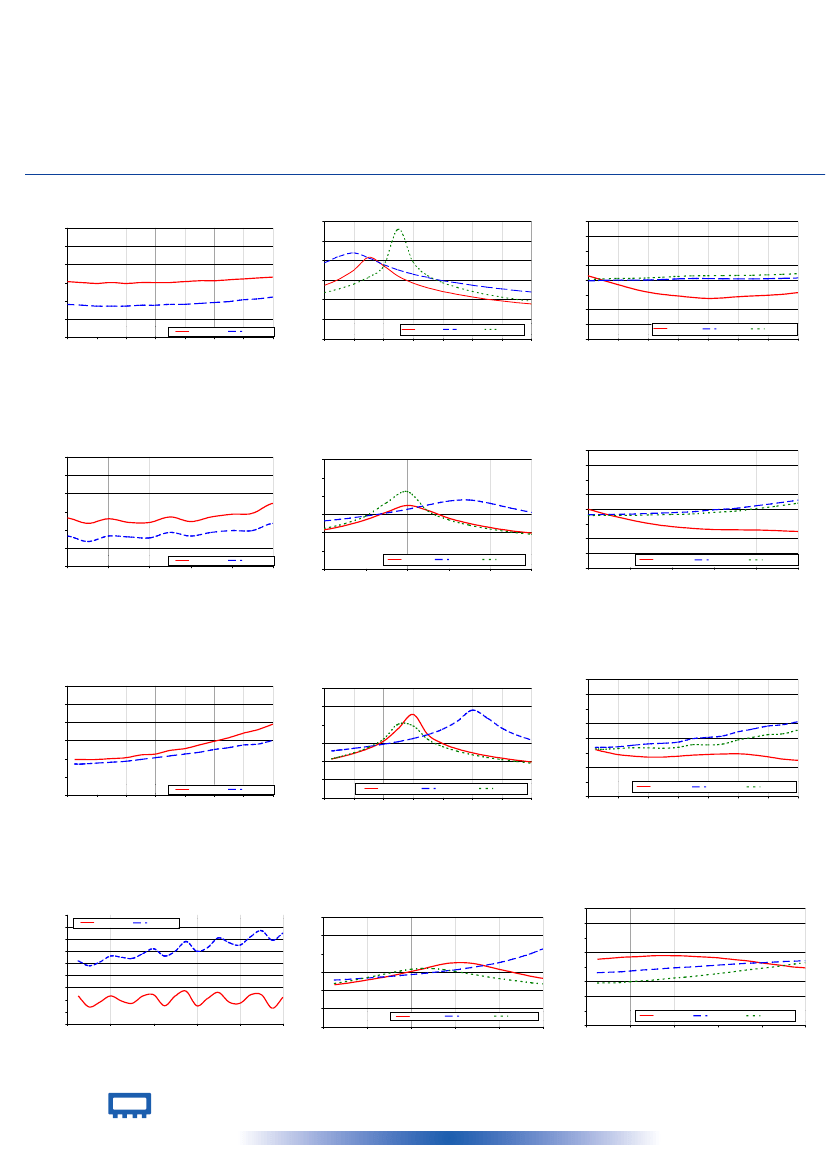

Performance Charts

ZX10-4-11

INSERTION LOSS

7.2

INSERTION LOSS (dB)

7.0

6.8

6.6

6.4

6.2

6.0

800

825 850 875

ZX10-4-11

ISOLATION

ISOLATION (dB)

at RF level of -10 dBm

Outline Dimensions (

2.04

.60

.75

.50

51.82 15.24 19.05 12.70

.50

12.70

.11 1.820

2.79 46.23

.106

2.69

.10

2.54

.12

3.05

inch

.17

.25

4.32

6.35

)

.25

6.35

S-1(dB)

FREQUENCY(MHz)

S-3(dB)

800 825

ISO 1-2

850 875 900 925 950

ISO 2-3

ISO 3-4

wt.

grams

60.0

900 925 950 975 1000 1025 1050 1075 1100 1125

975 1000 1025 1050 1075 1100 1125

FREQUENCY(MHz)

1.6

1.5

1.4

VSWR

1.3

1.2

1.1

1.0

0.9

0.8

800

at RF level of -10 dBm

ZX10-4-11

VSWR

#S-VSWR

825

850

875

900

925

950

#1-VSWR

#3-VSWR

975 1000 1025 1050 1075 1100 1125

FREQUENCY(MHz)

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

REV. A

M91558

ZX10-4-11 ED10988/1

ZX10-4-14 ED10988/4

ZX10-4-19 ED10988/2

ZX10-4-24 ED10988/5

ZX10-4-27 ED10988/3

ZX10-4-SERIES

AD/RS/CP

040331

page 1 of 2

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

ISO 9001 CERTIFIED
