PRODUCT BRIEF
Intel® 82579 Gigabit Network Connections
Network Connectivity/Ethernet Controllers

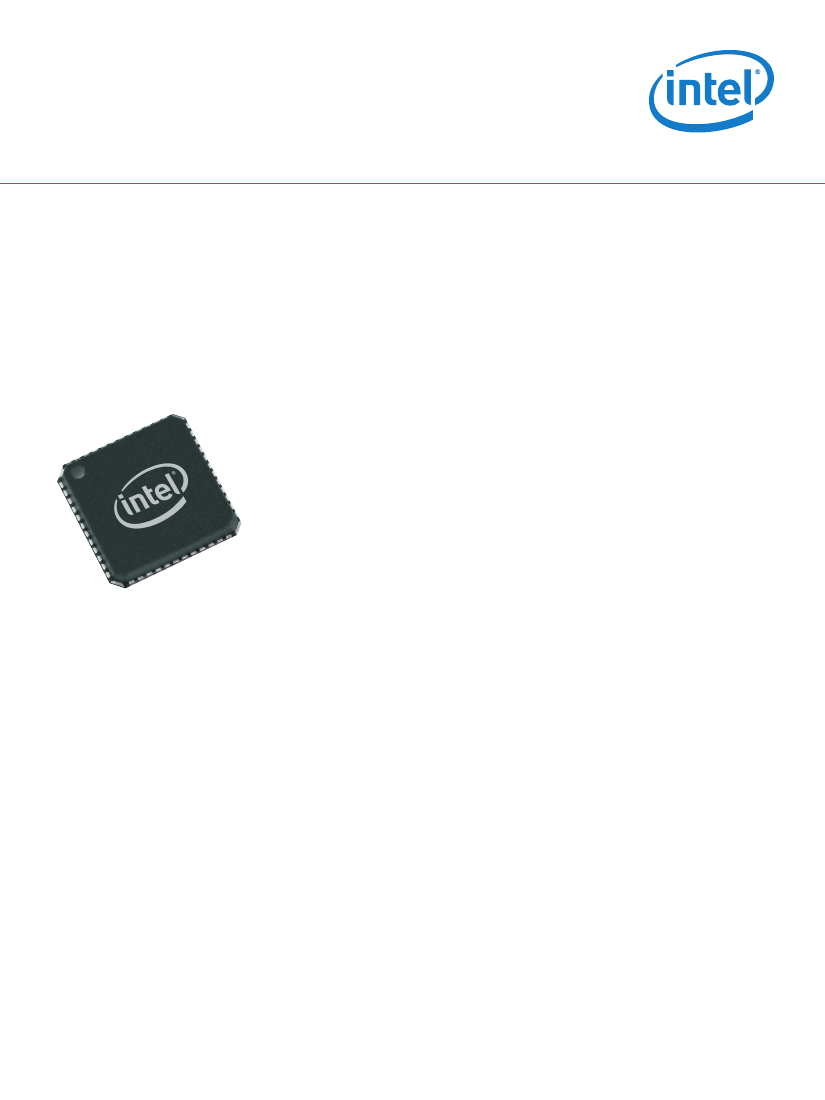

Intel® 82579 GbE Controller
Network Connection
High-performance Gigabit Network Connectivity with Support for Intel® vPro™ technology.
Overview
The Intel® 82579 family of Gigabit Ethernet Controllers provides compact, single-port
integrated physical layer devices that connect to the Intel® 6 Series Express chipsets.
The 82579 family of products are gigabit copper networking components for mobile,
desktop, workstation, embedded and value-server designs that have critical space and
power constraints.
Key Details
Reduced Power and Energy Savings:
The Intel® 82579 family reduces the
power consumption in all power states
compared to previous generations of Intel
controllers. While in active-idle Intel® has
implemented Energy Efficient Ethernet
(EEE)
1
, a new IEEE* standard. With EEE
Intel has reduced the idle power of the
gigabit link from about 500 mW to nearly
50 mW providing a significant energy
savings. For mobile designs, Intel’s Auto
Connect Battery Saver can help reduce
the cable-disconnected power of the chip
to about 30 mW while still maintaining full
functionality. The products also support
advanced link downshifting capabilities
to provide additional power headroom for
system regulatory compliance (such as
Energy Star*) by lowering the link speed
under certain conditions to save power.
Intel® Business Client Features:
The
Intel® 82579LM supports Intel® AMT
2
,
which is a part of Intel’s vPro™ technology
on notebooks, desktop, and workstation
systems. Intel vPro technology provides
built-in manageability, proactive security,
and energy-efficient performance for
business applications.
Simplified installation and Maintenance:
Intel® 82579LM products also support
the Intel Stable Image Platform Program
(SIPP), which provides system image sta-
bility (both hardware and software) and
consistency for at least 12 months from
the product launch date. Helping IT better
manage their client environment.
Performance-Enhancing Features:
Each
of the Intel® 82579 family of network
components includes advanced interrupt-
handling features to reduce CPU over-
heard. Other performance-enhancing fea-
tures include offloading TCP/UDP (for both
IPv4 and IPv6) checksum calculations and
performing TCP segmentation. Advanced
features such as Jumbo Frame support for
extra-large packets and Receive Side Scal-
ing are also supported.
Advanced Security:
The Intel® 82579LM
supports the latest Ethernet security
standard known as MACsec
3
(IEEE stan-
dard 802.1ae). MACsec provides robust
security at a low level of the system by
providing MAC layer (layer 2) encryption
and authentication capability hop-by-hop.
This enables IT to fully encrypt network
traffic, but still perform traffic shaping
and analysis at the router and doesn’t
interfere with existing network protocols.
Flexible, Low-Cost System Design:
The Intel® 82579 family of networking
components provide a small package (6x6
mm) networking option for convenient
board layout. The Intel® 82579 has flexible
power options including sharing the 1.05
Vdc supply with the chipset or it can be
configured using the integrated switching
voltage regulator (iSVR), removing the
need for an external regulator and reduc-
ing overall cost and board space. Addition-
ally, the 82579 family of products help
to reduce board space by using a shared
FLASH design. Finally, low thermal design
power (TDP) helps improve board place-
ment flexibility.
Environmentally friendly design:
The
Intel® 82579 family of products are all lead
free
4
and halogen free
5
in their silicon and
package design to reduce the potential for
environmental impact.
Comparison of Controller Features
Features
10 Base T (IEEE 802.3 specification conformance)
100 Base TX (IEEE 802.3 specification conformance)
1000 Base T (IEEE 802.3 specification conformance)
Auto-Negotiation (IEEE 802.3u)
Intel® vPro™
2
technology
Intel® Stable Image Platform Program (SIPP)
Intel® Standard Manageablity
Energy Efficient Ethernet
1
(IEEE 802.3az)
iSCSI Boot Support
MACsec (802.1ae)
3
TCP/UDP checksum and segmentation offload (IPv4 and IPv6)
Receive Side Scaling
Dual TX and RX queues
Jumbo Frames (up to 9K)
Teaming
Integrated Auto Connect Battery Saver (ACBS) battery savings
VLAN Tagging (802.1q/ 802.1p)
Timing and Synchronization (802.1as / 1588)
Shared Switched Voltage Regulator (SVR) with chipset
Integrated Switched Voltage Regulator (iSVR)
Shared FLASH with system BIOS
82579V
82579LM
For more information on the Intel® 82579 Gigabit Ethernet Controller, please visit
www.intel.com/go/connectivity.
Component Summary
CONTROLLER
∆
Intel® 82579LM
DISTINGUISHING FEATURES
• Corporate LAN product with support for Intel® vPro™ technology, Intel® AMT
2
, Energy Efficient
Ethernet (802.3AZ)
1
, MACsec (802.1ae)
3
, Intel® SIPP, iSCSI Boot, Server OS support.
• Intended for mobile, desktop, workstation, entry server and embedded designs.
Intel® 82579V
• Consumer LAN product with support for Energy Effiencient Ethernet (802.3AZ)
1
, Intel® Standard
Manageablity, ACBS and standard Gigabit networking features
• Intended for mobile, desktop, and embedded design
WG82579V
ORDER CODES
WG82579LM
1 Energy Efficient Ethernet (EEE) low-power idle requires that both link partners supprt IEEE802.3az.
2 Intel® Active Management Technology (AMT) requires specific Intel chipsets in addition to the Intel 82579LM networking component. Intel Standard Manageability requires specific Intel chipsets in addition to the Intel 82579LM networking
component.
3 MACsec (802.1ae) security requires Intel® 82579LM with EEPROM bits set for MACsec support, a MACsec software supplicant (available from 3rd party vendors) and a MACsec-capable switch.
4 Lead has not been intentionally added, but lead may still exist as an impurity below 1000 ppm.
5 Lead and other materials banned in the RoHS Directive are either: (1) below all applicable substance thresholds as proposed by the EU or (2) an approved/pending exemption applies.
