LFV330-XAGBVXVT1000
LFV300
LEVEL SENSORS
Online data sheet
LFV330-XAGBVXVT1000 | LFV300
LEVEL SENSORS
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T

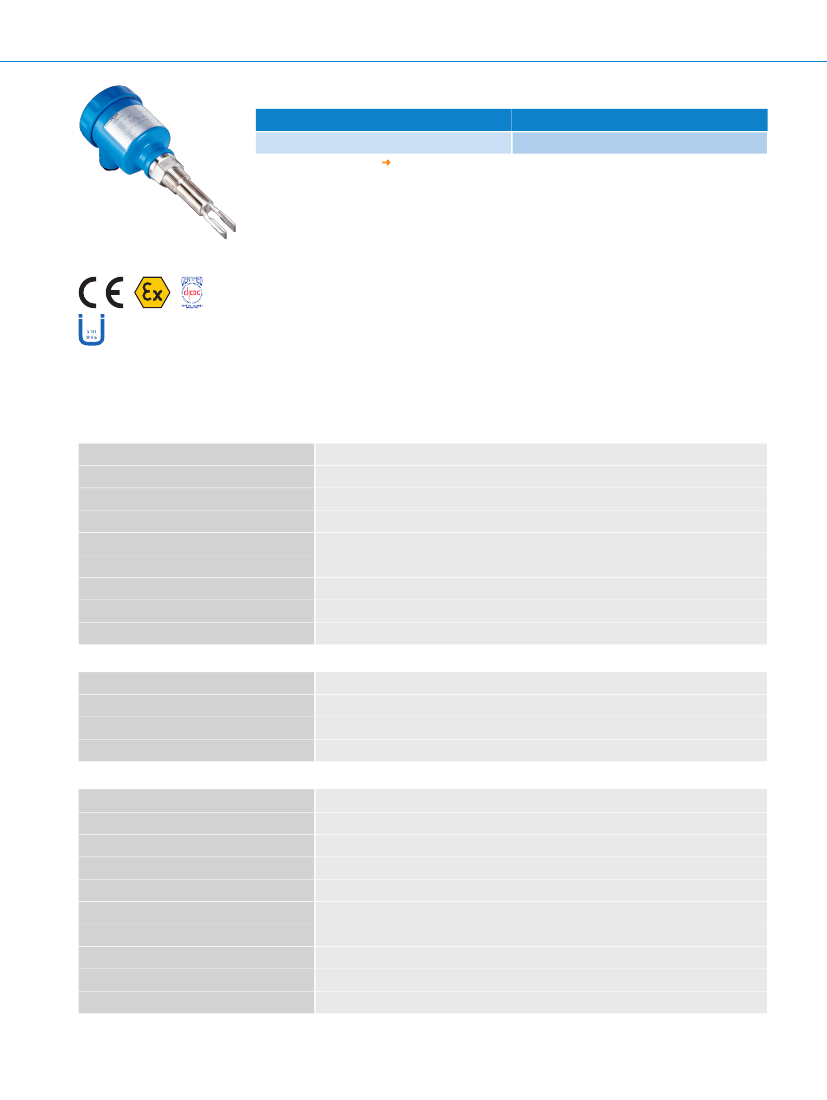

Ordering information
Type
LFV330-XAGBVXVT1000
Other models and accessories
www.sick.com/LFV300
Part no.
6042882
Illustration may differ
Detailed technical data
Features
Medium
Measurement
Probe length
Process pressure
Process temperature
Fill material density
GOST approval
WHG approval
Authorizations
Fluids
Switch
1,000 mm
–1 bar ... 64 bar
–50 °C ... +150 °C
0.5 g/cm³ ... 2.5 g/cm³
✔
✔
WHG approval
Performance
Accuracy of sensor element
Repeatability
Viscosity
Response time
± 2 mm
≤ 1 mm
0.1 mPas ... 10,000 mPas
500 ms
Electronics
Residual ripple
Power consumption
Initialization time
VDE protection class 2
Electrical connection
Supply voltage
Hysteresis
Signal voltage HIGH
Signal voltage LOW
Output current
≤ 5 V
pp
< 10 mA
< 2 s
✔
M20 x 1.5
Volt-free transistor output PNP/ NPN: 10 V DC ... 55 V DC
2 mm
Uv –3 V
< 1 V
< 300 mA
2
FLUID SENSORS | SICK
Online data sheet | 2016-05-17 16:55:06
Subject to change without notice
LFV330-XAGBVXVT1000 | LFV300
LEVEL SENSORS
Inductive load
Capacitive load
Enclosure rating
Temperature drift
≤ 1 H
100 nF
IP 66 / IP 67
0,03 mm/K
Mechanics
Wetted parts
Process connection
Housing material
Sensor material
Stainless steel 316L (optional Ra ≤ 0.8 μm)
G ¾ A PN 64 / 1.4404
Stainless steel (investment casting) 316L
Stainless steel 1.4404
Ambient data
Ambient operating temperature
Ambient storage temperature
–40 °C ... +70 °C
–40 °C ... +80 °C
Classifications
ECl@ss 5.0
ECl@ss 5.1.4
ECl@ss 6.0
ECl@ss 6.2
ECl@ss 7.0
ECl@ss 8.0
ECl@ss 8.1
ECl@ss 9.0
ETIM 5.0
ETIM 6.0
UNSPSC 16.0901
27273202
27273202
27273202
27273202
27273202
27273202
27273202
27273202
EC002654
EC002654
41111938
2016-05-17 16:55:06 | Online data sheet
Subject to change without notice
FLUID SENSORS | SICK
3
LFV330-XAGBVXVT1000 | LFV300
LEVEL SENSORS
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T

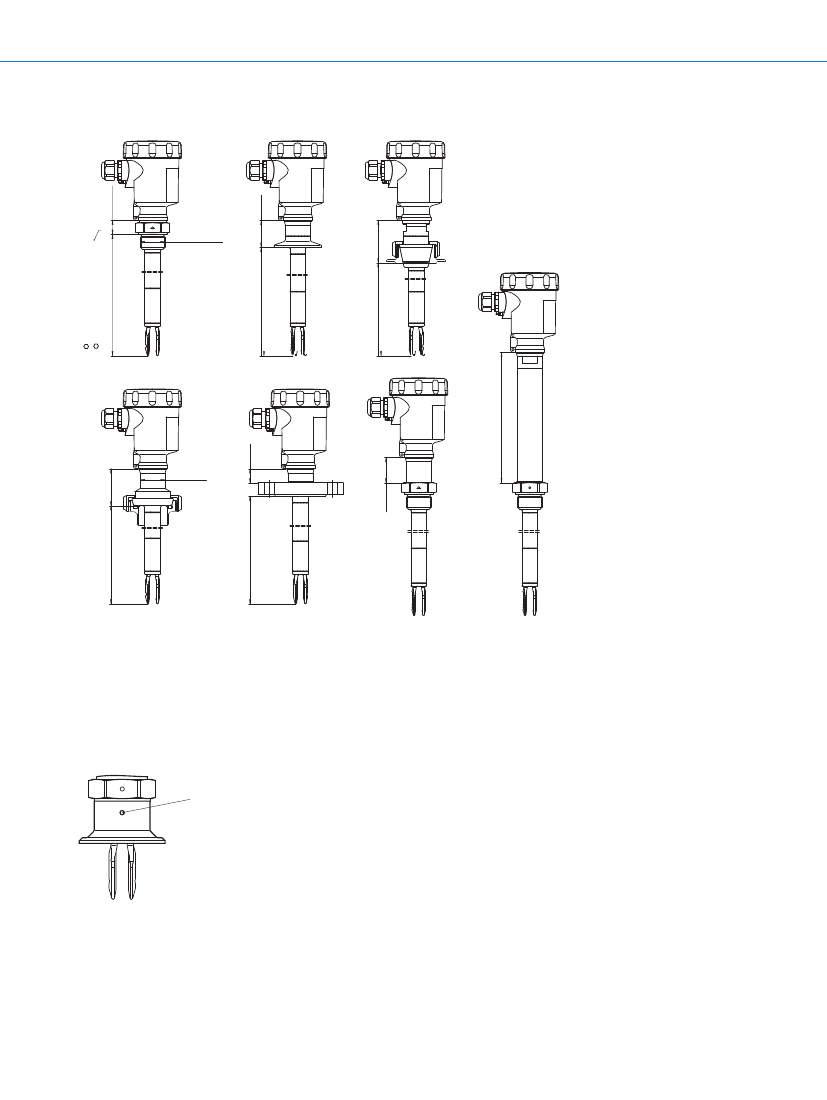

Dimensional drawing
(Dimensions in mm (inch))
LFV330
18.5
(0.73)
36
(1.42)
32 (G 3/4 A, 3/4" NPT)
41 (G 1 A, 1" NPT)
L
G 3/4 A,
3/4" NPT
G 1 A,
1" NPT
L
1
2
L
57
(2.24)
3
50
(1.97)
ø 33.7
(1.33)
19
(0.75)
L
L
4
5
6
7
① Thread
② Tri-Clamp
③ DN
25 cone
④ Bolting
D 40
⑤ Flange
⑥ Gas-tight
leadthrough
⑦ Temperature
adapter
Marking on the welded flange
1
① Marking
4
FLUID SENSORS | SICK
34
(1.34)
178
(7.01)
Online data sheet | 2016-05-17 16:55:06
Subject to change without notice
LFV330-XAGBVXVT1000 | LFV300
LEVEL SENSORS
Connection diagram
Transistor - electronic module
1
2
3
① Signal
lamp (LED)
② DIL
switch for mode adjustment
③ DIL-switch
for sensitivity adjustment
PNP action
1
2
3
4
1 2 3 4
+
-
NPN action
-
+
1 2 3 4
+
-
Instruction for installation
Inflowing medium
2016-05-17 16:55:06 | Online data sheet
Subject to change without notice
-
FLUID SENSORS | SICK
5
+
