ZX60-3011 Overview

Low Noise Amplifier 50з 400 to 3000 MHz

ZX60-3011 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Objectid	2007531857
Reach Compliance Code	unknow
compound_id	7171418
Other features	SMA
Characteristic impedance	50 Ω
structure	COAXIAL
Gain	7.5 dB
Maximum input power (CW)	15 dBm
JESD-609 code	e0
Maximum operating frequency	3000 MHz
Minimum operating frequency	400 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.6

Preview

Download Datasheet

View All

Low Noise

Amplifier

50Ω

400 to 3000 MHz

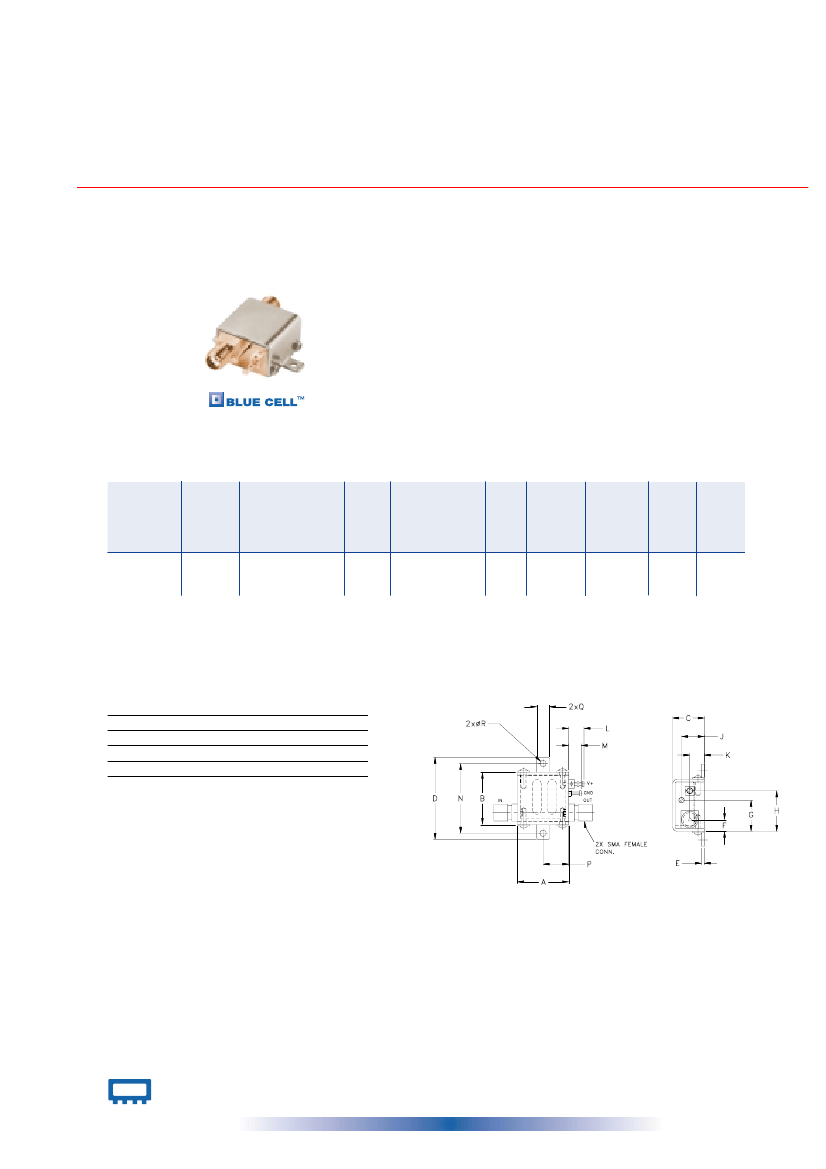

Features

EW!

ZX60-3011

• high dynamic range

• wide bandwidth, 0.4 to 3.0 GHz

• low noise figure 1.5 dB typ.

• 1dB compression, +19 dBm

• medium IP3

• reverse voltage connection protected

• over-voltage transient protected

• thermal over-load protected

• low cost

Applications

CASE STYLE: GC957

• buffer amplifier

• LO amplifierss for mixers

• cellular

• PCN

• general purpose small signal

Electrical Specifications (T

AMB

= 25°C)

MODEL

NO.

FREQ.

(GHz)

GAIN

(dB)

Flatness

- f

ZX60-3011

0.4-1.0

1.0-1.7

1.7-2.4

2.4-3.0

Typ. Min.

15.0

13.5

11.5

10.0

7.5

Typ.

±.70

±1.0

±.70

NOISE

FIGURE

(dB)

MAXIMUM POWER

(dBm)

INTER-

CEPT

POINT

IP3

dBm

Typ.

VSWR

(:1)

Typ.

1.7

Out

1.6

POWER

Max.

Volt Current

Typ. (mA)

CASE

STYLE

PRICE

QTY.

(1-9)

Input

Output

(1 dB Comp.) (no

Typ. Max. Typ. Min. damage)

1.4

1.5

1.7

1.8

2.5

2.6

2.8

21.5

21.0

20.4

19.5

18.5

18.0

+15

120

GC957

139.95

Maximum Ratings

Operating Temperature

Storage Temperature

DC Voltage

Input Power (no damage)

Power

Outline Drawing

-40°C to +85°C case

-40°C to +60°C ambient

-55°C to +100°C

6.5V min. to 15V max.

15 dBm

1.12W typ at 12V

Other voltages available in the 6.5 to 20V range, please contact factory.

Outline Dimensions (

inch

)

0.74

18.8

.21

5.3

.75

19.1

.22

5.6

.46

11.6

.18

4.6

1.18

30.0

1.00

25.4

.04

1.0

.37

9.4

.17

4.3

.18

4.6

.45

11.4

.09

2.3

.59

14.9

.33

8.3

wt.

grams

23.0

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

REV. B

M93863

ZX60-3011

EDB030109

BLUEC/TD/CP

040813

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010
