THT ZTA SERIES CERAMIC RESONATORS
FEATURES
High reliability for low cost
Small dimensions and low profile
Wide frequency range
Excellent clock signal generator
Tape & Reel delivery form possible
RoHS-2 2011/65/EU
compliant
GENERAL DATA
Part Number
Frequency
Frequency
Stability over
Operating
Aging For
Range
Accuracy
Temperature
Temperature
10 Years
1.79 ~ 6.00 MHz
±0.5% at 25°C
±0.3% over -25/+85°C
-25/+85°C
±0.3%
ZTAWS-MG
6.01 ~ 12.50 MHz
±0.5% at 25°C
±0.3% over -25/+85°C
-25/+85°C
±0.3%
ZTARS-MG
6.00 ~ 13.00 MHz
±0.5% at 25°C
±0.3% over -25/+85°C
-25/+85°C
±0.3%
ZTA-MT
12.00 ~ 60.0 MHz
±0.5% at 25°C
±0.3% over -25/+85°C
-25/+85°C
±0.3%
ZTA-MX
16.00 ~ 60.0 MHz
±0.5% at 25°C
±0.3% over -25/+85°C
-25/+85°C
±0.3%
ZTARS-MX
OTHER PARAMETERS ARE AVAILABLE ON REQUEST / CREATE HERE YOUR SPECIFICATION

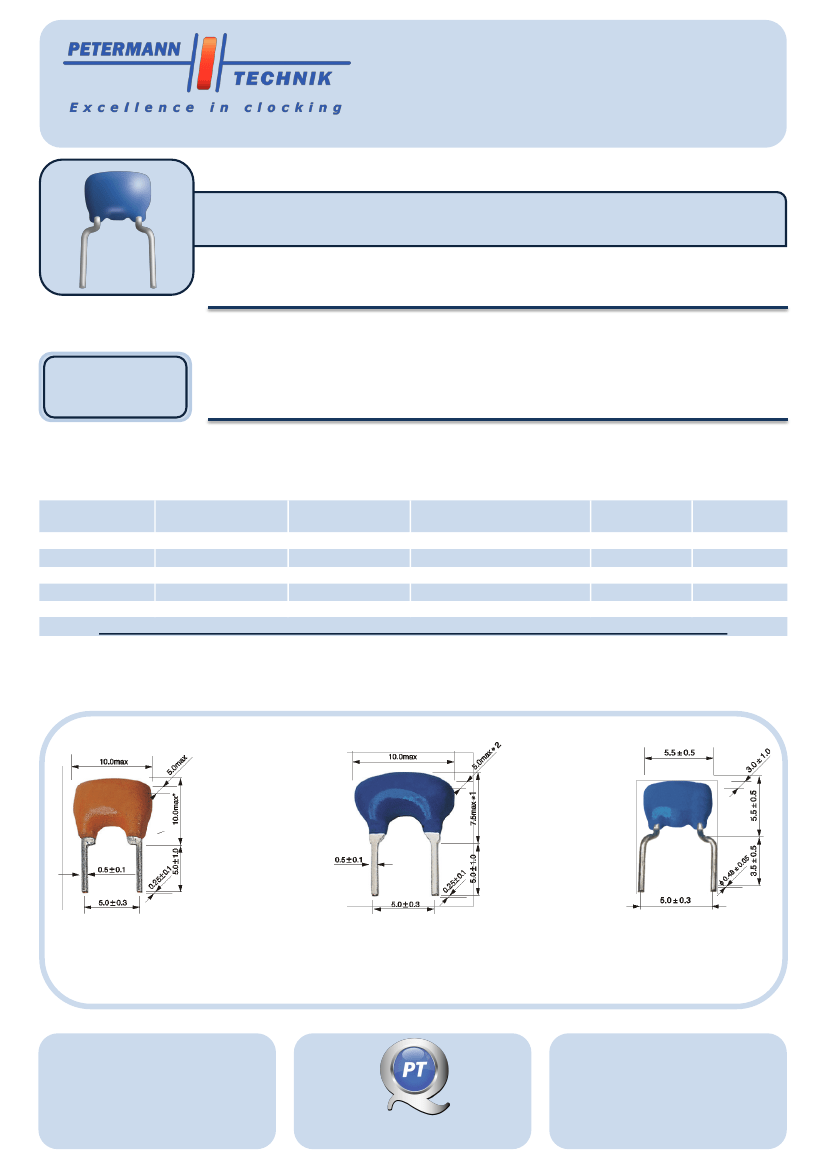

DIMENSIONS
ZTA-MT/MX
ZTAWS-MG
ZTARS-MG/MX
*MT: 10.0 max;
*MX: 12.00~23.99MHz, 10.0 max
24.00~31.99MHz, 7.5 max
32.00~60.00MHz, 6.5 max
*1 WS: 5.5 max;
*2 WS: 4.0 max;
*
CRYSTALS
OSCILLATORS
CERAMIC RESONATORS
Premium Quality by
PETERMANN-TECHNIK
CERAMIC FILTERS
SAW COMPONENTS
Spec.01 • REV.00 • August 2013
ISO 9001:2008
PETERMANN-TECHNIK GmbH
Lechwiesenstr. 13
D-86899 Landsberg am Lech
Fon: +49/8191/305395
Fax: +49/8191/305397
www.petermann-technik.com
info@petermann-technik.com

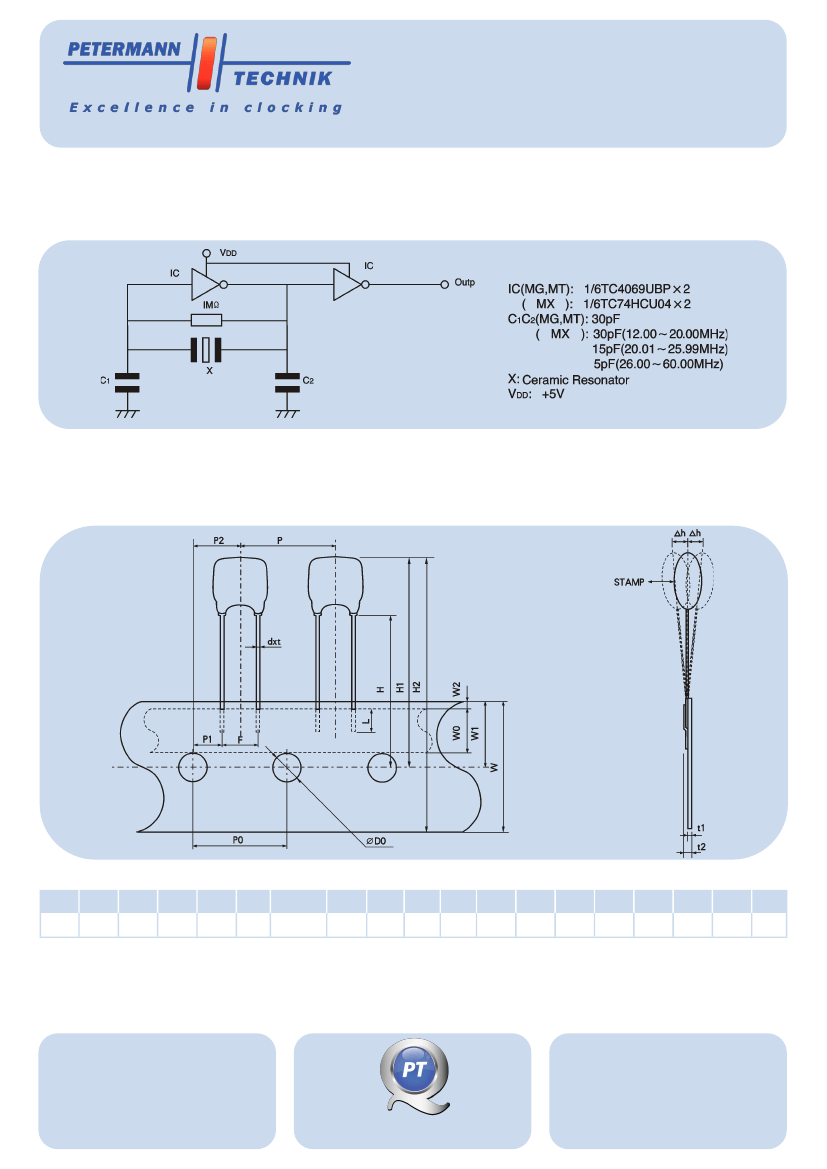

TEST CIRCUIT FOR MOS IC
AMMO PACK TAPING DIMENSIONS (OPTION)
Code
P
P0
P1
P2
F
dxt
W
W0
W1
W2
H
H1
H2
L
ΦD0
T1
T2
∆h
*
Size
12.7
±
0.5 12.7±
0
.2 3.85±0.
5
6.35
±
1.3 5.0
+0.5
-0.3
0.5X0.25(±0.1)
18.0±0.5 5.5±0.5 9.0±0.5
1.0max 18.0
+0.5
27.0max 36.0max 3.0min
4.0±0.2 0.6±0.2
1.5max 1.0max
(Φ0.48±0.05)
-1.0
2000pcs per box
*Include the slant of products
CRYSTALS
OSCILLATORS
CERAMIC RESONATORS
Premium Quality by
PETERMANN-TECHNIK
CERAMIC FILTERS
SAW COMPONENTS
Spec.01 • REV.00 • August 2013
ISO 9001:2008
PETERMANN-TECHNIK GmbH
Lechwiesenstr. 13
D-86899 Landsberg am Lech
Fon: +49/8191/305395
Fax: +49/8191/305397
www.petermann-technik.com
info@petermann-technik.com
ORDERING INFORMATION
Series
Frequency
Model Code
Delivery
Form
ZTAWS
6.000
MG
BO
PLEASE INDICATE YOUR REQUIRED SERIES
Example: ZTAWS-6.000MG BO
DELIVERY FORM
OPTIONS:
B0
A0
= Bulks (standard)
= AMMO PACKING (2.000 pcs per ammo pack)
CRYSTALS
OSCILLATORS
CERAMIC RESONATORS
Premium Quality by
PETERMANN-TECHNIK
CERAMIC FILTERS
SAW COMPONENTS
Spec.01 • REV.00 • August 2013
