LY61L10248A
Rev. 1.3
1M X 8 BIT HIGH SPEED CMOS SRAM
REVISION HISTORY
Revision
Rev. 1.0
Rev. 1.1
Description
Initial Issued
1.“CE#
≧
V
CC
- 0.2V” revised as ”CE#
≦
0.2” for TEST
CONDITION of Average Operating Power supply Current
Icc1 on page3
2.Revised
ORDERING INFORMATION
Page11
1. Revise “TEST CONDITION” for VOH, VOL on page 4
I
OH
= -8mA revised as -4mA
I
OL
=4mA revised as 8mA
2. Revise VIH(max) & VIL(min) note on page 4
VIH(max) = VCC + 2.0V for pulse width less than 6ns.
VIL(min) = VSS - 2.0V for pulse width less than 6ns.
Revised the address pin sequence of TSOP-II pin configuration on
page 3 in order to be compatible with industry convention. (No
function specifications and applications have been changed and all
the characteristics are kept all the same as Rev 1.2 )
Issue Date
2012/2/21
July.19. 2012
Rev. 1.2
June. 04. 2013
Rev. 1.3
Oct. 30. 2013
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. 9, Science-Based Industrial Park, Hsinchu County 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
0
®
LY61L10248A
Rev. 1.3
1M X 8 BIT HIGH SPEED CMOS SRAM
GENERAL DESCRIPTION
The LY61L10248A is a 8M-bit high speed CMOS
static random access memory organized as 1,024K
words by 8 bits. It is fabricated using very high
performance, high reliability CMOS technology. Its
standby current is stable within the range of
operating temperature.
The LY61L10248A operates from a single power
supply of 3.3V and all inputs and outputs are fully
TTL compatible
FEATURES
Fast access time : 8/10/12ns
Very low power consumption:
Operating current:
90/80/70mA(TYP. 8/10/12ns)
Standby current(Normal version):
3mA(TYP.)
Single 3.3V power supply
All inputs and outputs TTL compatible
Fully static operation
Tri-state output
Data retention voltage : 1.5V (MIN.)
Green package available
Package : 44-pin 400 mil TSOP-II
48-ball 6mmx8mm TFBGA
PRODUCT FAMILY
Product
Family
LY61L10248A
LY61L10248A(I)
LY61L10248A
LY61L10248A(I)
Operating
Temperature
0 ~ 70℃
-40 ~ 85℃
0 ~ 70℃
-40 ~ 85℃
Vcc Range
3.0 ~ 3.6V
3.0 ~ 3.6V
2.7 ~ 3.6V
2.7 ~ 3.6V
Speed
8/10/12ns
8/10/12ns
10/12ns
10/12ns
Power Dissipation
Standby(I
SB1,
TYP.) Operating(Icc
1
,TYP.)
3mA
90/80/70mA
3mA
90/80/70mA
3mA
80/70mA
80/70mA
3mA
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. 9, Science-Based Industrial Park, Hsinchu County 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
1
®
LY61L10248A
Rev. 1.3
1M X 8 BIT HIGH SPEED CMOS SRAM
PIN DESCRIPTION
SYMBOL
A0 - A19
DQ0 – DQ7
CE#
WE#
DECODER
1024Kx8
MEMORY ARRAY
FUNCTIONAL BLOCK DIAGRAM
DESCRIPTION
Address Inputs
Data Inputs/Outputs
Chip Enable Inputs
Write Enable Input
Output Enable Input
Power Supply
Ground
No Connection
Vcc
Vss
A0-A19
OE#
V
CC
V
SS
NC
DQ0-DQ7
I/O DATA
CIRCUIT
COLUMN I/O
CE#
WE#
OE#
CONTROL
CIRCUIT
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. 9, Science-Based Industrial Park, Hsinchu County 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
2
®
LY61L10248A
Rev. 1.3
1M X 8 BIT HIGH SPEED CMOS SRAM

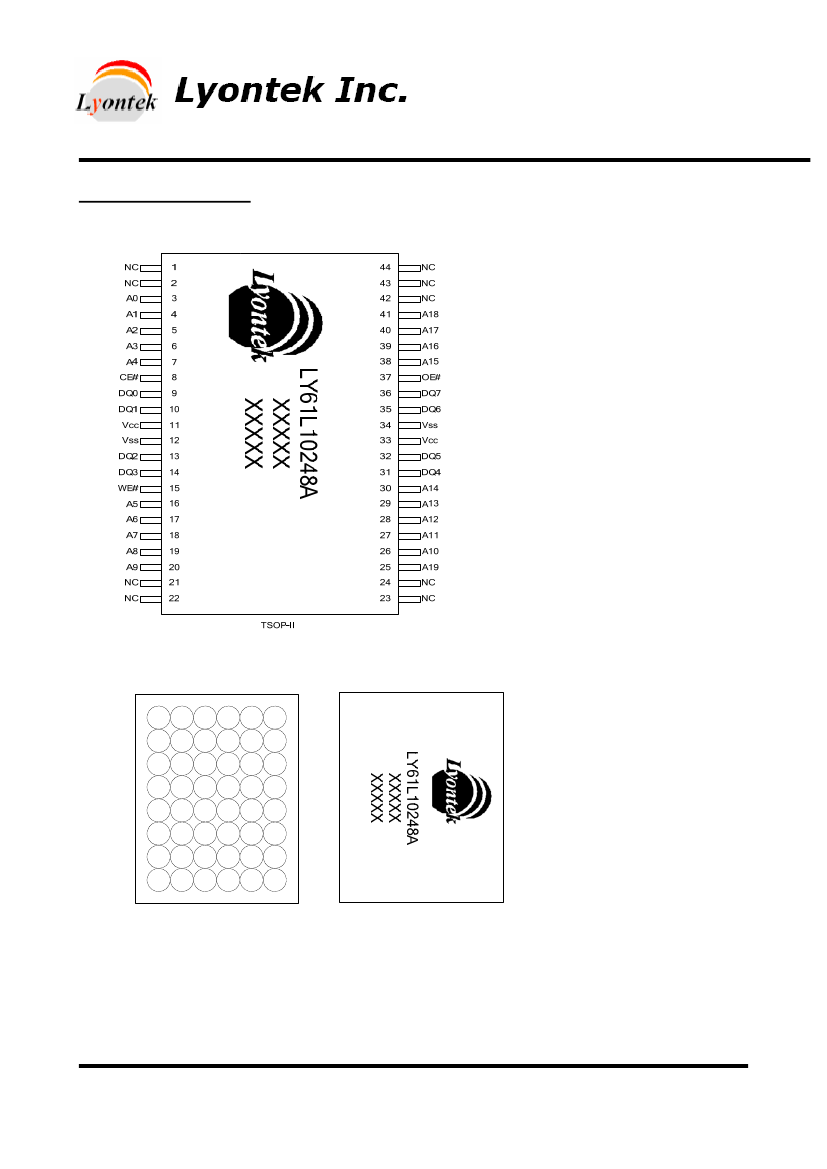

PIN CONFIGURATION
44-pin TSOP(Type II)
48-ball 6mmx8mm TFBGA
A
B
C
D
E
F
G
H
NC
NC
DQ0
OE#
NC
NC
A0
A3
A5
A1
A4
A6
A7
A2
CE#
NC
NC
NC
DQ4
Vss DQ1 A17
Vcc DQ2
DQ3
NC
A18
NC
NC
A8
NC
A14
A12
A9
DQ5 Vcc
A16 DQ6 Vss
A15
NC
DQ7
NC
A19
A13 WE#
A10
A11
1
2
3
4
TFBGA
5
6
TFBGA
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. 9, Science-Based Industrial Park, Hsinchu County 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
3
®
LY61L10248A
Rev. 1.3
1M X 8 BIT HIGH SPEED CMOS SRAM
SYMBOL
V
T1
V
T2
ABSOLUTE MAXIMUN RATINGS*
PARAMETER
Voltage on V
CC
relative to V
SS
Voltage on any other pin relative to V
SS
RATING
UNIT
-0.5 to 4.6
V
-0.5 to V
CC
+0.5
V
0 to 70(C grade)
℃
Operating Temperature
T
A
-40 to 85(I grade)
℃
Storage Temperature
T
STG
-65 to 150
*Stresses greater than those listed under “Absolute Maximum Ratings” may cause permanent damage to the
device. This is a stress rating only and functional operation of the device or any other conditions above those
indicated in the operational sections of this specification is not implied. Exposure to the absolute maximum
rating conditions for extended period may affect device reliability.
TRUTH TABLE
MODE
Standby
Output Disable
Read
Write
Note:
CE#
H
L
L
L
OE#
X
H
L
X
WE#
X
H
H
L
I/O OPERATION
High-Z
High-Z
D
OUT
D
IN
SUPPLY CURRENT
I
SB1
I
CC
I
CC
I
CC
H = V
IH
, L = V
IL
, X = Don't care.
DC ELECTRICAL CHARACTERISTICS
PARAMETER
Supply Voltage
Input High Voltage
Input Low Voltage
Input Leakage Current
Output Leakage
Current
Output High Voltage
Output Low Voltage
SYMBOL
V
CC
V
IH
*2
V
IL
I
LI
I
LO
V
OH
V
OL
Icc
Average Operating
Power supply Current
Icc
1
Standby Power
Supply Current
Standby Power
Supply Current
Isb
I
SB1
*1
TEST CONDITION
-8
-10/12
V
CC
≧
V
IN
≧
V
SS
V
CC
≧
V
OUT
≧
V
SS
,
Output Disabled
I
OH
= -4mA
I
OL
=8mA
CE# = V
IL
, I
I/O
= 0mA
;f=max
-8
-10
-12
-8
-10
-12
MIN.
3.0
2.7
2.2
- 0.3
-1
-1
2.4
-
-
-
-
-
-
-
-
-
TYP.
3.3
3.3
-
-
-
-
-
-
*4
MAX.
3.6
3.6
V
CC
+0.3
0.8
1
1
-
0.4
140
130
120
120
110
100
40
25
UNIT
V
V
V
V
µA
µA
V
V
mA
mA
mA
mA
mA
mA
mA
mA
CE#
≦
0.2, Other pin is
at 0.2V or Vcc-0.2V
I
I/O
= 0mA;f=max
CE#
≧Vih
Other pin is at Vil or Vih
CE#
≧
V
CC
- 0.2V;
Other pin is at 0.2V or Vcc-0.2V
110
100
90
90
80
70
-
3
Notes:
1. V
IH
(max) = V
CC
+ 2.0V for pulse width less than 6ns.
2. V
IL
(min) = V
SS
- 2.0V for pulse width less than 6ns.
3. Over/Undershoot specifications are characterized on engineering evaluation stage, not for mass production test.
4. Typical values are included for reference only and are not guaranteed or tested.
Typical valued are measured at V
CC
= V
CC
(TYP.) and T
A
= 25℃
