C93404 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> C93404

C93404: DescriptionRF RELAY, DPDT, MOMENTARY, 0.003A (COIL), 48VDC (COIL), 150mW (COIL), 1.25A (CONTACT), 150VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT; CategoryTopical application Mechanical and electrical/engineering/automation; File Size21KB，2 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

C93404 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C93404	-	-	View	Buy Now

C93404 Overview

RF RELAY, DPDT, MOMENTARY, 0.003A (COIL), 48VDC (COIL), 150mW (COIL), 1.25A (CONTACT), 150VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT

C93404 Parametric

Parameter Name	Attribute value
maximum isolation	-14.2 dB
Minimum operating frequency	100 MHz
Maximum operating frequency	900 MHz
Minimum operating temperature	-55 Cel
Maximum operating temperature	85 Cel
Processing package description	ROHS COMPLIANT
EU RoHS regulations	Yes
state	Active
Relay type	RF RELAY
width	10 mm
high	11 mm
length or diameter	20.2 mm
Maximum DC coil current	0.0030 A
coil_input_supply_type	DC
DC coil operating voltage	17.4 V
coil_power__mw_	150
DC coil release voltage	2.4 V
Coil resistance	15486 ohm
Maximum DC coil voltage	48 V
contact_ac_max_rating_r_load	1.25A@150VAC
Maximum AC contact current	1.25 A
Maximum DC contact current	1.25 A
contact_dc_max_rating_r_load	1.25A@150VDC
contact_output_supply_type	AC/DC
Maximum AC contact voltage	150 V
Maximum DC contact voltage	150 V
Electrical life	200000 Cycle(s)
Maximum insertion loss	-0.9700 dB
Manufacturer Series	C934
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	10 ms
cking_method	BOX; TUBE

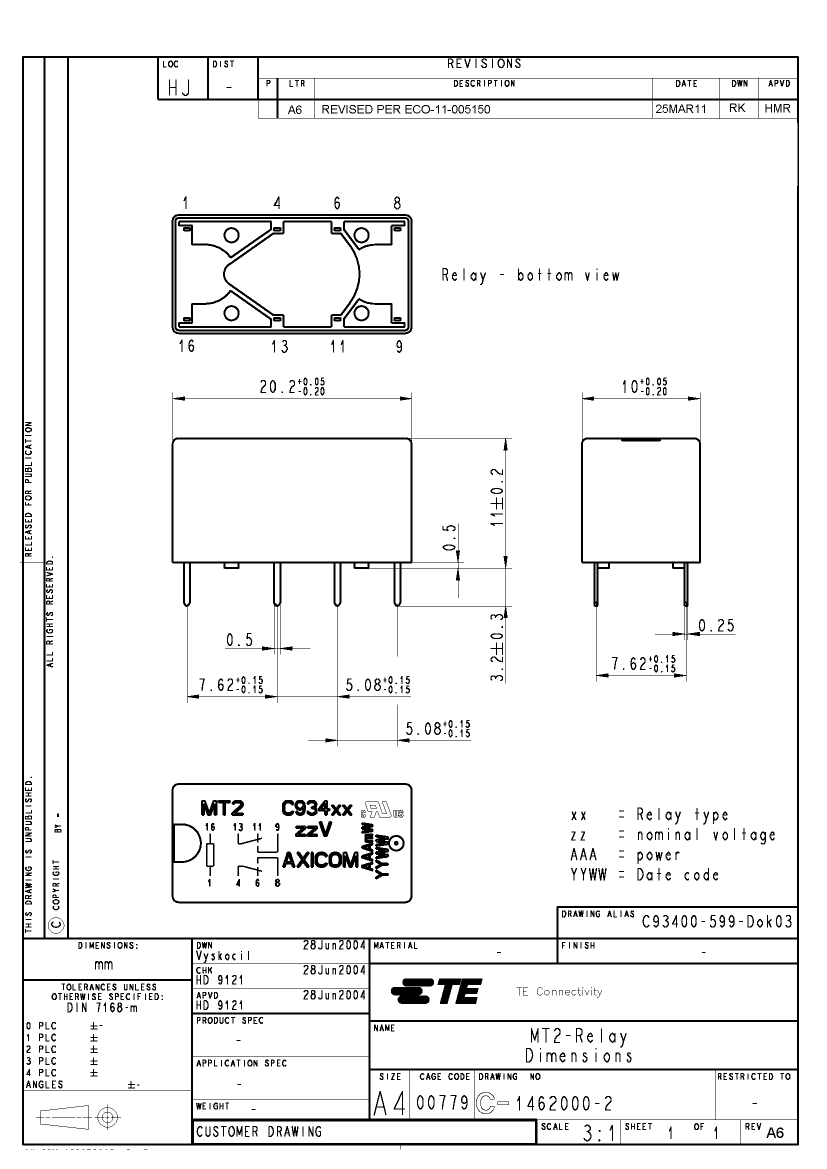

Dimensions	20.2mm X 10mm X 11mm
eference_standard	CECC; CSA; UL
Relay action	MOMENTARY
Relay function	DPDT
release time	11 ms
seal	IP67
conversion time	21 ms
terminal coating	NOT SPECIFIED
Terminal type	SOLDER
voltage standing wave ratio	1.31
dditional_feature	RELEASE TIME WITH DIODE IN PARALLEL

Preview

Download Datasheet

View All

C93404 Related Products

	C93404	C93401	C93402	C93403	C93426	C93424	C93419	C93418	C93416
Description	RF RELAY, DPDT, MOMENTARY, 0.003A (COIL), 48VDC (COIL), 150mW (COIL), 1.25A (CONTACT), 150VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT	RF RELAY, DPDT, MOMENTARY, 0.013A (COIL), 12VDC (COIL), 150mW (COIL), 1.25A (CONTACT), 150VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT	RF RELAY, DPDT, MOMENTARY, 0.013A (COIL), 12VDC (COIL), 150mW (COIL), 1.25A (CONTACT), 150VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.006A (COIL), 24VDC (COIL), 150mW (COIL), 1.25A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	RF RELAY, DPDT, MOMENTARY, 0.013A (COIL), 12VDC (COIL), 150mW (COIL), 1.25A (CONTACT), 150VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT	RF RELAY, DPDT, MOMENTARY, 0.013A (COIL), 12VDC (COIL), 150mW (COIL), 1.25A (CONTACT), 150VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT	RF RELAY, DPDT, MOMENTARY, 0.008A (COIL), 24VDC (COIL), 200mW (COIL), 1.25A (CONTACT), 150VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT	RF RELAY, DPDT, MOMENTARY, 0.013A (COIL), 12VDC (COIL), 150mW (COIL), 1.25A (CONTACT), 150VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT	RF RELAY, DPDT, MOMENTARY, 0.013A (COIL), 12VDC (COIL), 150mW (COIL), 1.25A (CONTACT), 150VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT
Processing package description	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
state	Active	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	TRANSFERRED	ACTIVE	ACTIVE
Relay type	RF RELAY	RF RELAY	RF RELAY	POWER/SIGNAL RELAY	RF RELAY	RF RELAY	RF relay	RF RELAY	RF RELAY
width	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm
high	11 mm	11 mm	11 mm	11 mm	11 mm	11 mm	11 mm	11 mm	11 mm
length or diameter	20.2 mm	20.2 mm	20.2 mm	20.2 mm	20.2 mm	20.2 mm	20.2 mm	20.2 mm	20.2 mm
Maximum DC coil current	0.0030 A	0.0130 A	0.0130 A	0.0060 A	0.0130 A	0.0130 A	0.0080 A	0.0130 A	0.0130 A
Coil resistance	15486 ohm	968 ohm	968 ohm	3872 ohm	968 ohm	968 ohm	2880 ohm	968 ohm	968 ohm
Maximum DC coil voltage	48 V	12 V	12 V	24 V	12 V	12 V	24 V	12 V	12 V
Maximum AC contact current	1.25 A	1.25 A	1.25 A	1.25 A	1.25 A	1.25 A	1.25 A	1.25 A	1.25 A
Maximum DC contact current	1.25 A	1.25 A	1.25 A	1.25 A	1.25 A	1.25 A	1.25 A	1.25 A	1.25 A
Manufacturer Series	C934	C934	C934	C934	C934	C934	C934	C934	C934
Installation features	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	Through hole installation	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT
Relay action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	Transient	MOMENTARY	MOMENTARY
Relay function	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT	Double Knife Double Throw	DPDT	DPDT
Terminal type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	welding	SOLDER	SOLDER
maximum isolation	-14.2 dB	-14.2 dB	-14.2 dB	-	-14.2 dB	-14.2 dB	-14.2 dB	-14.2 dB	-14.2 dB
Minimum operating frequency	100 MHz	100 MHz	100 MHz	-	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
Maximum operating frequency	900 MHz	900 MHz	900 MHz	-	900 MHz	900 MHz	900 MHz	900 MHz	900 MHz
Minimum operating temperature	-55 Cel	-55 Cel	-55 Cel	-	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel
Maximum operating temperature	85 Cel	85 Cel	85 Cel	-	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel
EU RoHS regulations	Yes	Yes	Yes	-	Yes	Yes	Yes	Yes	Yes
DC coil operating voltage	17.4 V	8.6 V	8.6 V	-	8.6 V	8.6 V	15.6 V	8.6 V	8.6 V
DC coil release voltage	2.4 V	1.2 V	1.2 V	-	1.2 V	1.2 V	2.4 V	1.2 V	1.2 V
Maximum AC contact voltage	150 V	150 V	150 V	-	150 V	150 V	150 V	150 V	150 V
Maximum DC contact voltage	150 V	150 V	150 V	-	150 V	150 V	150 V	150 V	150 V
Electrical life	200000 Cycle(s)	200000 Cycle(s)	200000 Cycle(s)	-	200000 Cycle(s)	200000 Cycle(s)	200000 Cycle(s)	200000 Cycle(s)	200000 Cycle(s)
Maximum insertion loss	-0.9700 dB	-0.9700 dB	-0.9700 dB	-	-0.9700 dB	-0.9700 dB	-0.9700 dB	-0.9700 dB	-0.9700 dB
operating hours	10 ms	10 ms	10 ms	-	10 ms	10 ms	10 ms	10 ms	10 ms
release time	11 ms	11 ms	11 ms	-	11 ms	11 ms	11 ms	11 ms	11 ms
seal	IP67	IP67	IP67	-	IP67	IP67	IP67	IP67	IP67
conversion time	21 ms	21 ms	21 ms	-	21 ms	21 ms	21 ms	21 ms	21 ms
terminal coating	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
voltage standing wave ratio	1.31	1.31	1.31	-	1.31	1.31	1.31	1.31	1.31
Lead-free	-	Yes	Yes	-	Yes	Yes	Yes	Yes	Yes
Coil power	-	150 mW	150 mW	150 mW	150 mW	150 mW	200 mW	150 mW	150 mW
