BR7215: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size35KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

BR7215 Overview

RF AMPLIFIER MODEL

BR7215 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	30 dB
Maximum input power (CW)	20 dBm
Maximum operating frequency	200 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	1.5
Base Number Matches	1

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TR7215

Features

!

High Gain: 31.5 dB Typical

!

Output Power: +13 dBm Typical

!

Environmental Screening Available

Available as:

TR7215, 4 Pin TO-8B (T8)

RN7215, 4 Pin Surface Mount (SM19)

BR7215, Connectorized Housing (H2)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+45 dBm (Typ.)

Second Order Two Tone Intercept Point.........+39 dBm (Typ.)

Third Order Two Tone Intercept Point.............+26 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

In

Out

TYPICAL

Ta= 25 ºC

5-200 MHz

31.5

+13

-40

<1.10:1

<1.25:1

2.5

+15

58

MIN/MAX

Ta = -55 ºC to +85 ºC

5-200 MHz

30.0 Min.

+10.0 Min.

-35 Max.

1.5:1 Max.

4.0 Max.

+15 Min.

70 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 20 dBm

Short Term RF Input Power .... 200 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

mA

Note: Care should always be taken to effectively ground the case of each unit.

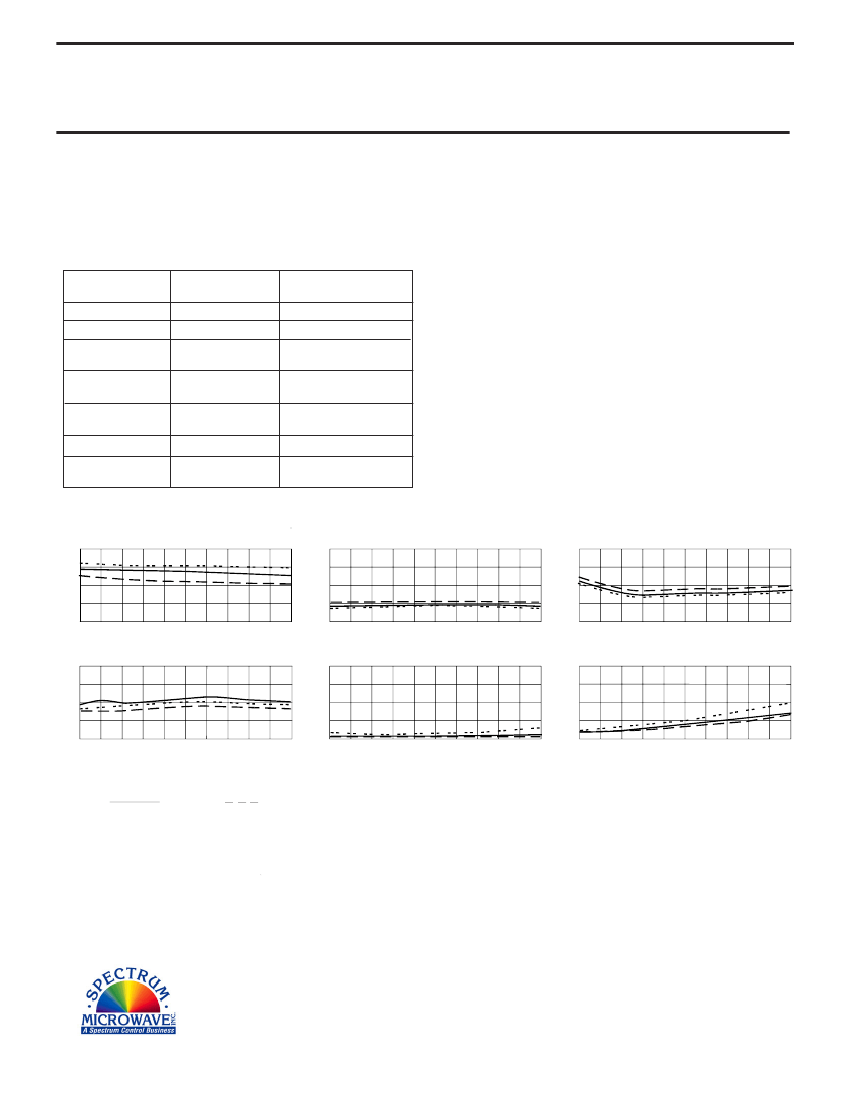

Typical Performance Data

33

32

31

30

29

Start 5 MHz

Stop 200 MHz

Gain (dB)

- 10

- 20

- 30

- 40

- 50

Reverse Isolation (dB)

Noise Figure (dB)

5

4

3

2

1

Start 5 MHz

Stop 200 MHz

Start 5 MHz

Stop 200 MHz

+15

+14

+13

+12

+11

Start 5 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Stop 200 MHz

Start 5 MHz

Input VSWR

2.0

1.5

1.0

Stop 200 MHz

Start 5 MHz

Output VSWR

Stop 200 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Linear S-Parameters

FREQ.

– – – – S11– – – –

– – – – S21– – – –

– – – – S12– – – –

– – – – S22– – – –

Mag

Deg

Mag

Deg

Mag

Deg

Mag

Deg

MHz

=========================================================================================================

5

25

50

75

100

125

150

175

200

.03

.01

.02

.04

.05

.04

.03

.05

- 54

- 86

-160

-150

-148

-162

161

147

39.35

38.74

38.53

38.23

38.26

38.18

37.93

38.06

2

- 9

- 19

- 28

- 37

- 46

- 56

- 66

- 75

.01

4

- 2

10

21

7

29

15

31

27

.07

.08

.09

.10

.12

.13

.12

.14

.16

-175

-176

-168

-175

178

173

174

172

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

7/6/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

BR7215 Related Products

	BR7215	RN7215	TR7215
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COMPONENT	COMPONENT
Gain	30 dB	30 dB	30 dB
Maximum input power (CW)	20 dBm	20 dBm	20 dBm
Maximum operating frequency	200 MHz	200 MHz	200 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz
Maximum operating temperature	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	1.5	1.5	1.5
Maker	-	API Technologies	API Technologies
