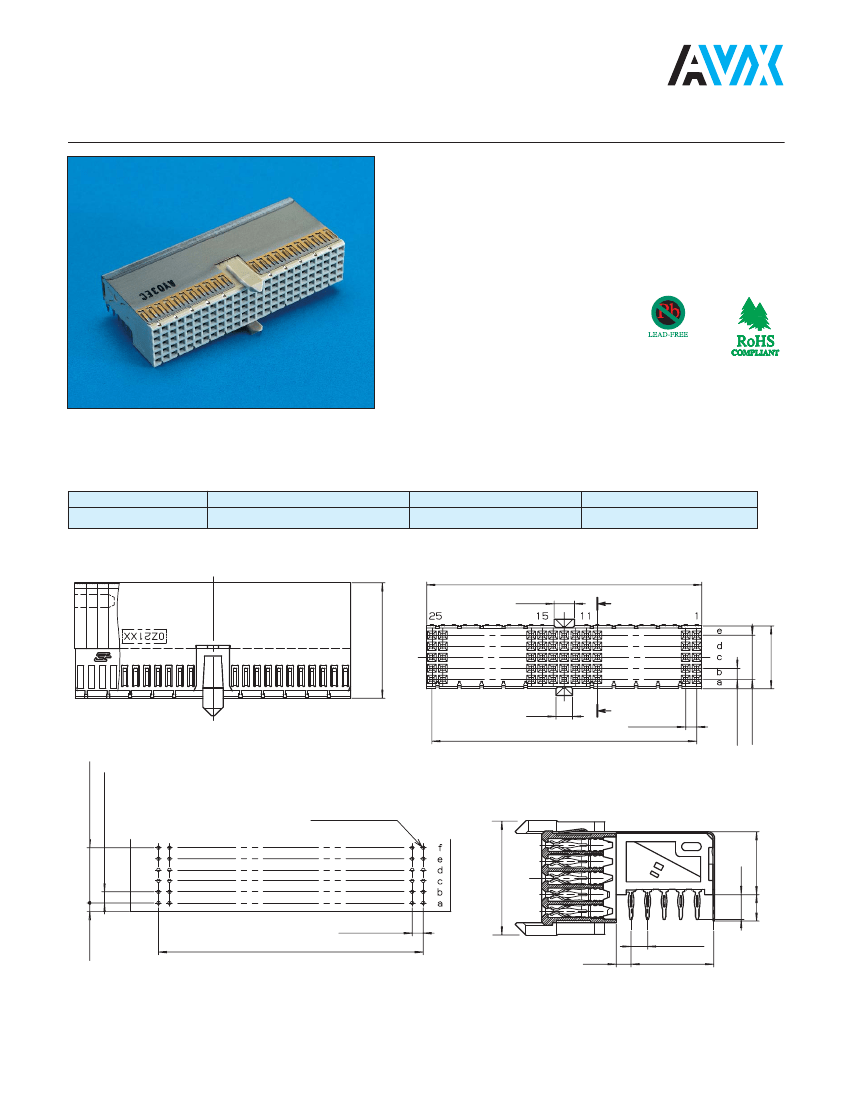

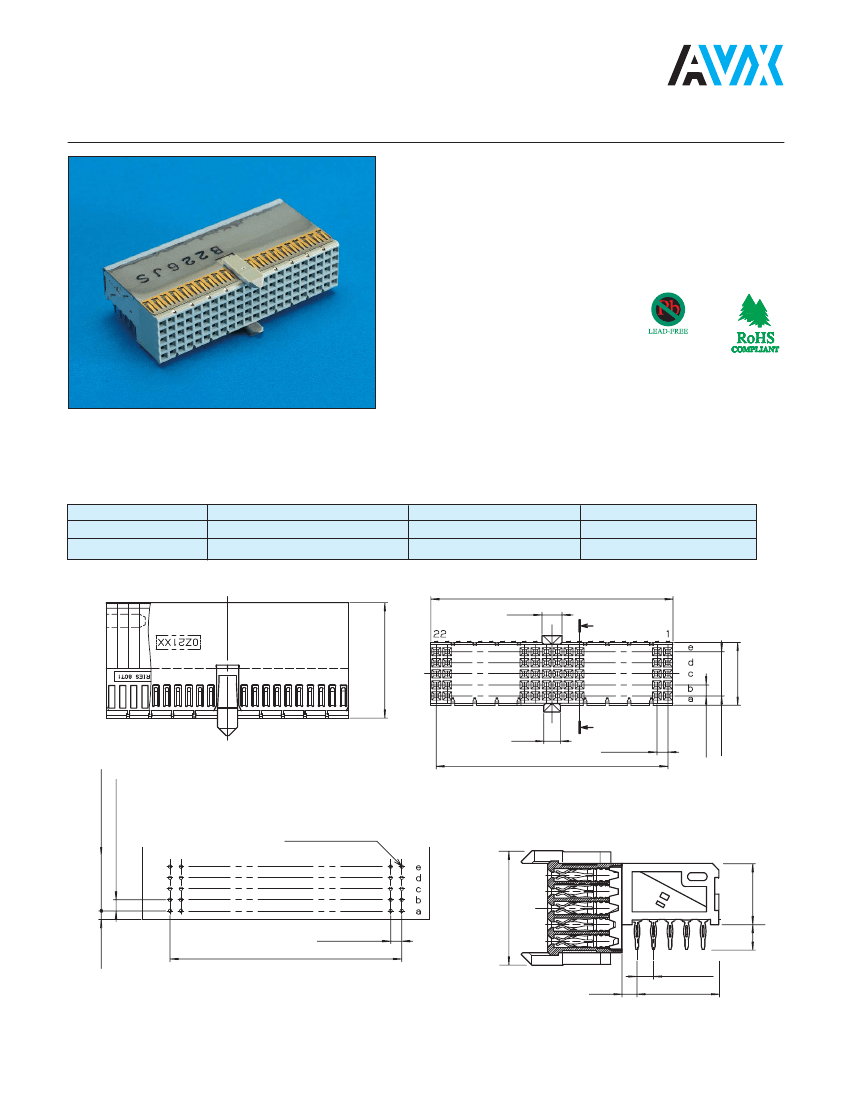

Type AB Right Angle Female
for Daughter Cards
Series 8071
•
•
•
•
•
•
110 contacts in a 5 x 22 configuration
Available with or without upper shield
Designed for gas tight press-fit installation
Available with or without upper ground return shield
Prealignment guides
This connector can be used by itself or in conjunction with a Type
A, B, C female connector
LEAD-FREE COMPATIBLE
COMPONENT
27 8071 110 003 XXX+
27 8071 110 013 XXX+
XXX =
Plating Code
833
863
= Type B 22 Vertical Female without upper shield
= Type B 22 Vertical Female with upper shield
Contact Area
0.1µm min. Au.65µm Pd/Ni
0.76µm min. Au
Press-fit Area
1.5-3.0µm Sn
1.5-3.0µm Sn
Under Coat
Nickel 1.2-3.0µm Ni
Nickel 1.2-3.0µm Ni
44.0 MAX.
3.65
X
20.9
3.0
2 x 21 = 42.0
2 x 4 = 8.0
±0.1
2.0
±0.1
TYP.
X
2.0 TYP.
110 -Ø0.6
±0.05
2.0 TYP.
2 x 4 = 8.0
2.0 TYP.
2 x 4 = 8.0
3.0
7.4
1.5 MAX.
2.0
±0.1
TYP.
2 x 21 = 42.0
±0.1
RECOMMENDED P.C. BOARD LAYOUT
(COMPONENT SIDE)
1.8
13.85
11.4
25
Type AB Right Angle Female
for Daughter Cards
Series 8071
•
•
•
•
•
•
125 contacts in a 5 x 25 configuration
Available with or without upper shield
Designed for gas tight press-fit installation
Available with or without upper ground return shield
Prealignment guides
This connector can be used by itself or in conjunction with Type
A, B & C female connectors
LEAD-FREE COMPATIBLE
COMPONENT
27 8071 125 003 863+
27 8071 125 013 863+
Plating Code
863
= Type AB Right Angle Female without upper shield
= Type AB Right Angle Female with upper shield
Press-fit Area
1.5-3.0µm Sn
Under Coat
1.2-3.0µm Ni
Contact Area
0.76µm min. Au
50.0 MAX.
3.65
20.9
X
3.0
2 x 24 = 48.0
2 x 5 = 10.0
±0.1
2.0
±0.1
TYP.
X
2.0 TYP.
150 -Ø0.6
±0.05
13.85
1.5 MAX.
2.0
±0.1
TYP.
2 x 24 = 48.0
±0.1
1.8
RECOMMENDED P.C. BOARD LAYOUT
(COMPONENT SIDE)
2.0 TYP.
2 x 5 = 10.0
26
3.2
3.0
7.6
2.0 TYP.
2 x 4 = 8.0
11.4
