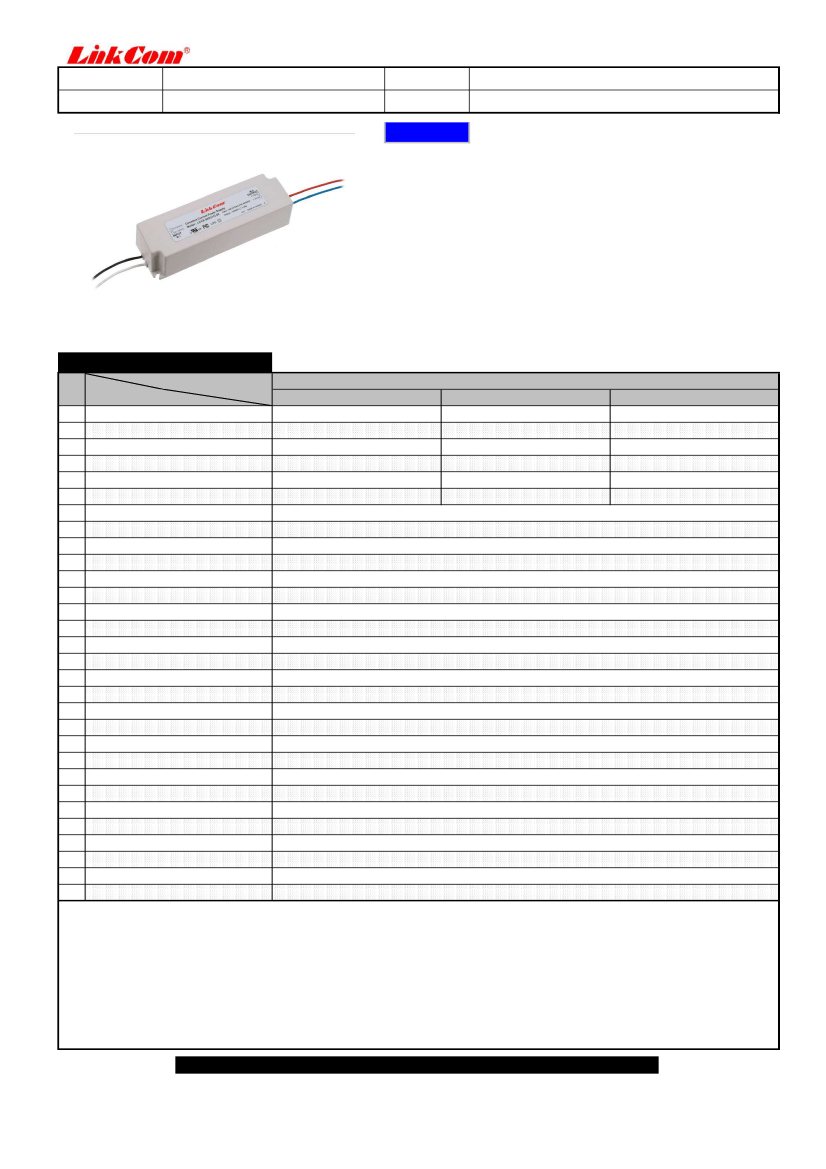

LCCE-025X901: DescriptionAC Input 90~305Vac SCP / OVP / OCP; File Size106KB，2 Pages; ManufacturerLinkCom; Websitehttp://www.linkcom.com.tw

Download Datasheet View All

LCCE-025X901 Overview

AC Input 90~305Vac SCP / OVP / OCP

Preview

Download Datasheet

View All

LinkCom Manufacturing Co., Ltd

Model NO.

Part NO.

LCCE-025 901

PLCCE0025 901

Model Name

SIZE

Constant Current Power Supply

134 * 42 * 33.1 mm【5.28 * 1.65 * 1.3 inch】

FEATURES

◆

AC Input 90~305Vac

◆

Protection: SCP / OVP / OCP

◆

High Operating ambient Temp: -20℃ ~ +60℃

◆

Power Factor:>0.95@115Vac;>0.9@230Vac;@full load

◆

Safety: UL / TUV / CB / CQC

◆

EMC: CE / FCC

◆

Comply with Indoor/Outdoor Waterproof (IP 67)

◆

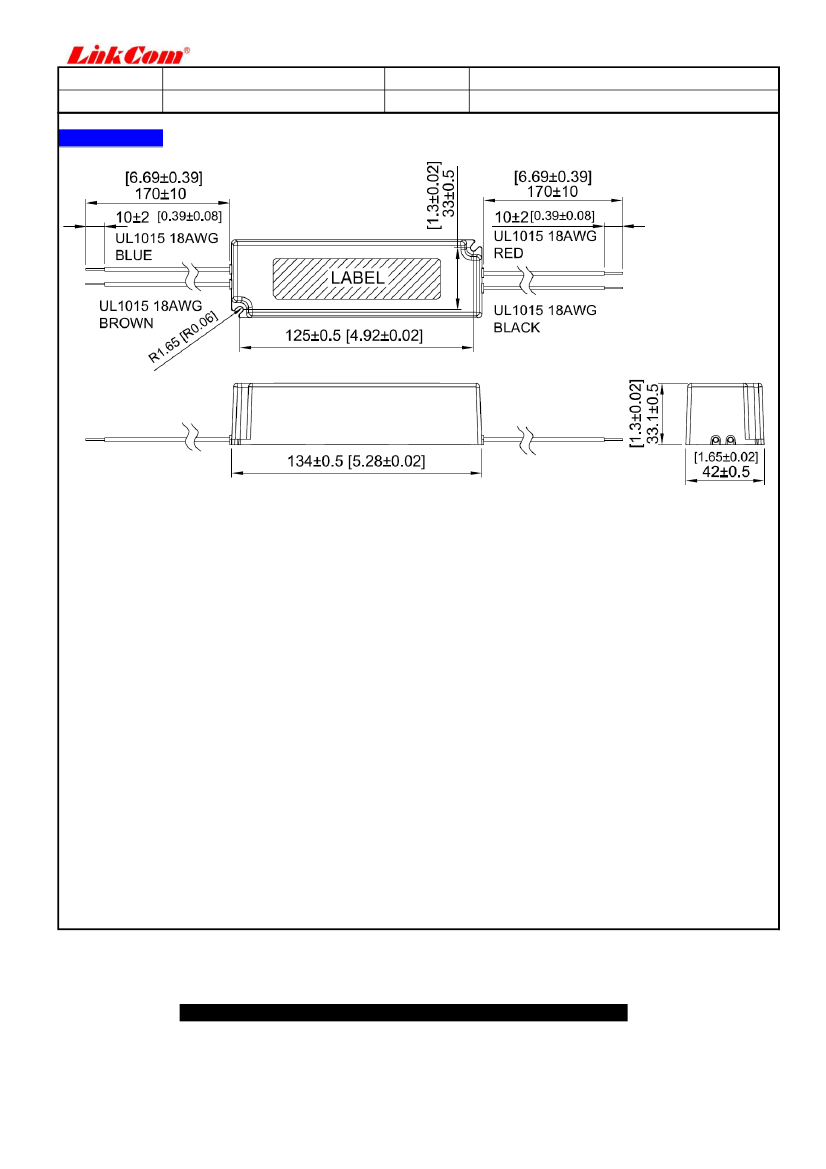

Dimension (L*W*H): 134 * 42 * 33.1 mm

◆

Dimension (L*W*H): 5.28 * 1.65 * 1.3 inch

◆

ROHS Compliant

Module : LCCE-025 901

*(8)

MODEL

SPECIFICATION

DC OUTPUT VOLTAGE RANGE (V)

PRESET ACCURACY (%) *(7)

OUTPUT CURRENT(A) *(5)

O/P NOISE (P-P, V) *(3)

LINE REGULATION (%) *(6)

LOAD REGULATION (%)

DC OUTPUT POWER

EFFICIENCY(typ @Full Load)

INPUT VOLTAGE RANGE

INPUT FREQUENCY

ACTIVE POWER FACTOR

INRUSH CURRENT (typ)

AC CURRENT

LEAKAGE CURRENT

SHORT CIRCUIT PROTECTION

OVER CURRENT PROTECTION

OVER V, PROTECTION

21.6 W

84%

90-305VAC, 127-431VDC, Normal：100-277VAC

Range:47-63Hz, Normal：50-60Hz

PF>0.95@115VAC , PF>0.9 @230VAC at full load and rated output voltage

COLD START 10A @ 230VAC

0.4A/115VAC 0.2A/230VAC

<0.7mA/240VAC

short circuit protection will restart automatically after the fault condition is removed

Constant Current

Shut down and latch off o/p voltage , re-power on to recover

-20 to +60℃@full load

-40 to +80℃

10 to +90%, non-cond.

0.03% /

℃

(0-50℃, typ)

UL60950-1 / TUV EN61347-2-13 / CB / CQC

CE EN55015 / FCC part 18

134 * 42 * 33.1 mm【5.28 * 1.65 * 1.3 inch】

min.

0.9

norm.

*,# =SEE NOTES BELOW

LCCE-025 901

max.

OPERATING TEMP.*(4)

STORAGE TEMPERATURE

RELATIVE HUMIDITY

TEMP. COEFFICIENT

SAFETY

EMI

DIMENSIONS(L*W*H)

NOTES：(1)All parameters not specially mentioned are measured 230VAC input.

(2)All specifications Typical @25℃, unless otherwise noted, at normal line and load.

(3)Ripple and Noise measured directly at pins/terminals at nom. load, 0.1uF bypass and 47uF electrolytic, pk-pk @20MHz bandwidth.

(4)Specified for free-air convection cooling.

(5)Minimum load is NOT required for proper operation .

(6)Line regulation measured from 100VAC to 277VAC.

(7)Preset accuracy measured at normal load, 120VAC input.

(8)100% Production Tested.

※
