VXO-052000-7C5S0

Description
Oscillator, 1MHz Min, 52MHz Max, 52MHz Nom
CategoryPassive components    oscillator
File Size218KB,1 Pages
ManufacturerAker Technology Company Ltd
Websitehttp://www.aker-usa.com
Environmental Compliance
Download Datasheet Parametric Compare View All

VXO-052000-7C5S0 Overview

Oscillator, 1MHz Min, 52MHz Max, 52MHz Nom

VXO-052000-7C5S0 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompli
Installation featuresSURFACE MOUNT
Number of terminals6
Maximum operating frequency52 MHz
Minimum operating frequency1 MHz
Nominal operating frequency52 MHz
Maximum operating temperature70 °C
Minimum operating temperature-10 °C
Package body materialCERAMIC
Encapsulate equivalent codeDILCC6,.2
power supply5 V
Certification statusNot Qualified
Maximum slew rate30 mA
Nominal supply voltage5 V
surface mountYES
Base Number Matches1
VOLTAGE CONTROLLED
CRYSTAL OSCILLATORS

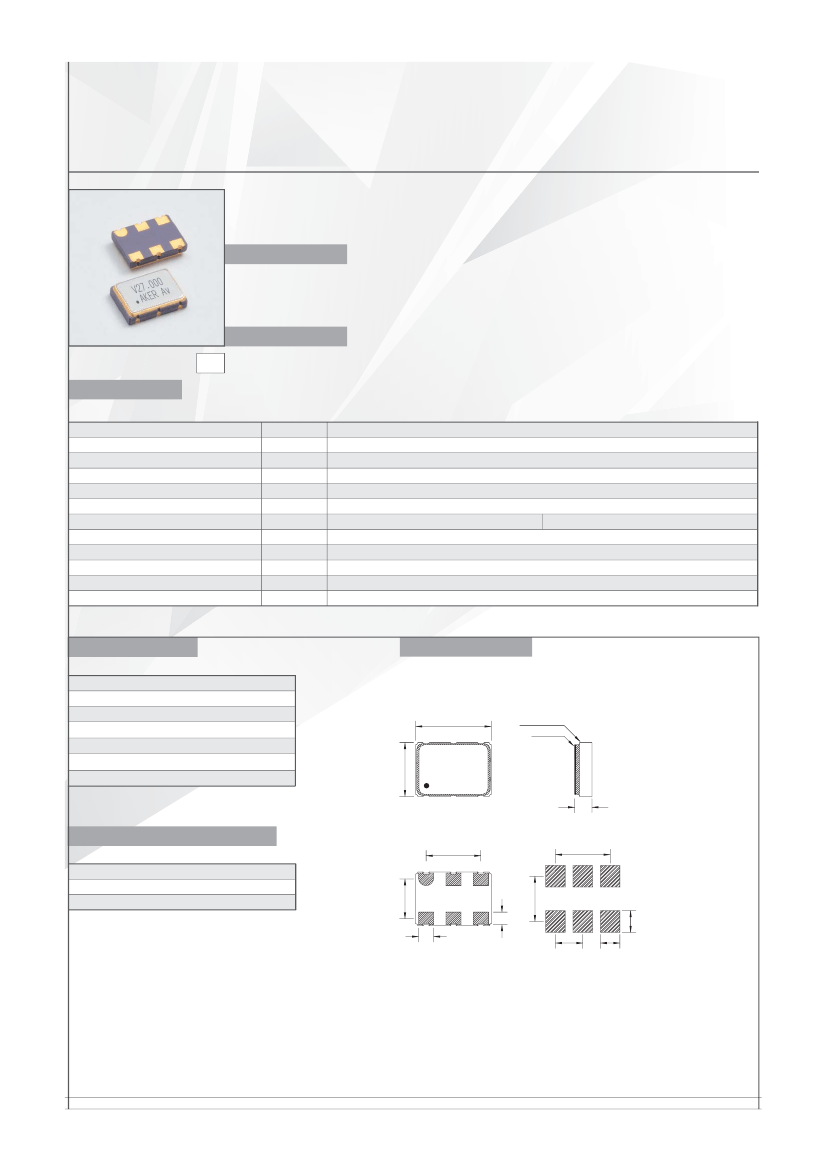

VXO-751 SERIES
VOLTAGE CONTROLLED CRYSTAL OSCILLATOR
Applications
Wireless PBX system
Broad Casting
Repeaters for the Cable
and Phone Products
Seam Seal
Frequency Adjustable
Actual Size:
Low Power Consumption
Sonet/SDH/ATM
Video/Transmission
ADSL/XDSL
Heavy Loading Capability
RoHS Compliant
Features
Specification
MODEL
FREQUENCY RANGE
MHz
ppm
FREQUENCY STABILITY*
ppm
FREQUENCY CONTROL RANGE
CONTROL VOLTAGE RANGE
V
OPERATING TEMPERATURE
°C
STORAGE TEMPERATURE
°C
POWER SUPPLY VOLTAGE
VDC
OUTPUT SYMMETRY
%
INPUT CURRENT
mA(Max.)
OUTPUT LOAD
RISE / FALL TIME
ns(Max.)
AGING
ppm/Year
*Inclusive of 25°C±3°C & Operating Temperature Range.
VXO-751L
VXO-751C
1.000 ~ 52.000
A: ± 100 B: ± 50 X: ± 30 C: ± 25 ( Vcon at 50% VDC)
± 30 ~ ± 150 Min.
10% VDC ~ 90% VDC
- 10 ~ + 70
,
- 40 ~ + 85
- 55 ~ + 125
+3.3±10%
+5.0±10%
40 ~ 60 ( 45 ~ 55 is available)
30
15 pF
5
±5
Pin Connection
No.
#1
#2
#3
#4
#5
#6
Connection
VCON
E/D
GND
Output
N.C.
VDC
Dimension(mm)
VXO-751
<TOP>
7.0 ± 0.1
#6
5.0 ± 0.1
#5
#4
<SIDE>
Ceramic Base
Metal Lid
AKER
#1
#2
#3
1.9 Max.
Enable / Disable Function
E/D ( #2 )
HIGH (Open)
LOW
OUTPUT ( #4 )
Operating
High impedance
#1
3.63
<BOTTOM>
5.08
#2
#3
4.20
1.17
<SUGGESTED LAYOUT>
5.08
#6
1.4
#5
#4
2.54
1.8
2.0

VXO-052000-7C5S0 Related Products

VXO-052000-7C5S0 VXO-052000-7C3S4 VXO-052000-7C3S0 VXO-052000-7C5A0 VXO-052000-7C5M4
Description Oscillator, 1MHz Min, 52MHz Max, 52MHz Nom Oscillator, 1MHz Min, 52MHz Max, 52MHz Nom Oscillator, 1MHz Min, 52MHz Max, 52MHz Nom Oscillator, 1MHz Min, 52MHz Max, 52MHz Nom Oscillator, 1MHz Min, 52MHz Max, 52MHz Nom
Is it Rohs certified? conform to conform to conform to conform to conform to
Reach Compliance Code compli compli compli compli compliant
Installation features SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Number of terminals 6 6 6 6 6
Maximum operating frequency 52 MHz 52 MHz 52 MHz 52 MHz 52 MHz
Minimum operating frequency 1 MHz 1 MHz 1 MHz 1 MHz 1 MHz
Nominal operating frequency 52 MHz 52 MHz 52 MHz 52 MHz 52 MHz
Maximum operating temperature 70 °C 85 °C 70 °C 70 °C 85 °C
Minimum operating temperature -10 °C -40 °C -10 °C -10 °C -40 °C
Package body material CERAMIC CERAMIC CERAMIC CERAMIC CERAMIC
Encapsulate equivalent code DILCC6,.2 DILCC6,.2 DILCC6,.2 DILCC6,.2 DILCC6,.2
power supply 5 V 3.3 V 3.3 V 5 V 5 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum slew rate 30 mA 30 mA 30 mA 30 mA 30 mA
Nominal supply voltage 5 V 3.3 V 3.3 V 5 V 5 V
surface mount YES YES YES YES YES
Base Number Matches 1 1 1 1 1
