5219-02A: Description2.36mm Diameter Standard; File Size29KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

5219-02A Overview

2.36mm Diameter Standard

Preview

Download Datasheet

View All

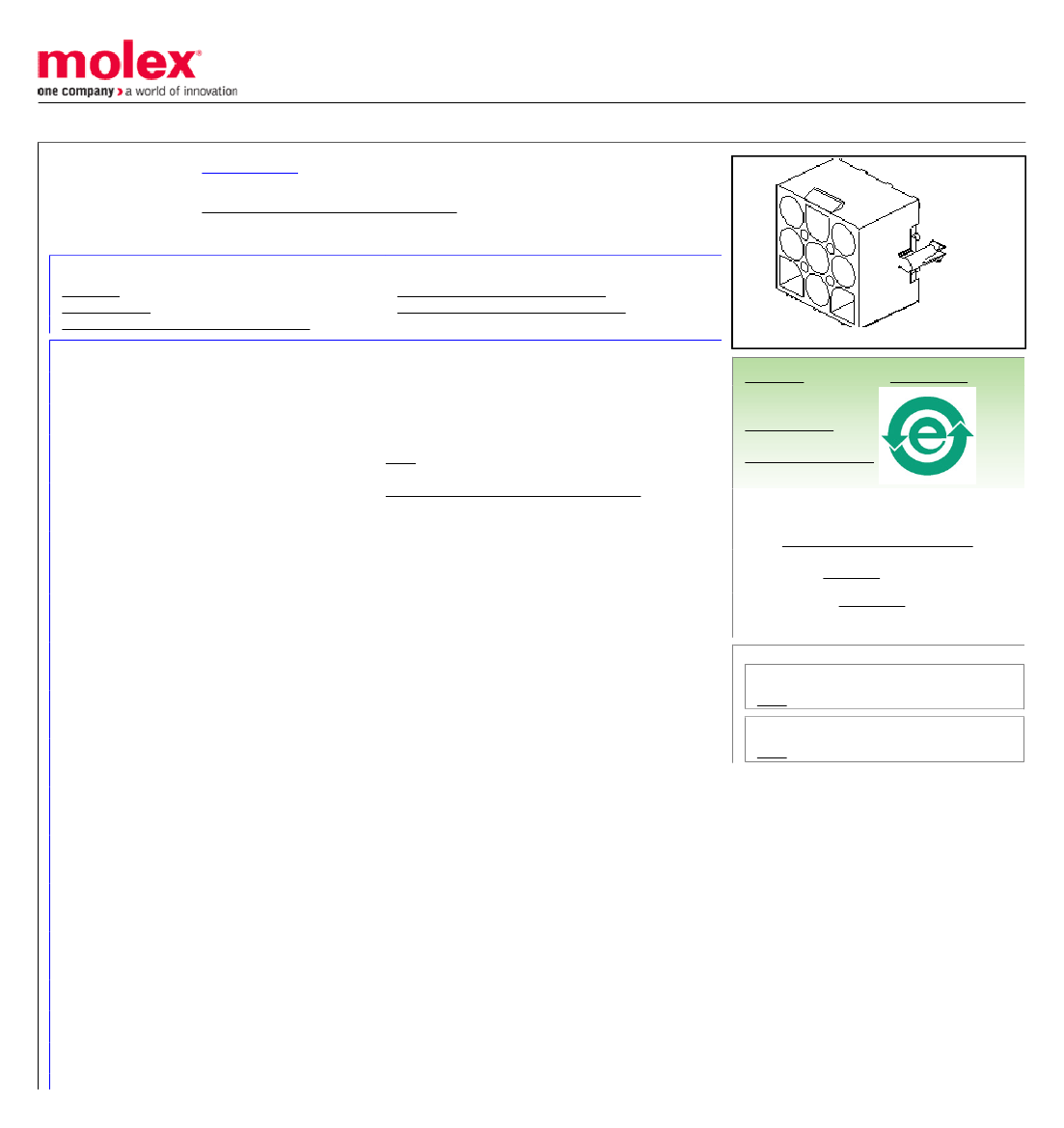

This document was generated on 02/19/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

15-31-1026

Active

Standard .093" Pin and Socket Connectors

2.36mm Diameter Standard .093" Pin and Socket Header, Vertical, with Beveled Plastic

Peg, 2 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-3191-003 (PDF)

Test Summary TS-5219-002 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Agency Certification

CSA

LR19980

E29179

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

General

Product Family

Series

Application

Overview

Product Name

UPC

PCB Headers

5219

Power, Wire-to-Board

Standard .093" Pin and Socket Connectors

Standard .093"

800753604537

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

94V-2

None

Yes

Tin

2050.402/mg

Vertical

Yes

1.60mm

Bag

6.70mm

Yes

Fully

-40°C to +105°C

Through Hole

Search Parts in this Series

5219Series

Mates With

3191 Pin and Socket Receptacle Housing

Electrical

Current - Maximum per Contact

Voltage - Maximum

12A

600V

Material Info

Old Part Number

5219-02A
