DATA SHEET

SEMICONDUCTOR

YSESDAxxCT Series

Bidirectional TVS Diode

APPLICATIONS

◆

Cell Phone Handsets and Accessories

◆

Microprocessor based equipment

◆

Personal Digital Assistants (PDA’s)

◆

Notebooks, Desktops, and Servers

◆

Portable Instrumentation

◆

Peripherals

◆

Pagers

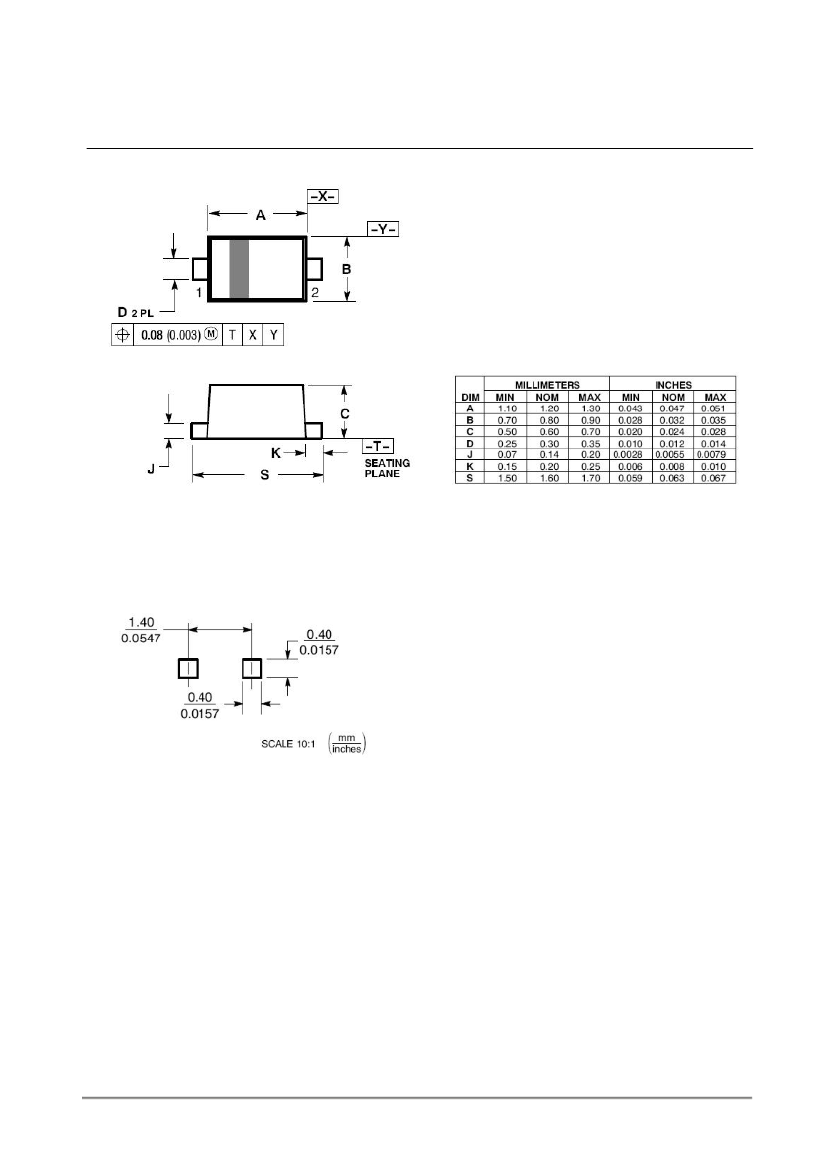

SOD-523

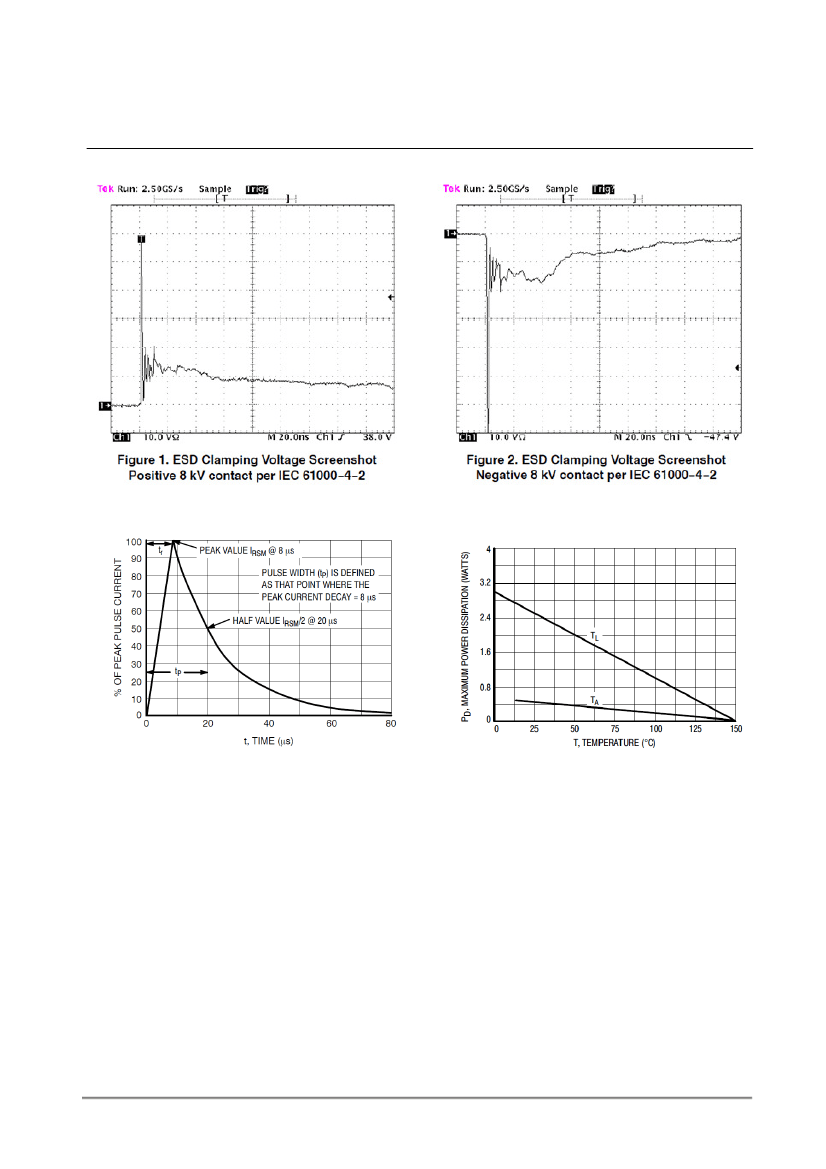

IEC COMPATIBILITY

◆

IEC61000-4-2 (ESD) ±30kV (air), ±30kV (contact)

◆

IEC61000-4-4 (EFT) 40A (5/50ηs)

PIN CONFIGURATION

FEATURES

◆

100 Watts Peak Pulse Power per Line (tp=8/20µs)

◆

Protects one bidirectional I/O line

◆

Low clamping voltage

◆

Working voltages : 3.3V, 5V and 8V

◆

Low leakage current

MECHANICAL CHARACTERISTICS

◆

SOD-523 Package

◆

Molding Compound Flammability Rating : UL 94V-O

◆

Weight 2.0 Millgrams (Approximate)

◆

Quantity Per Reel : 3,000pcs

◆

Reel Size : 7 inch

◆

Lead Finish : Lead Free

http://www.yeashin.com

REV.02 20141224
