Datasheet of 0.56 inch Three Digit 7 Segment LED Display
LD5631A/B Series - 0.56 inch Three Digit 7 Segment LED Display
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Features
14.20 mm (0.56 inch) digit high
Excellent digit appearance
Wide viewing angle
Range of emitted colors
I.C. compatible
Low power consumption
White segment, black face
RoHS compliant
Available options
Alternative emitting luminosity:
Standard or high brightness version
Alternative emitted color
Alternative face and segment color
Alternative font
Both CA and CC versions are available
Cropped terminal pins

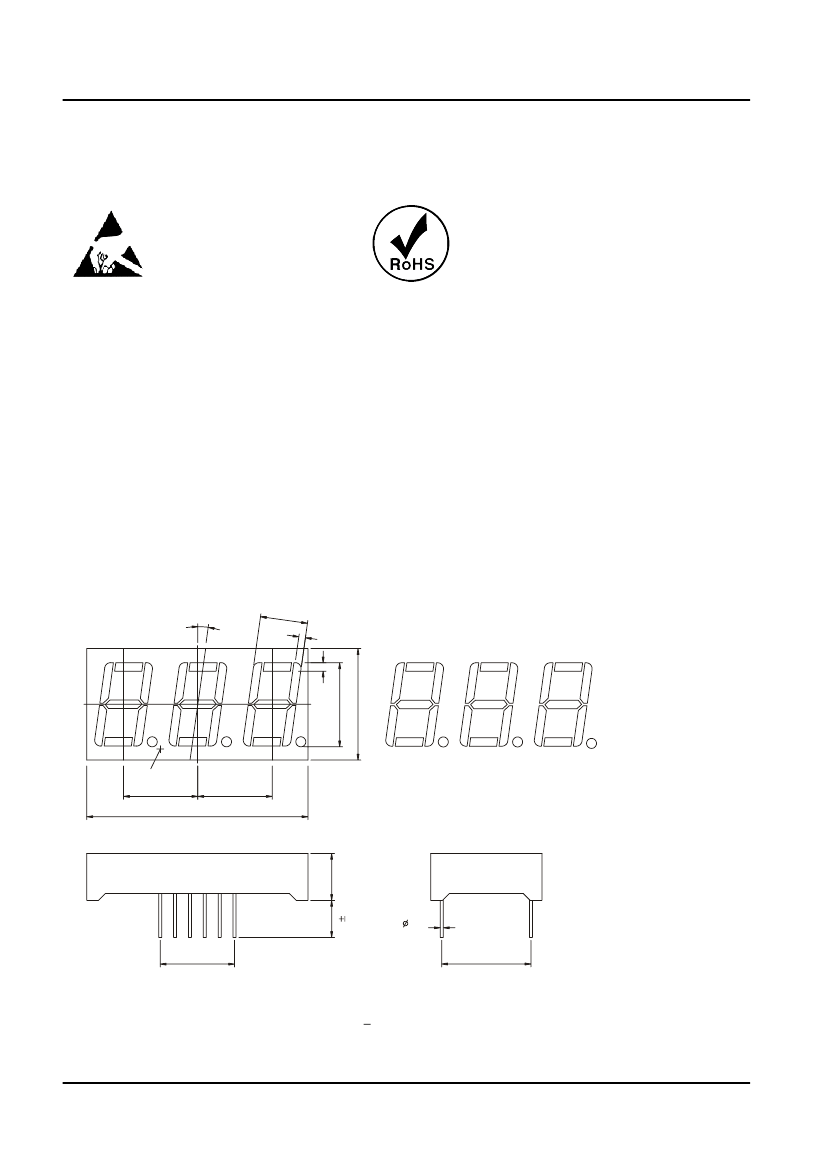

Package Dimensions
8.0°
8.10
1.35
DIG.1
DIG.2
DIG.3
A
F
19.00
1.45
14.20(.56")
G
B
E
D
C
DP
PIN 1
12.70
37.80
12.70
8.00
0.50
2.54*5=12.70
6.30
0.51
15.24
Notes:
1. All dimensions are in millimeters (inches), Tolerance is + 0.25mm(0.01inch)unless other wise noted.
2. Specifications are subject to change without notice.
3. The gap between the reflector and PCB shall not exceed 0.25mm.
SPEC NO: DS10121714
REV: A.4
CHECKED: Emily Zhou
APPROVED: M.H. Lin
PAGE: 1/3
HTTP://WWW.DISPLAY-LEDS.COM
TEL: 0086-574-86322282
DATE: Jul/20/2011
LightKey
Internal Circuit Diagram
LD5631A (Common Cathode)
12
DIG.1
9
DIG.2
Datasheet of 0.56 inch Three Digit 7 Segment LED Display
8
DIG.3
A
B
C
D
E
F
G DP A
B
C
D
E
F
G DP A
B
C
D
E
F
G DP
11
7
4
2
1
10
5
3
6 NO CONNECT
LD5631B (Common Anode)
12
DIG.1
9
DIG.2
8
DIG.3
A
B
C
D
E
F
G DP A
B
C
D
E
F
G DP A
B
C
D
E
F
G DP
11
7
4
2
1
10
5
3
6 NO CONNCET
Selection Guide
Three Digits 7 Segment LED Display, Digit Height: 14.20mm(0.56inch), External Dimensions:
37.80x19.00x8.00mm (L x W x H )
Part No.
Common
Cathode
LD5631AR
LD5631AD
LD5631AO
LD5631AY
LD5631AG
LD5631AUR
LD5631AUO
LD5631AUA
LD5631AUY
LD5631AUG
LD5631APG
LD5631AUB
LD5631AUW
Unit:
\
Common
Anode
LD5631BR
LD5631BD
LD5631BO
LD5631BY
LD5631BG
LD5631BUR
LD5631BUO
LD5631BUA
LD5631BUY
LD5631BUG
LD5631BPG
LD5631BUB
LD5631BUW
\
Material
GaAlAs
GaAlAs
GaAsP
GaAsP
GaP
AlGaInP
AlGaInP
AlGaInP
AlGaInP
AlGaInP
InGaN
InGaN
InGaN
\
Chip
Color
Super Red
Hi-Red
Orange
Yellow
Green
Ultra Red
Ultra Orange
Ultra Amber
Ultra Yellow
Ultra Green
Pure Green
Ultra Blue
Ultra White
WLD
640
640
625
588
568
640
625
605
595
573
525
470
\
nm
Iv@IF=20mA
One Seg
Min.
8
18
7
8
7
30
45
30
30
30
120
30
100
mcd
Typ.
10
25
9
10
9
45
60
45
45
45
300
45
120
mcd
Iv@IF=20mA
One DP
Min.
8
18
7
8
7
30
45
30
30
30
120
30
100
mcd
Typ.
10
25
9
10
9
45
60
45
45
45
300
45
120
mcd
SPEC NO: DS10121714
REV: A.4
CHECKED: Emily Zhou
APPROVED: M.H. Lin
PAGE: 2/3
HTTP://WWW.DISPLAY-LEDS.COM
TEL: 0086-574-86322282
DATE: Jul/20/2011
LightKey
Parameter
Datasheet of 0.56 inch Three Digit 7 Segment LED Display
Electrical Characteristics & Absolute Maximum Ratings
Electrical optical
Characteristics
Forward
Emitted color
Voltage
@ IF=20mA
Typ.
Super Red
Per Seg.
Per DP
Hi-Red
Per Seg.
Per DP
Orange
Per Seg.
Per DP
Yellow
Per Seg.
Per DP
Green
Per Seg.
Per DP
Ultra Red
Per Seg.
Per DP
Ultra Orange
Per Seg.
Per DP
Ultra Amber
Per Seg.
Per DP
Ultra Yellow
Per Seg.
Per DP
Ultra Green
Per Seg.
Per DP
Pure Green
Per Seg.
Per DP
Ultra Blue
Per Seg.
Per DP
Ultra White
Unit:
Notes:
1. At Ta = 25 °C.
2. Peak forward current at 1/10 Duty Cycle, 0.1ms Pulse.
[1]
Absolute Maximum Ratings
[1]
Reverse
Current
VR=5V
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
uA
Power
Dissipation
DC
Forward
Current
25
25
25
25
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
mA
Peak
Forward
Current
[2]
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
mA
Max.
2.2
2.2
2.2
2.2
2.5
2.5
2.5
2.5
2.5
2.5
2.6
2.6
2.6
2.6
2.6
2.6
2.6
2.6
2.6
2.6
4
4
4
4
4
4
V
60
60
60
60
80
80
80
80
80
80
60
60
65
65
65
65
65
65
75
75
110
110
120
120
120
120
mW
1.8
1.8
1.8
1.8
2.1
2.1
2.1
2.1
2.2
2.2
1.9
1.9
2
2
2
2
2
2
2.1
2.1
3.5
3.5
3.5
3.5
3.5
3.5
V
Per Seg.
Per DP
\
SPEC NO: DS10121714
REV: A.4
CHECKED: Emily Zhou
APPROVED: M.H. Lin
PAGE: 3/3
HTTP://WWW.DISPLAY-LEDS.COM
TEL: 0086-574-86322282
DATE: Jul/20/2011
