5267-11A: Description11 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector; File Size29KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

5267-11A Overview

11 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

5267-11A Parametric

Parameter Name	Attribute value
Connector type	BOARD CONNECTOR
Contact materials	NOT SPECIFIED
Terminal spacing	2.5 mm
Total number of contacts	11
EU RoHS regulations	Yes
state	Active
width	0.1930 inch
body_depth	0.2320 inch
body_diamete	1.18 inch
Shell style	RECEPTACLE
Contact surface matching	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED
Connector male and female	MALE
contact_patte	RECTANGULAR
contact_resistance	20 mohm
contact_style	RND PIN-SKT
dielectric_withstanding_voltage__v_	1000VAC
According to DIN	NO
durability	30 Cycles
Filter characteristics	NO
Comply with IEC	NO
insulation_resistance	1.00E9 ohm
insulator_col	NATURAL
insulator_material	NYLON
Manufacturer Series	5267
mating_contact_pitch__inch_	0.098
collocation information	MULTIPLE MATING PARTS AVAILABLE
Meet MIL	NO
hybrid connection	NO
mounting_option_1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
umber_of_connectors	ONE
umber_of_pcb_rows	1
Number of load rows	1
Minimum operating temperature	-40 Cel
erating_temperature_max__cel_	105
Options	GENERAL PURPOSE
cb_contact_patte	RECTANGULAR
lating_thickness__inch_	160u
larization_key	POLARIZED HOUSING
ed_current__signal_	3 A
eference_standard	UL, CSA
eliability	COMMERCIAL
sub_category	Headers and Edge Type Connectors
erminal_length	0.1380 inch
Terminal type	SOLDER
UL flammability code	94V-0
dditional_feature	SPOX, POLARIZED, SHROUDED

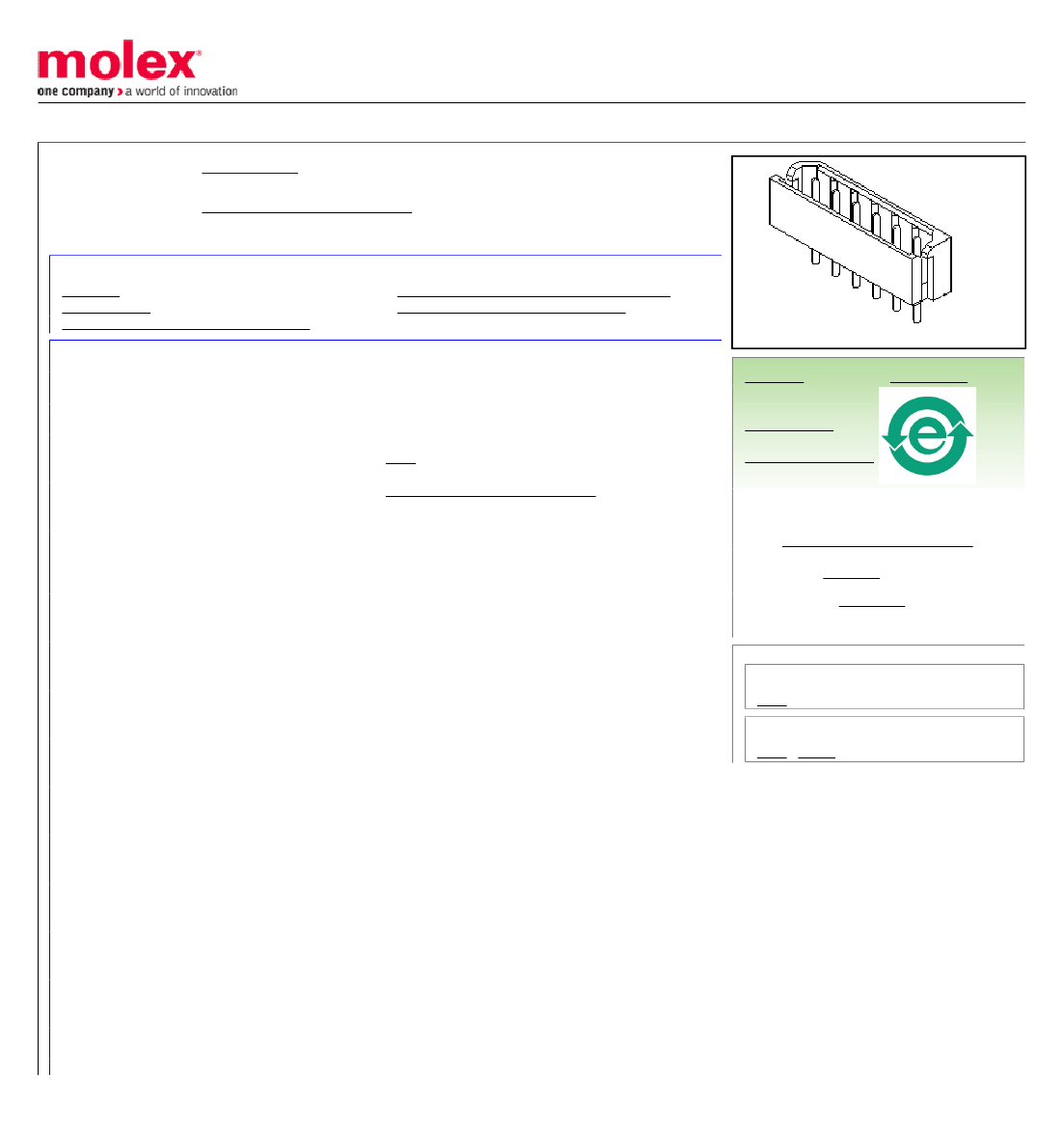

Preview

Download Datasheet

View All

This document was generated on 05/14/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

22-03-5115

Active

SPOX™ Wire-to-Board Connectors

2.50mm Pitch SPOX™ Wire-to-Board Header, Vertical, Shrouded, 11 Circuits, Tin (Sn)

Plating

Documents:

3D Model

Drawing (PDF)

Product Specification PS-5264-001 (PDF)

Packaging Specification SPK-5267-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Agency Certification

CSA

LR19980

E29179

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Low-Halogen

China RoHS

General

Product Family

Series

Application

Overview

Product Name

UPC

PCB Headers

5267

Signal, Wire-to-Board

SPOX™ Wire-to-Board Connectors

SPOX™

800753591554

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Natural

94V-0

Yes

Tin

Nylon

931.700/mg

Vertical

3.50mm

Yes

1.60mm

Bag

2.50mm

4.064µm

Yes

Fully

-40°C to +105°C

Through Hole

Search Parts in this Series

5267Series

Mates With

5264 , 42219
