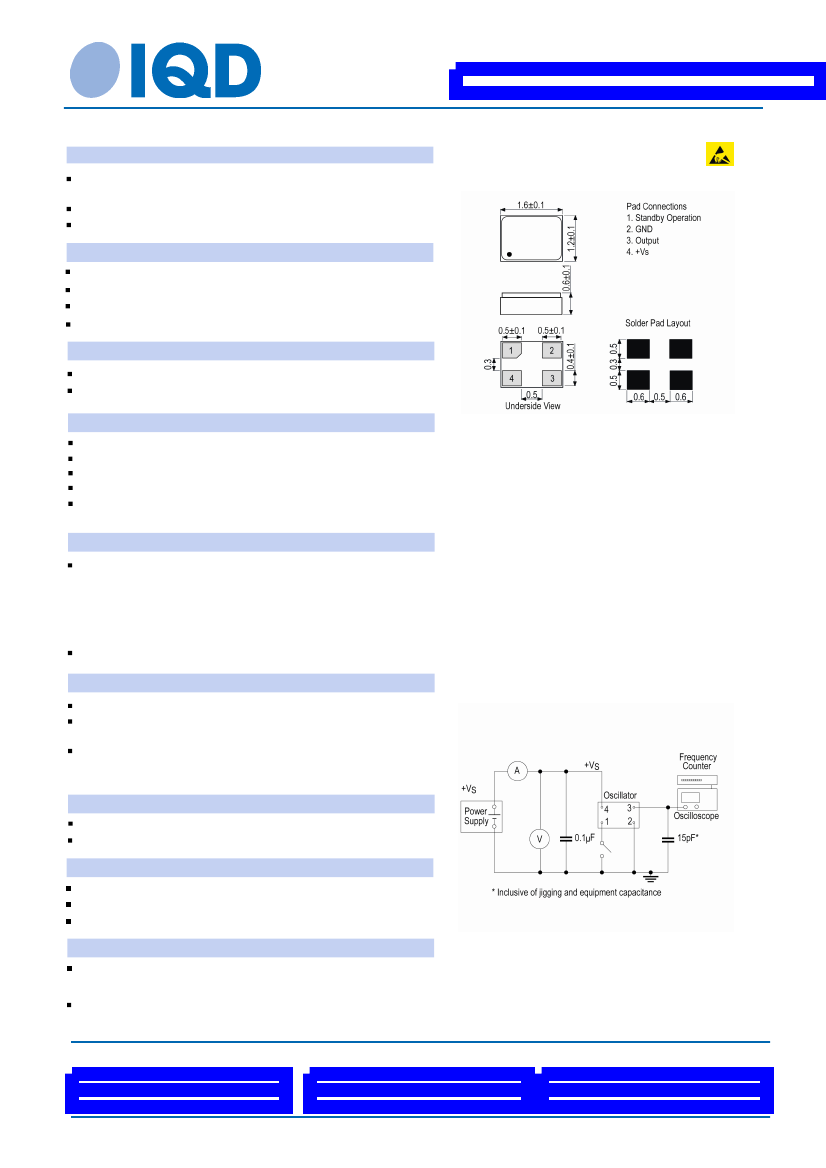

Crystal Clock Oscillator Specification
Part No. + Packaging:
LFSPXO066393Cutt
Customer Part:
Description
Standard 1.6 x 1.2mm crystal oscillator in a hermetically sealed
ceramic package with a seam sealed metal lid.
Model
IQXO-642
Model Issue number
4
Frequency Parameters
Outline (mm)
Frequency
Frequency Stability
Operating Temperature Range
Ageing
Electrical Parameters
20.0MHz
±50.00ppm
-20.00 to 70.00°C
±5ppm max/yr @ 25°C
Supply Voltage
Current Draw
Output Details
1.8V ±10%
3.000mA
CMOS
Output Compatibility
Drive Capability
15pF max
Rise and Fall Time
4.5ns max
45/55%
Duty Cycle
Output Voltage Low (Vol): 10%Vs max
Output Voltage High (Voh): 90%Vs min
Output Control
Standby Operation:
Logic ‘1’ (≥70%Vs) to pad 1 enables oscillator output.
Logic ‘0’ (≤30%Vs) to pad 1 disables oscillator output; when
disabled the oscillator output goes to the high impedance
state.
No connection to pad 1 enables oscillator output.
Standby Current: 10μA max
Environmental Parameters
Test Circuit
Storage Temperature Range: –55 to 125°C
Shock: IEC 60068-2-27: 1000g, 1ms, 3 times in each of 3
mutually perpendicular planes.
Vibration: IEC 60068-2-6: 1.5mm amplitude, 10Hz-55Hz, 1min
in 3 mutually perpendicular planes, duration 2hrs each plane
(total 6hrs).
Manufacturing Details
RoHS Terminations
RoHS Reflow Temp
Compliance
W(15±4μm), Ni(8~20μm), Au(0.2~1μm)
260±5°C for 5s max
RoHS Status (2015/863/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Cutt
Pack Size: 100
Cut tape
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 1
Printed on 3 Aug 21 14:12 using Part Data Sheet V1.0018
