384244 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 384244

384244: Description32 CONTACT(S), MALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER; CategoryThe connector The connector; File Size46KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

384244 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	384244	-	-	View	Buy Now

384244 Overview

32 CONTACT(S), MALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER

384244 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.339 inch
subject depth	0.512 inch
body length	3.701 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9174 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32

Preview

Download Datasheet

View All

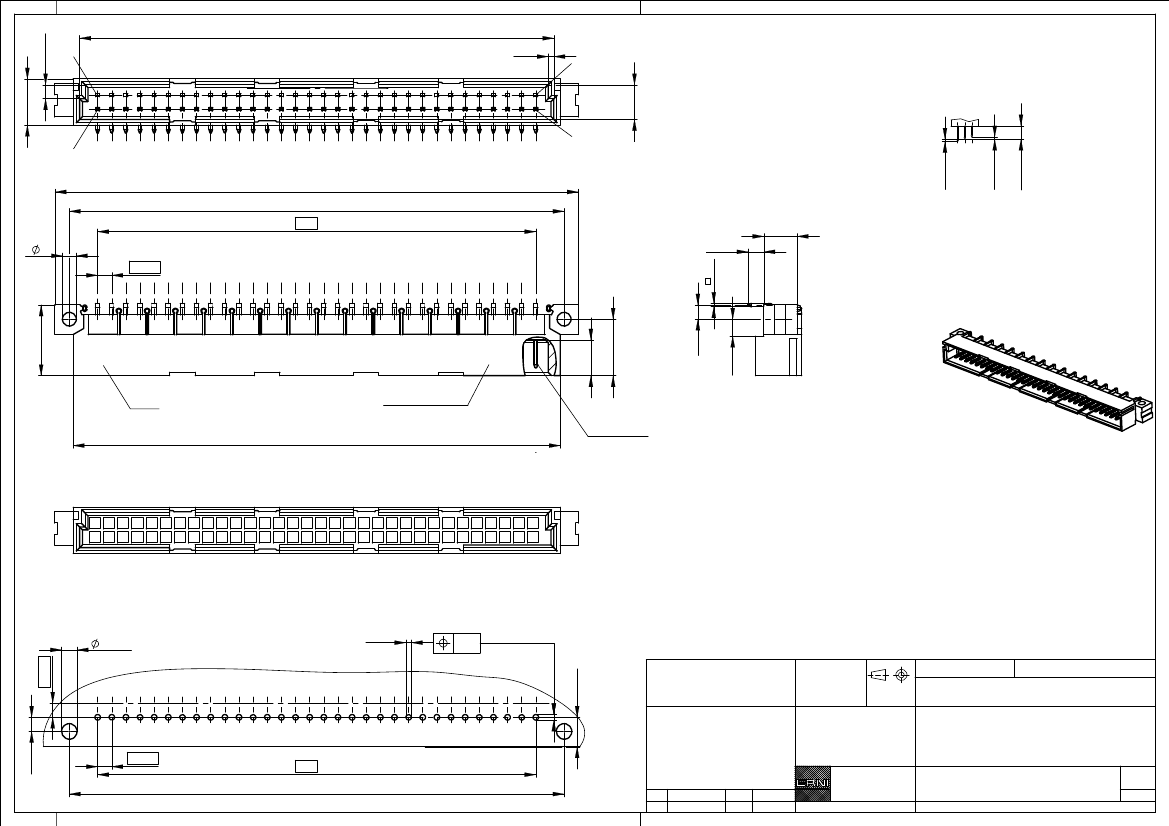

2,5

-0,2

85,2

b32

+0,2

-0,1

Stecklänge / mating length

6,2

+0,1

8,6 max.

ESL

a32

94 max

88,9

31 x 2,54 = (78,74)

2,5

+0,1

E =

early mate, late break

/ voreilend

±0,1

-0,4

0,6

S = standard

L = late mate, early break / nacheilend

2,54

12,7

10,2

-0,2

2,54

Datum

date

87,5

Bestückungsplan /

contact layout

Anforderungsstufe

class

Stecklänge

mating length

+0,1

XXXXXXX

ERNI

RC 1

6,4

-0,1

a b c

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S

Lötanschluss 0,6x0,6mm

/ solder terminal 0,6x0,6mm

Isolierwerkstoff

/ housing material : PBT GF 30

Bauart 4 / t

ype 4

Anforderungsstufe 1 = 500 Steckzyklen

/ performance class 1 = 500 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Leiterplatten- Lochbild / PCB drillhole pattern

±0,1

alle Löcher /

Information:

Tolerances

All Dimensions

in mm

2,8

2,54

+0,1

0,05

all holes

Proprietary notice pursuant to ISO 16016 to be observed.

5,3

±0,1

Scale

2:1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

2,54

31 x 2,54 = (78,74)

88,9

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

03.12.2010

Index

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste B 32 Löt

Male Connector B 32 solder

www.ERNI.com

Class

384244

STVB

4,8

±0,2

0,8

±0,1

0,8

±0,1
