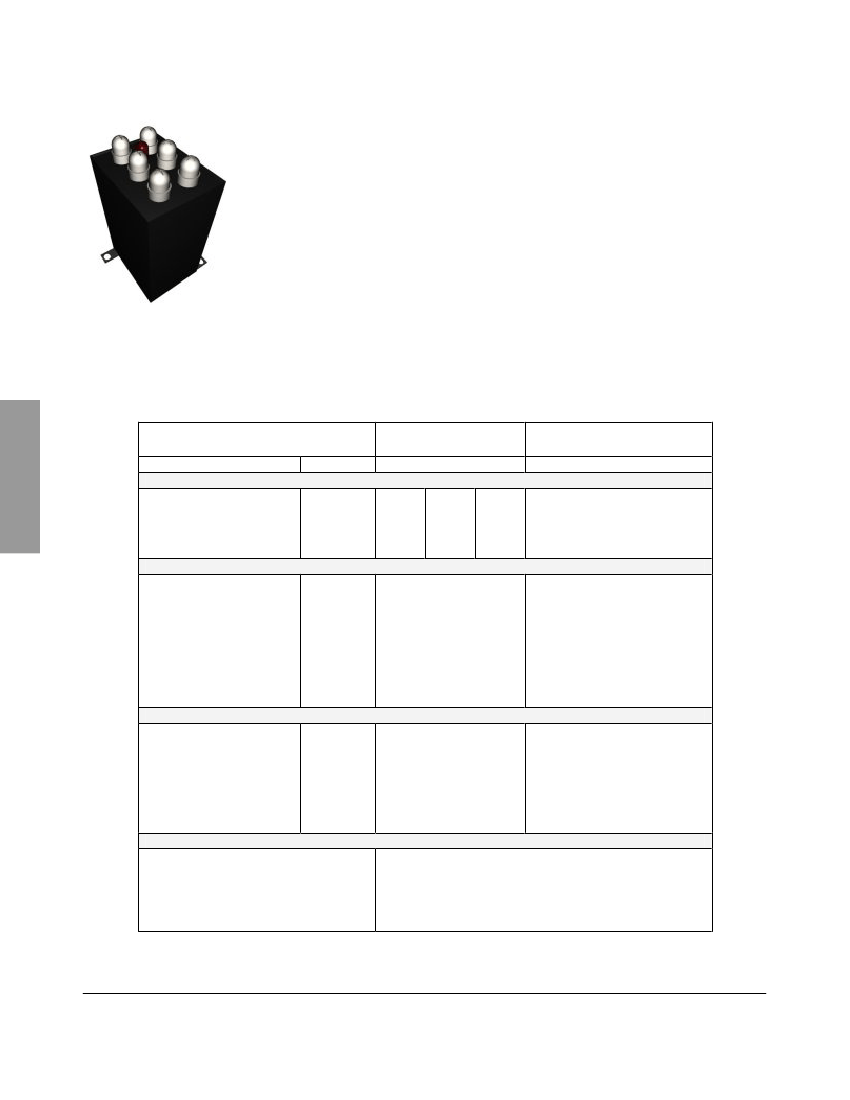

80W 25Amp Series
PRODUCT DESCRIPTION
High Power / Current
A variety of options for smaller form factor, including LED
and electro shield are also available.
This is a low coil drive version.
Please ask for required specifications.
SPECIFICATIONS
Mercury Relay
80W 25Amp Series
Parameters
Coil Specifications
Nominal Coil Voltage
Coil Resistance
Operate Voltage
Release Voltage
Units
VDC
Ω
VDC Max
VDC Min
80W-4A
□
0E0
2 Form A
5.0
30
4.0
0.7
12.0
150
9.6
1.2
24.0
600
19.2
2.4
High Power / Current
Test Conditions
±10% @ 20˚C
15˚C to 35˚C
15˚C to 35˚C
Contact Ratings
Switching Voltage
Switching Current
Carry Current
Carry Current(pulse)
Contact Rating
Life Expectancy
Contact Resistance
Volts
Amps
Amps
Amps
Watts
x10
6
Cycle
mΩ
mΩ
500
2.0
10
25
Max DC/Peak AC resistance
Max DC/Peak AC resistance
Max DC/Peak AC resistance
Max DC/Peak AC resistance
@on:10mS off:40mS
Max DC/Peak AC Resist
@ 1V 10mh
Max initial @ operate voltage
Max initial @ operate voltage
(25A+25A=50A)
Contact Resistance Stability
100
10000
40
2.0
Relay Specifications
Insulation Resistance
Dielectric Strength
Operate Time
(Including Bounce)
Release Time
Ω
Min
VDC Min
VDC Min
msec Max
msec Max
10
10
3000
3000
3.0
3.0
Between all isolated pins
@ 100V 20˚C 40%RH
Between contacts
Contacts to coil
@ nominal coil voltage
100Hz square wave
Diode suppression
Environmental Ratings
Measurement Reference Conditions
Temp: 15˚C to 35˚C
Humidity: 25% to 75%RH
Atmospheric Pressure: 860 to 1060hpa
Ordering Code:
80W-4A□0E0
□=1
(5.0VDC), 2 (12.0VDC), 3 (24.0VDC)
Storage temp: -20˚C to +80˚C
Operate temp: -10˚C to +60˚C
Vibration: 20G’s to 2000Hz
Shock: 50G’s
