DEFLECTION PROCESSOR FOR MULTISYNC MONITORS
S1D2511B01
DEFLECTION PROCESSOR
32-SDIP-400
The S1D2511B01 is a monolithc integrated circuit
assembled in 32 pins shrunk dual in line plastic pack-
age. This IC controls all the functions related to the hori-
zontal and vertical deflection in multimodes or multi-
frequency computer display monitors.
The internal sync processor, combined with the very
powerful geometry correction block make the S1D2511B
suitable for very high performance monitors with very
few external components. The horizontal jitter level is
very low. It is particularly well suited for high-end 15”
and 17” monitors.
FUNCTIONS
• Defiection Processor
• I
2
C BUS Control
• B+ Regulator
• Vertical Parabola Generator
• Horizontal and Vertical dynamic focus
ORDERING INFORMATION
Device
S1D2511B01-A0B0
Package
32-SDIP
Operating Temperature
0
°C
— 70
°C
FEATURES
(HORIZONTAL)
• Self-adaptative
• Dual PLL concept
• 150kHz maximum frequency
• X-RAY protection input
• I
2
C controls : Horizontal duty-cycle, H-position,free running
frequency, frequency generator for burn-in mode.
(VERTICAL)
• Vertical ramp generator
• 50 to 165Hz AGC loop
• Geometry tracking with V-POS & AMP
• I
2
C Controls :
V-AMP, V-POS, S-CORR, C-CORR
(I
2
C GEOMETRY CORRECTIONS)
• Vertical parabola generator
(Pincushion-E/W, Keystone)
(GENERAL)
• Sync Processor
• 12V supply voltage
• Hor. & Vert, lock/unlock outputs
• Read/Write I
2
C interface
• Vertical moire
• B+ Regulator
-Internal PWM generator for B+ current mode
step-up converter.
- Switchable to step-down converter
- I
2
C adjustable B+ reference voltage
- Output pulses synchronized on horizontal
frequency
- Internal maximum current limitation.
• Horizontal Dynamic Phase
(Side Pin balance & parallelogram)
• Horizontal and vertical dynamic focus
(Horizontal Focus Amplitude, Horizontal
Focus Symmetry, Vertical Focus Amplitude)
1
S1D2511B01
DEFLECTION PROCESSOR FOR MULTISYNC MONITORS

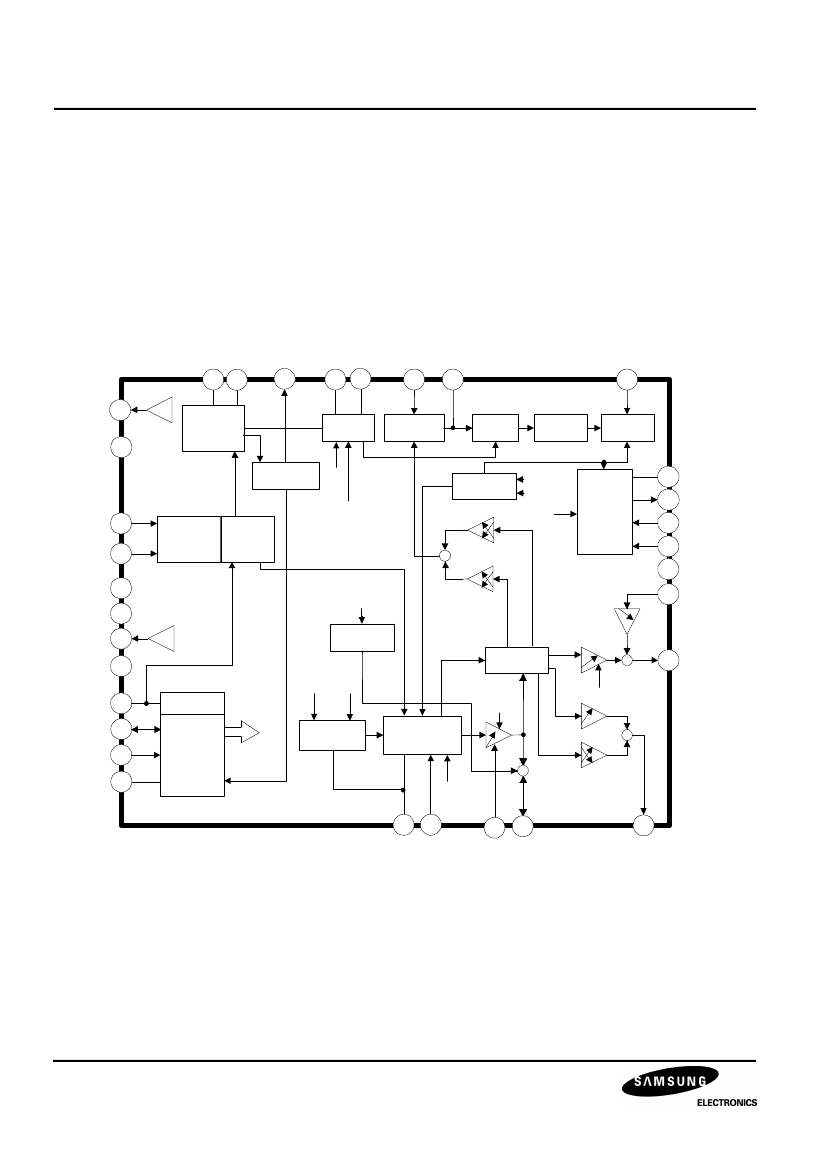

BLOCK DIAGRAM
H POSITION
HLOCKOUT
PLL1F
PLL2C
R0
7
13
8
3
6
C0
5
12
HFLY
4
HREF
V
REF
HGND
11
PHASE/
FREQUENCY
COMPARATOR
H-PHASE(7 bits)
VCO
PHASE
COMPARATOR
PHASE
SHIFTER
H-DUTY
(5 bits)
HOUT
BUFFER
LOCK/UNLOCK
IDENTIFICATION
Forced
Freq.
2 bits
Free running
5 bits
HOUT
26
SAFETY
PROCESSOR
Vcc
XRAY
B+ ADJUST
7 bits
B+
CONTROLLER
14
28
15
16
17
9
Amp & symmetry
2x5 bits
X
COMP
B+ OUT
REGIN
ISENSE
BGND
HFOCUS
CAP
H/HVIN
VSYNC
IN
VCC
XRAY
VREF
VGND
1
2
SYNC INPUT
SELECT
(1bit)
SYNC
PROCESSOR
+
X
2
Spin Bal
6 bits
2
29
25
21
19
6 bits
8 bits
V
REF
VSYNC
X
Key Bal
6 bits
2
MOIRE
CANCEL
5 BITS+ON/OFF
GEOMETRY
TRACKING
+
VAMP
6 bits
10
FOCUS
5V
SDA
SCL
GND
32
31
30
27
RESET
GENERATOR
S AND C
CORRECTION
I
2
C INTERFACE
VERTICAL
OSCILLATOR
RAMP GENERATOR
VAMP
7 bits
X
keyst
6 bits
2
PCC
7 bits
+
X
+
VPOS
7bits
22
VCAP
20
VACCAP
18
BREATH
23
VOUT
24
EWOUT
2
DEFLECTION PROCESSOR FOR MULTISYNC MONITORS
S1D2511B01
PIN CONFIGURATIONS
1
2
H/HVIN
VSYNCIN
HLOCKOUT
PLL2C
C0
R0
PLL1F
5V
SDA
32
31
3
4
5
6
7
SCL
VCC
BOUT
GND
30
29
28
27
26
S1D2511B
HOUT
8
9
10
11
12
HPOSITION
HFOCUSCAP
FOCUSOUT
XRAY
EWOUT
VOUT
25
24
23
22
21
HGND
HFLY
VCAP
VREF
13
14
15
16
HREF
COMP
REGIN
VAGCCAP
VGND
BREATH
20
19
18
17
ISENSE
B+GND
3
S1D2511B01
DEFLECTION PROCESSOR FOR MULTISYNC MONITORS
PIN DESCRIPTION
Table 1. Pin Description
No
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Pin Name
H/HVIN
VSYNCIN
HLOCKOUT
PLL2C
C0
R0
PLL1F
HPOSITION
HFOCUSCAP
FOCUSOUT
HGND
HFLY
HREF
COMP
REGIN
ISENSE
B+GND
BREATH
VGND
VAGCCAP
VREF
VCAP
VOUT
EWOUT
XRAY
HOUT
GND
BOUT
Vcc
SCL
SDA
5V
Description
TTL compatible horizontal sync input(Separate or composite)
TTL compatible vertical sync input (for separated H&V)
First PLL lock/unlock output (0V unlocked - 5V locked)
Second PLL loop filter
Horizontal oscillator capacitor
Horizontal oscillator resistor
First PLL loop filter
Horizontal position filter(Capacitor to be connected to HGND)
Horizontal dynamic focus oscillator capacitor
Mixed horizontal and vertical dynamic focus output
Horizontal Section Ground
Horizontal Flyback Input (positive polarity)
Horizontal Section Reference Voltage (to be filtered)
B+ error amplifier output for frequency compensation and gain setting
Regulation input of B+ control loop
Sensing of external B+ switching transistor current or switch for step-down converter
Ground (related to B+ reference adjustment)
DC breathing input control(Compensation of vertical amplitude against EHV variation)
Vertical section ground
Memory capacitor for automatic gain control loop in vertical ramp generator
Vertical section reference voltage (to be filtered)
Vertical sawtooth generator capacitor
Vertical ramp output (with frequency independant amplitude and S or C corrections if any).
It is mixed with vertical position voltage and vertical moire.
Pincushion-East/West correction parabola output
X-RAY protection input (with internal latch function)
Horizontal drive output (internal transistor, open collector)
General ground (referenced to Vcc)
B+ PWM regulator output
Supply voltage (12V typ)
I
2
C clock input
I
2
C data input
Supply voltage (5V typ)
4
DEFLECTION PROCESSOR FOR MULTISYNC MONITORS
S1D2511B01
REFERENCE DATA
Table 2. Reference Data
Parameter
Horizontal frequency
Autosynch frequency (for given R0 and C0)
±
Horizontal sync polarity input
Polarity detection (on both horizontal and vertical section)
TTL Composite synch
Lock/Unlock identification (on both horizontal 1st PLL and vertical section)
I
2
C control for H-Position
XRay protection
I
2
C horizontal duty cycle adjust
I
2
C free running frequency adjustment
Stand-by function
Dual polarity H-Drive outputs
Supply voltage monitoring
PLL1 inhibition possibility
Blanking output
Vertical frequency
Vertical autosync (for 150nF on Pin22 and 470nF on Pin20)
Vertical S-Correction
Vertical C-Correction
Vertical amplitude adjustment
DC breathing control on Vertical amplitude
East/West parabola output(also known as Pin cushion output)
East/West correction amplitude adjustment
Keystone adjustment
Internal dynamic horizontal phase control
Side pin balance amplitude adjustment
Parallelogram adjustment
Tracking of geometric corrections with vertical amplitude and position
Value
15 to 150
1 to 4.5FO
YES
YES
YES
YES
±10
YES
30 to 60
0.8 to 1.3FO
YES
NO
YES
NO
NO
35 to 200
50 to 165
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
Hz
Hz
%
FH
%
Unit
kHz
FH
5
