BY298: Description2 A, 400 V, SILICON, RECTIFIER DIODE, DO-15; CategoryDiscrete semiconductor diode; File Size39KB，2 Pages; ManufacturerPANJIT; Websitehttp://www.panjit.com.tw/; Environmental Compliance; PANJIT is a global IDM that offers a broad product portfolio including MOSFETs, Schottky diodes, SiC devices, bipolar junction transistors and bridges. The company aims to meet the needs of customers in various applications such as automotive, power, industrial, computing, consumer and communications. Their vision is to power the world with reliable quality, energy-efficient and efficient products, bringing a greener and smarter future to people. The company's core values include innovation, responsibility, customer-centricity, learning and growth, mutual trust and collaboration.

Parametric View All

BY298 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BY298	-	-	View	Buy Now

BY298 Overview

2 A, 400 V, SILICON, RECTIFIER DIODE, DO-15

BY298 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	PANJIT
Parts packaging code	DO-201AD
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2
Contacts	2
Reach Compliance Code	compli
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	70 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	400 V
Maximum reverse recovery time	0.15 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

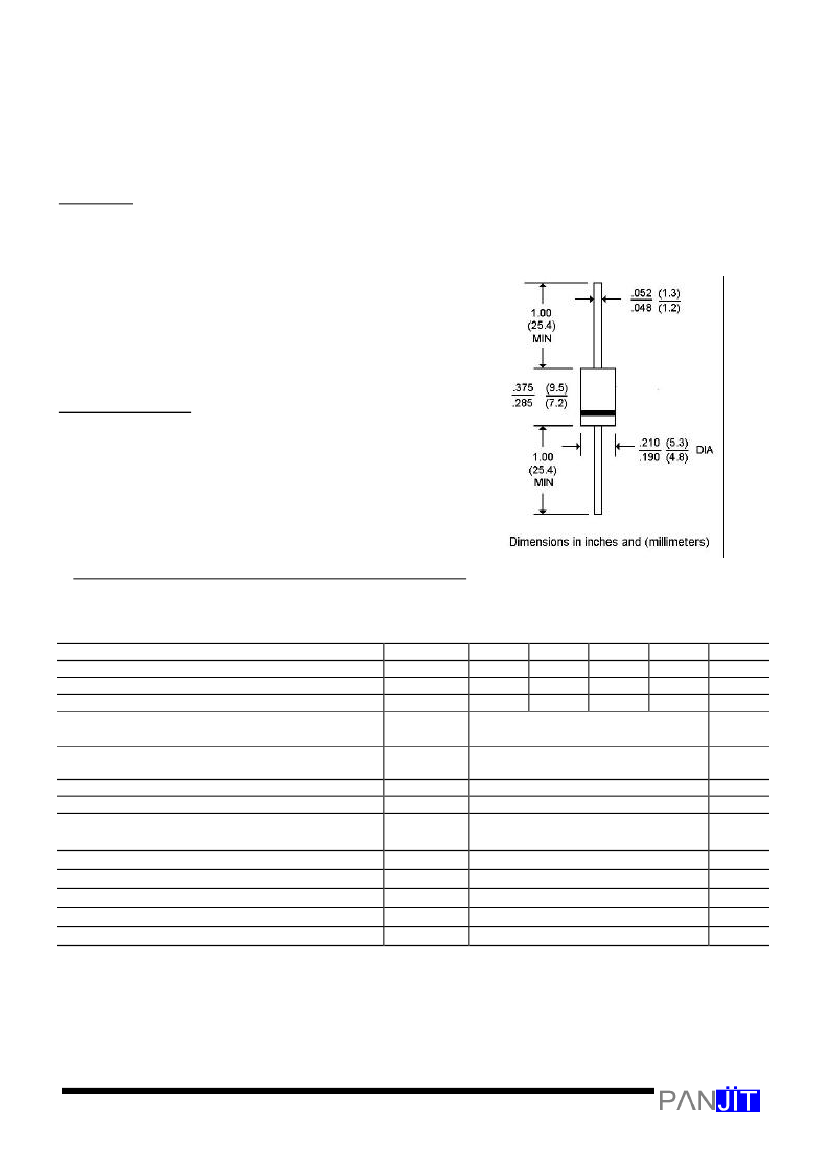

BY298 Preview

Download Datasheet

View All

BY296 THRU BY299

SOFT RECOVERY PLASTIC RECTIFIER

VOLTAGE - 100 to 800 Volts CURRENT - 2.0 Amperes

FEATURES

High surge current capability

The plastic package carries Underwriters

Laboratory Flammability Classification 94V-O

Void-free plastic package

2.0 Ampere operation

at T

=55

¢J

with no thermal runaway

Fast switching for high efficiency

Exceeds environmental standards of MIL-S-19500/228

DO-201AD

MECHANICAL DATA

Case: Molded plastic, DO-201AD

Terminals: Axial leads, solderable per

MIL-STD-202, Method 208

Polarity: Band denotes end

Mounting Position: Any

Weight: .04 ounce, 1.1gran

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25

¢J

ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Current

.375"(9.5mm) lead lengths at T

=55

¢J

Peak Forward Surge Current 10ms single half sine-

wave superimposed on rated load

Maximum Repetitive Peak Forward Surge

(Note 1)

Maximum Instantaneous Forward Voltage at 3.0A

Maximum DC Reverse Current T

=25

¢J

At Rated DC Blocking Voltage T

=100

¢J

Maximum Reverse Recovery Time

(Note 3)

=25

¢J

Typical Junction Capacitance

(Note 2)

=25

¢J

Typical Thermal Resistance

(Note 4)

Operating Temperature Range

Storage Temperature Range

SYMBOLS

RRM

RMS

(AV)

FSM

FRM

£KJA

STG

BY296

100

BY297 BY298

200

400

140

280

200

400

2.0

70.0

10.0

1.3

10.0

500

150

28.0

15.0

-50 to +125

-50 to -150

BY299

800

560

800

UNITS

Volts

Amps

Volts

£g

¢J

NOTES:

1. Repetitive Peak Forward Surge Current at f<15HKz.

2. Measured at 1 MHz. And applied reverse voltage of 4.0 volts.

3. Reverse Recovery Test Conditions; I

=0.5A,I

=1.0A,Irr=0.25A.

4. Thermal Resistance from Junction to Ambient at .375"(9.5mm) lead lengths with both leads to heat sink.
