SHEET 1 OF 1
A
o
[.177 in]
4.50
9.00
[.354 in]
1.50
[.059 in]
R.50
[.020 in]
A
1.80
[.071 in]
2.80
`
.05
[.110
`
.002
in]
5.00

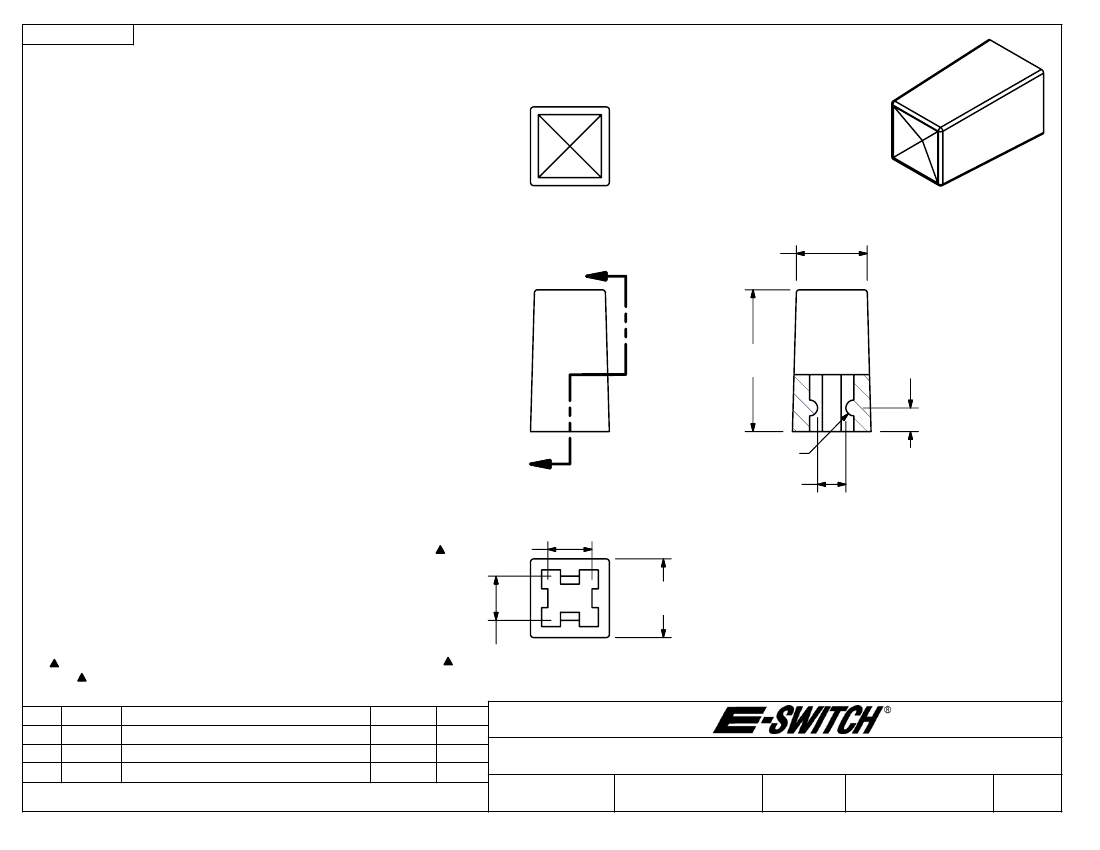

SECTION A-A
SCALE 4 : 1
o
[.197 in]
NOTES:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.XX=
`
0.15
3. MATERIAL: ABS, UL94V0
4. COLOR: COOL GRAY, PANTONE COOLGRAY 11C
5.
DENOTES CRITICAL PARAMETER.
C
B
A
REV
15346
15250
15205
PCR NO
CORRECT PANTONE COLOR
REVISED DESCRIPTION
RELEASED FOR PRODUCTION
DESCRIPTION
9/29/05
9/8/05
8/26/2005
DATE
2.80
`
.05
[.110
`
.002
in]
PH
PH
PH
BY
TITLE
SCALE
1DDGR
4:1
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
8/26/2005
PH
Q800423
C
