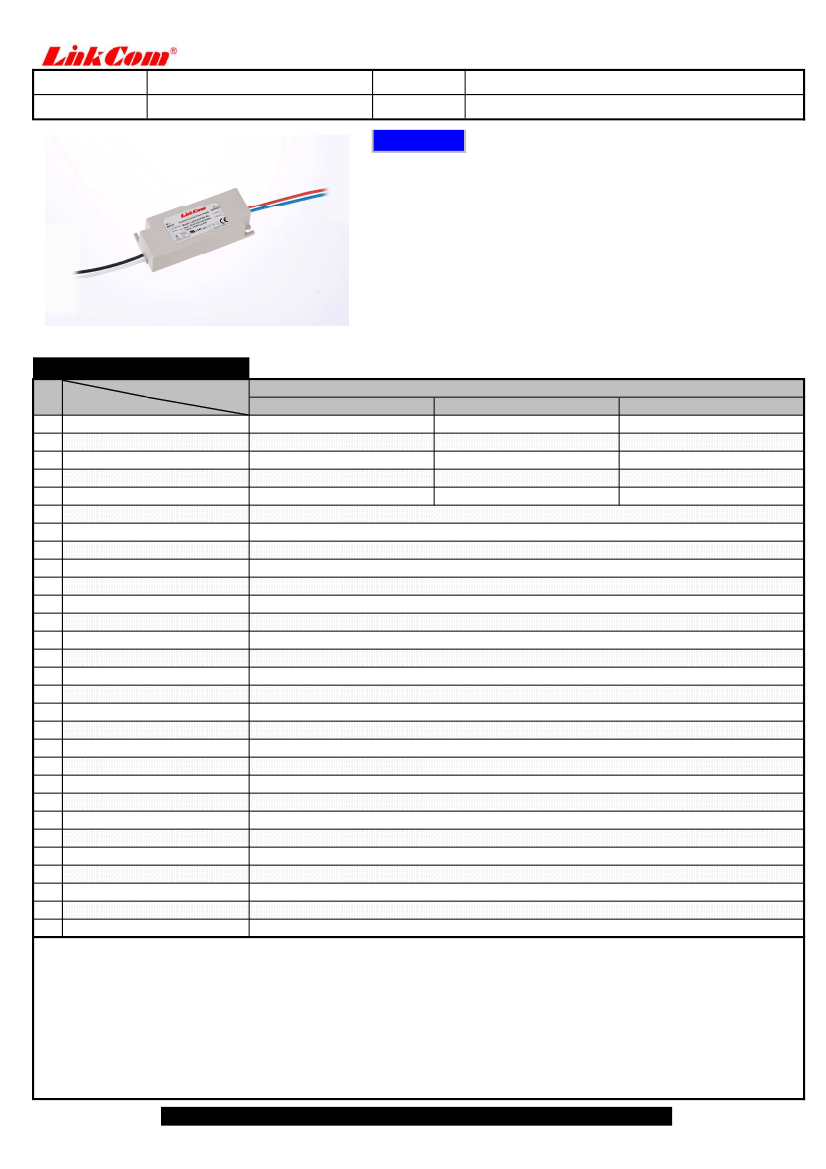

LinkCom Manufacturing Co., Ltd
Model NO.
Part NO.
LCCE-017 142
PLCCE0017 142
Model Name
SIZE
Constant Current Power Supply
95mm * 40mm * 25mm
Ver B
FEATURES
◆
AC Input 100~277Vac
◆
Protection: SCP / OTP / OVP
◆
High Operating ambient Temp: -20℃ ~ +60℃
◆
Safety: Meet UL / Meet TUV / PSE
◆
EMC: CE / FCC
◆
Comply with Indoor/Outdoor Waterproof (IP 67)
◆

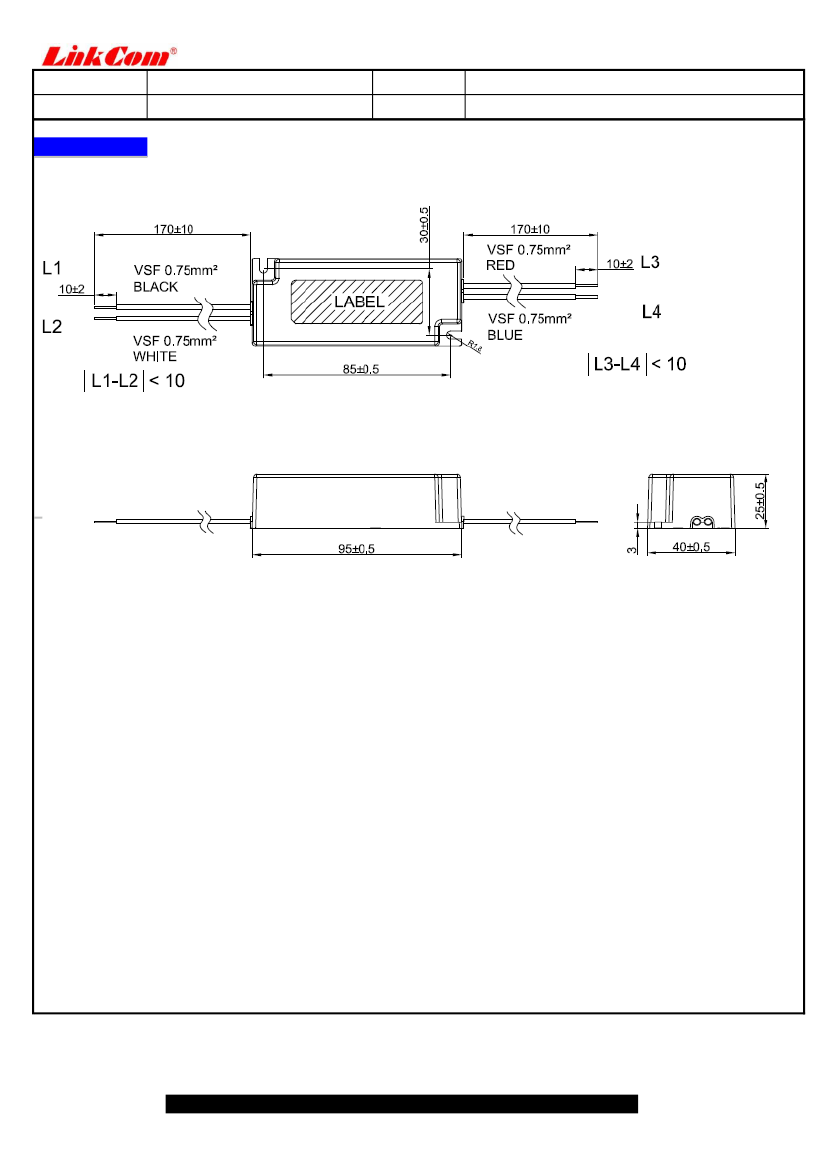

Dimension (mm): L*W*H: 95mm * 40mm * 25mm
◆
ROHS
◆
Power Factor: >0.95@115VAC / >0.9@230VAC
Module : LCCE-017 142
*(8)
MODEL
SPECIFICATION
DC OUTPUT VOLTAGE (V)
PRESET ACCURACY (%) *(7)
OUTPUT CURRENT(A) *(5)
O/P NOISE (P-P, V) *(3)
LINE REGULATION (%) *(6)
DC OUTPUT POWER
EFFICIENCY(typ @Full Load)
SETUP
INPUT VOLTAGE RANGE
INPUT FREQUENCY
INRUSH CURRENT (typ)
AC CURRENT
LEAKAGE CURRENT
SHORT CIRCUIT PROTECTION
OVER TEMP. PROTECTION
OVER V, PROTECTION
min.
norm.
12
10
1.35
2.8
10
16.2 W
80%
3000ms at full load 115VAC/230VAC
90-305VAC, 127-431VDC, Normal：100-277VAC
Range:47-63Hz, Normal：50-60Hz
COLD START 5A @ 230VAC
0.4A/110VAC
<0.7mA/264VAC
The SCP will restart automaticalty after the fault condition is removed.
The power will derate on the current limit.
The OVP is latched shutdown mode.
-20 to +60℃@full load
-40 to +80℃
10 to +90%
0.03% /
℃
(0-50℃, typ)
Meet UL / Meet TUV EN61347-2-13 / PSE
CE EN55015 / FCC Part15
95mm * 40mm * 25mm (L*W*H)
*,# =SEE NOTES BELOW
LCCE-017 142
max.
*
*
*
*
*
OPERATING TEMP.*(4)
STORAGE TEMPERATURE
RELATIVE HUMIDITY
TEMP. COEFFICIENT
SAFETY
EMI
DIMENSIONS
NOTES：(1)All parameters not specially mentioned are measured 230VAC input.
(2)All specifications Typical @25℃, unless otherwise noted, at normal line and load.
(3)Ripple and Noise measured directly at pins/terminals at nom. load, @20MHz bandwidth.
(4)Specified for free-air convection cooling.
(5)Minimum load is NOT required for proper operation .
(6)Line regulation measured from 100VAC to 277VAC.
(7)Preset accuracy measured at normal load, 120VAC input.
(8)100% Production Tested.
※
Reference
www.linkcom.com.tw
For more information, please contact with: sales@linkcom.com.tw
