Datasheet of 0.50 inch Single Digit 7 Segment LED Display
LD5022K/L Series - 0.50 inch Single Digit 7 Segment LED Display
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Features
12.70 mm (0.50 inch) digit high
Excellent digit appearance
Wide viewing angle
Range of emitted colors
I.C. compatible
Low power consumption
White segment, black face
RoHS compliant
Available options
Alternative emitting luminosity:
Standard or high brightness version
Alternative emitted color
Alternative segment color
Alternative font
Both CA and CC versions are available
Cropped terminal pins

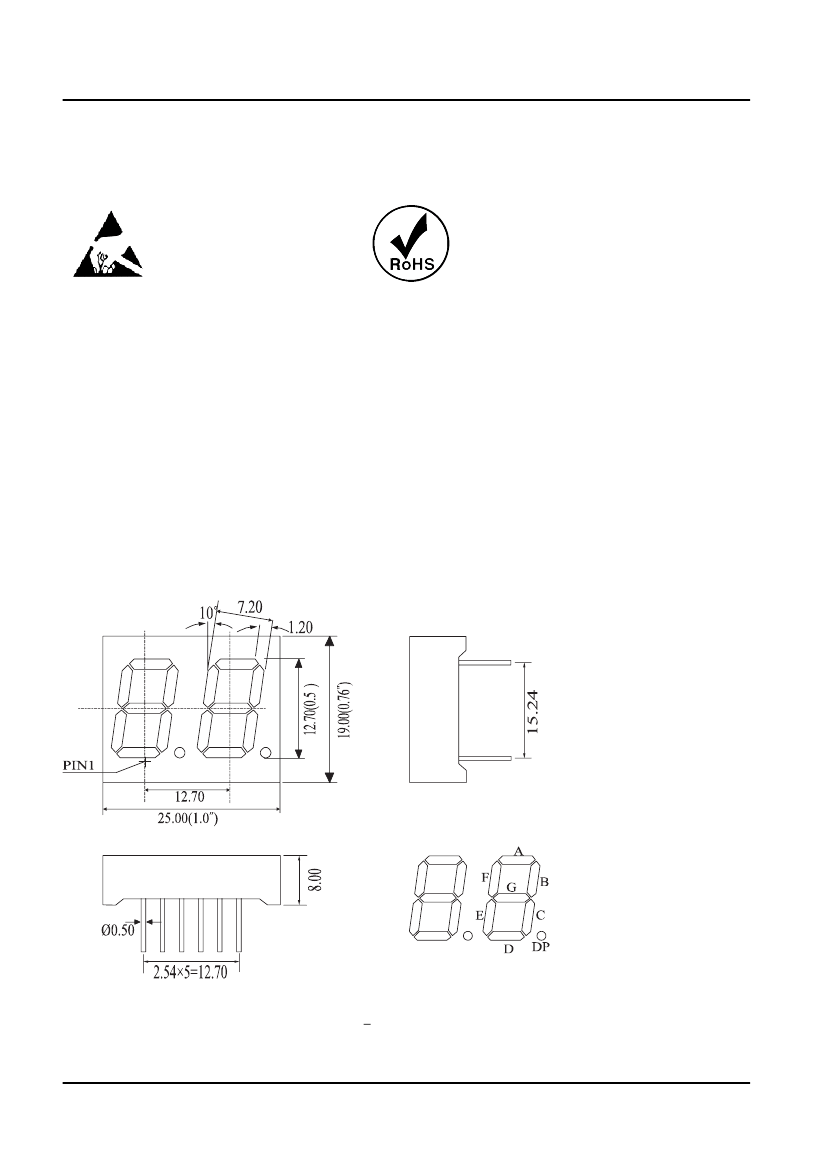

Package Dimensions
DIG. 1
DI G. 2
Notes:
1. All dimensions are in millimeters (inches), Tolerance is + 0.25mm(0.01inch)unless other wise noted.
2. Specifications are subject to change without notice.
3. The gap between the reflector and PCB shall not exceed 0.25mm.
SPEC NO: DS10121701
REV: A.4
CHECKED: Emily Zhou
APPROVED: M.H. Lin
PAGE: 1/3
HTTP://WWW.DISPLAY-LEDS.COM
TEL: 0086-574-86322282
DATE: Jul/20/2011
LightKey
Internal Circuit Diagram
LD5022K (Common Cathode)
Datasheet of 0.50 inch Single Digit 7 Segment LED Display
LD5022L (Common Anode)
Selection Guide
Dual Digit 7 Segment LED Display, Digit Height: 12.70mm(0.50 inch), External Dimensions:
25.00x19.00x8.00mm (L x W x H)
Part No.
Common
Cathode
LD5022KR
LD5022KD
LD5022KO
LD5022KY
LD5022KG
LD5022KUR
LD5022KUO
LD5022KUA
LD5022KUY
LD5022KUG
LD5022KPG
LD5022KUB
LD5022KUW
Unit:
\
Common
Anode
LD5022LR
LD5022LD
LD5022LO
LD5022LY
LD5022LG
LD5022LUR
LD5022LUO
LD5022LUA
LD5022LUY
LD5022LUG
LD5022LPG
LD5022LUB
LD5022LUW
\
Material
GaAlAs
GaAlAs
GaAsP
GaAsP
GaP
AlGaInP
AlGaInP
AlGaInP
AlGaInP
AlGaInP
InGaN
InGaN
InGaN
\
Chip
Color
Super Red
Hi-Red
Orange
Yellow
Green
Ultra Red
Ultra Orange
Ultra Amber
Ultra Yellow
Ultra Green
Pure Green
Ultra Blue
Ultra White
WLD
640
640
625
588
568
640
625
605
595
573
525
470
\
nm
I
V
@I
F
=20mA
One Seg
Min.
8
18
7
8
7
30
45
30
30
30
120
30
100
mcd
Typ.
10
25
9
10
9
45
60
45
45
45
300
45
120
mcd
Iv@IF=20mA
One DP
Min.
8
18
7
8
7
30
45
30
30
30
120
30
100
mcd
Typ.
10
25
9
10
9
45
60
45
45
45
300
45
120
mcd
SPEC NO: DS10121701
REV: A.4
CHECKED: Emily Zhou
APPROVED: M.H. Lin
PAGE: 2/3
HTTP://WWW.DISPLAY-LEDS.COM
TEL: 0086-574-86322282
DATE: Jul/20/2011
LightKey
Datasheet of 0.50 inch Single Digit 7 Segment LED Display
Electrical Characteristics & Absolute Maximum Ratings
Electrical optical Characteristics
[1]
Color
Forward Voltage@
IF=20mA
Typ.
Super Red
Per Seg.
Per DP
Hi-Red
Per Seg.
Per DP
Orange
Per Seg.
Per DP
Yellow
Per Seg.
Per DP
Green
Per Seg.
Per DP
Ultra Red
Per Seg.
Per DP
Ultra Orange
Per Seg.
Per DP
Ultra Amber
Per Seg.
Per DP
Ultra Yellow
Per Seg.
Per DP
Ultra Green
Per Seg.
Per DP
Pure Green
Per Seg.
Per DP
Ultra Blue
Per Seg.
Per DP
Ultra White
Unit:
Notes:
1. At Ta = 25 °C.
2. Peak forward current at 1/10 Duty Cycle, 0.1ms Pulse.
Absolute Maximum Ratings
[1]
Power
Dissipation
60
60
60
60
80
80
80
80
80
80
60
60
65
65
65
65
65
65
75
75
110
110
120
120
120
120
mW
DC
Forward
Current
25
25
25
25
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
mA
Peak
Forward
Current
[2]
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
mA
Reverse
Current
VR=5V
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
uA
Max.
2.2
2.2
2.2
2.2
2.5
2.5
2.5
2.5
2.5
2.5
2.6
2.6
2.6
2.6
2.6
2.6
2.6
2.6
2.6
2.6
4
4
4
4
4
4
V
1.8
1.8
1.8
1.8
2.1
2.1
2.1
2.1
2.2
2.2
1.9
1.9
2
2
2
2
2
2
2.1
2.1
3.5
3.5
3.5
3.5
3.5
3.5
V
Per Seg.
Per DP
\
SPEC NO: DS10121701
REV: A.4
CHECKED: Emily Zhou
APPROVED: M.H. Lin
PAGE: 3/3
HTTP://WWW.DISPLAY-LEDS.COM
TEL: 0086-574-86322282
DATE: Jul/20/2011
