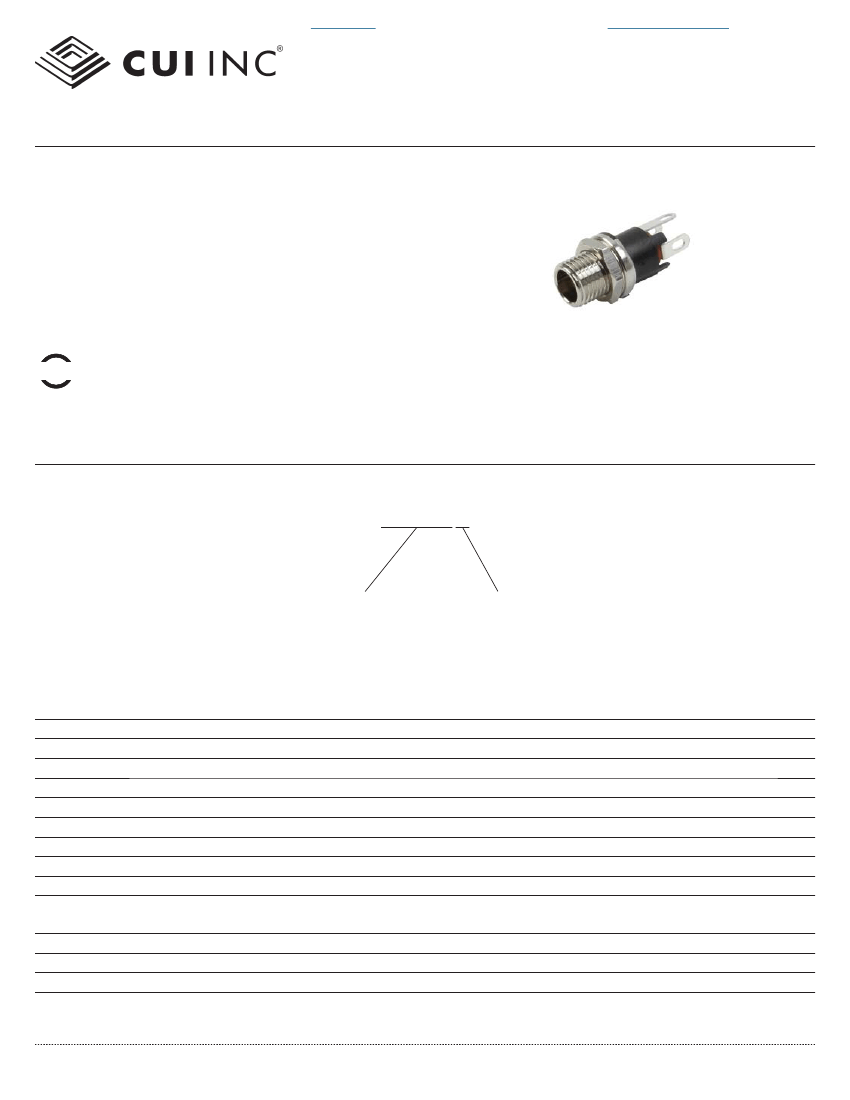

SERIES:
PJ-065X
│
DESCRIPTION:
DC POWER JACK
FEATURES
• long barrel
• mounting hardware includes nut and washer
• panel mount
• metal bushing
RoHS
PART NUMBER KEY
PJ-065
X
Base Number
Center Pin Diameter
A = ø2.0 mm
B = ø2.5 mm
SPECIFICATIONS
parameter
rated input voltage
rated input current
contact resistance
insulation resistance
voltage withstand
insertion/withdrawl force
operating temperature
life
at 500 Vdc
for 1 minute
0.2
-25
5,000
100
500
3.0
70
conditions/description
min
typ
24
5
30
max
units
Vdc
A
mΩ
MΩ
Vac
kgf
°C
cycles
SOLDERABILITY
parameter
hand soldering
wave soldering
conditions/description
for 3~5 seconds at
for 3~5 seconds at
min
295
245
typ
300
250
max
305
255
units
°C
°C
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
SERIES:
PJ-065X
│
DESCRIPTION:
DC POWER JACK
date
12/18/2012
│
page
2 of 3

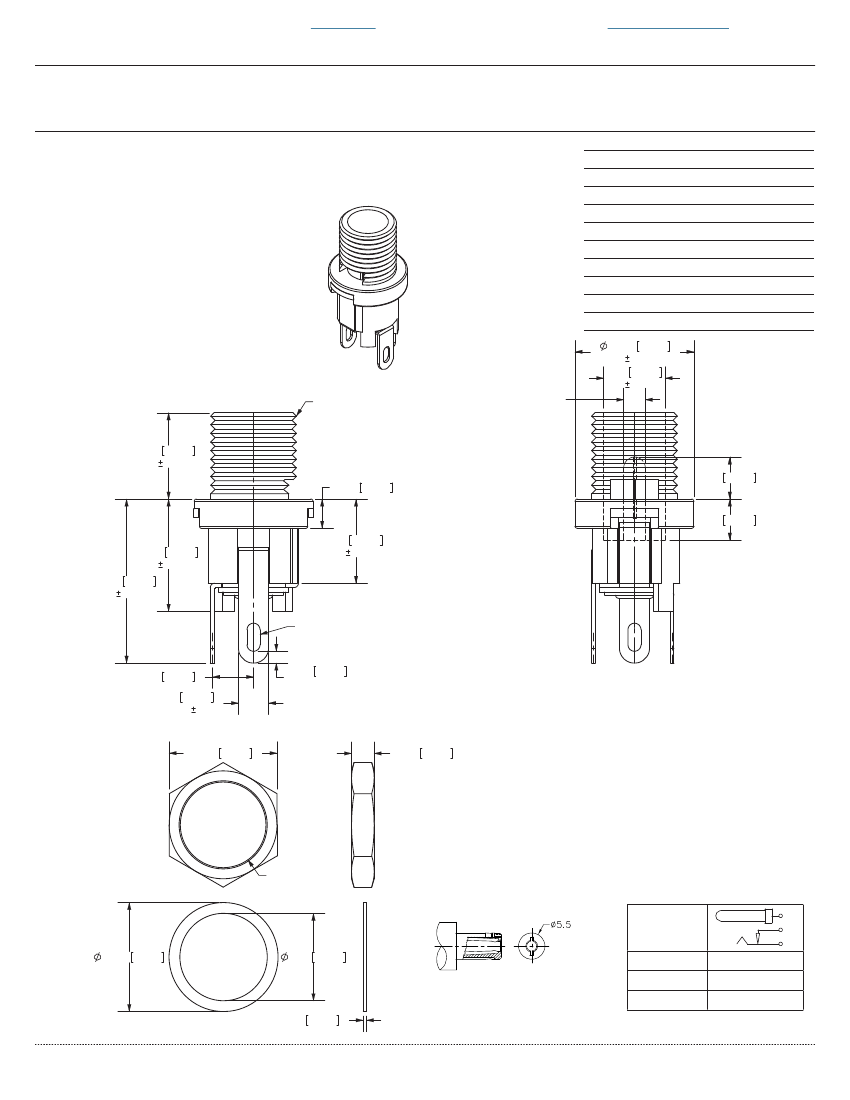

MECHANICAL DRAWING
units: mm[inches]
TOLERANCE:
±0.3mm (unless otherwise specified)
center pin
terminal 1
terminal 2
terminal 3
bushing
insulator
plastic
nut
washer
MATERIAL
brass
brass
phosphor bronze
brass
brass
red vulcanite fiber
PBT
brass
steel
nickel
nickel
PLATING
nickel
silver
silver
silver
nickel
5/16X32W
refer to
schematic
11.00 0.433
0.10
5.70 0.224
0.10
8.00 0.315
0.20
2.70 0.106
3.90 0.154
3.80 0.150
10.40 0.409
0.20
15.20 0.598
0.20
1.20X2.60
(3 PLCS) ±0.20
3
3.80 0.150
2.80 0.110
(3 PLCS) 0.10
1.10 0.043
(3 PLCS)
2
1
7.80 0.307
0.20
10.00 0.394
2.10 0.083
5/16x32W
Schematic
10.10 0.398
8.10 0.319
1
3
2
Model
MATING PLUG
Jack Insertion Depth: 10.7mm
PJ-065A
PJ-065B
Center Pin
ø2.0 mm
ø2.5 mm
0.30 0.012
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
SERIES:
PJ-065X
│
DESCRIPTION:
DC POWER JACK
date
12/18/2012
│
page
3 of 3
REVISION HISTORY
rev.
1.0
1.01
1.02
description
initial release
new template applied
updated voltage and current rating
date
08/03/2010
06/14/2012
12/18/2012
The revision history provided is for informational purposes only and is believed to be accurate.
