B030-2001-6020-Z: DescriptionCard Edge Connector, 200 Contact(s), 2 Row(s), Right Angle, 0.024 inch Pitch, Surface Mount Terminal, Latch, Receptacle; CategoryThe connector The connector; File Size722KB，2 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B030-2001-6020-Z Overview

Card Edge Connector, 200 Contact(s), 2 Row(s), Right Angle, 0.024 inch Pitch, Surface Mount Terminal, Latch, Receptacle

B030-2001-6020-Z Parametric

Parameter Name	Attribute value
Objectid	304388577
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	LOCATING POSTS
body width	0.157 inch
subject depth	0.972 inch
body length	2.787 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact style	BELLOWED TYPE
insulator material	THERMOPLASTIC
Manufacturer's serial number	B030
Plug contact pitch	0.024 inch
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	STAGGERED
PCB contact row spacing	0.323 mm
Plating thickness	FLASH inch
polarization key	POLARIZED KEY
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.6096 mm
Termination type	SURFACE MOUNT
Total number of contacts	200

Preview

Download Datasheet

View All

HOW TO ORDER:

B

0

3

0

-

2

0

1

-

6

0

X

-

Z

NUMBER OF CONTACTS:

200

CONTACT PLATING: Gold (selective) on Contact Area

Nickel Sub Plate (80"

µ

min)

HOUSING: High Temp Thermo Plastic UL94V-0

METAL LATCH: Stainless Steel

Rev

0

A

B

Issued

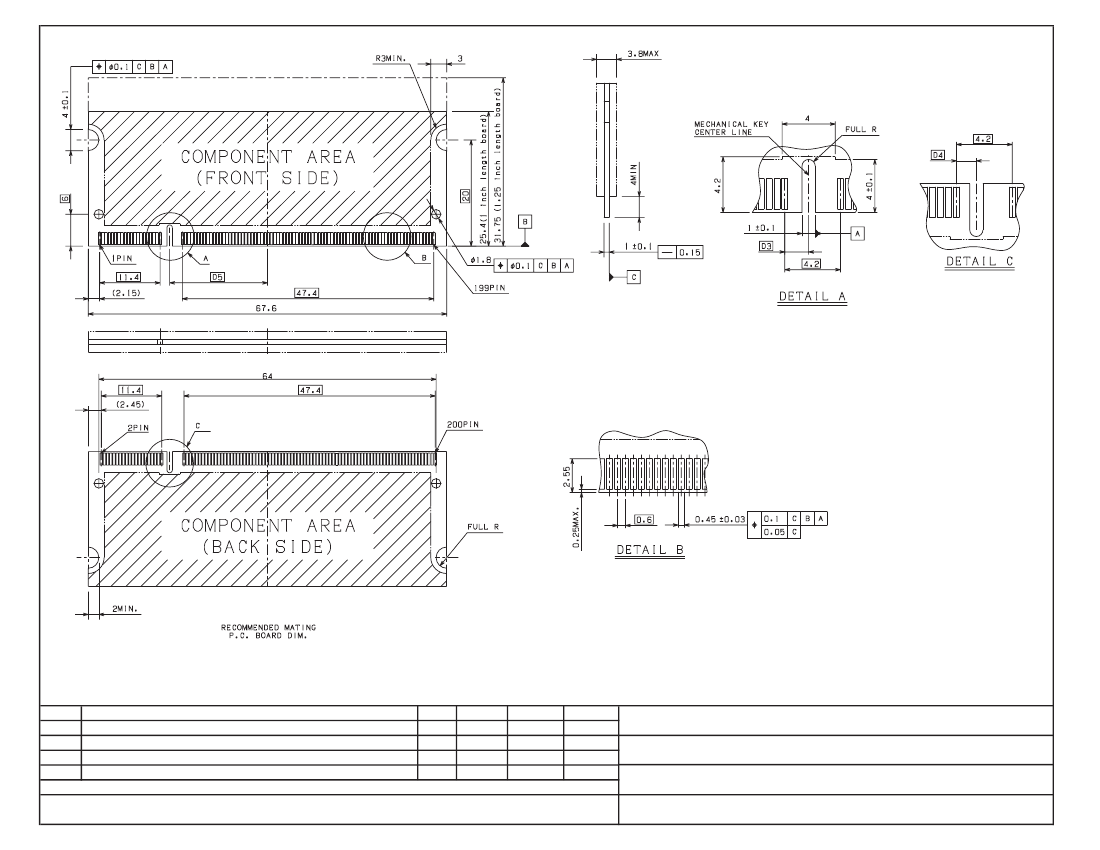

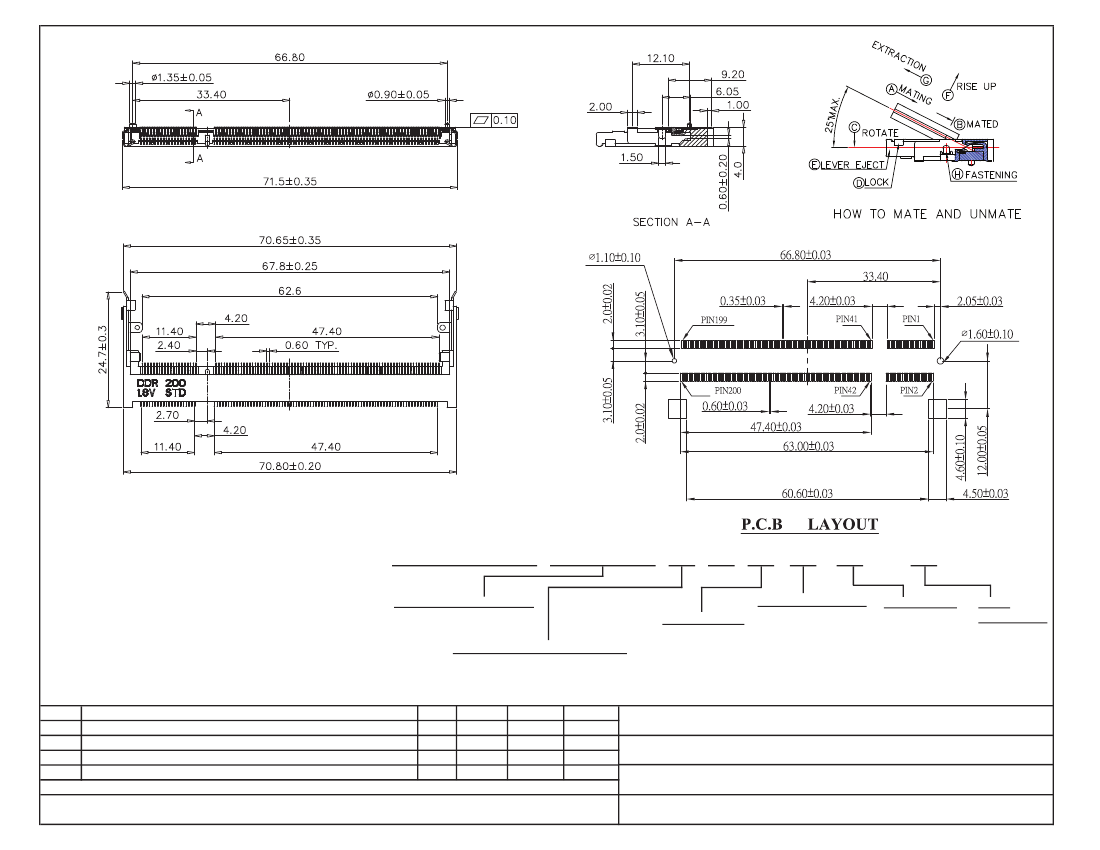

PCB Layout Demensions

Revised PCB Layout Demensions

MATERIAL:

ORIENTATION:

0 - Standard

PLATING OPTIONS:

2 - FULL Au FLASH

6 - 15" Au

PACKAGING:

0 - Tray

1 - Tape & Reel

RoHS

COMPLIANT

KEY TYPE / VOLTAGE OPTION :

1 - 1.8 V

Description

Drawn Checked Approved

Date

8/21/06

S.M.

WHS

B.S.

S.M.

12/21/07

S.M.

11/21/08

S.M.

B.S.

S.M.

SMP TECHNOLOGY, INC.

DDR Socket, Right Angle, 200 Position, 1.8 Volt, Standard Orientation,

Surface Mount, 4.0mm Height

TOL. DEC.

.X +/- 0.38

.XX +/- 0.25

.XXX+/- 0.15

ANGLE +/- 0.3°

UNIT: mm

P/N: B 0 3 0 - 2 0 0 1 - 6 0 X X - Z

Pg: 1 of 2
