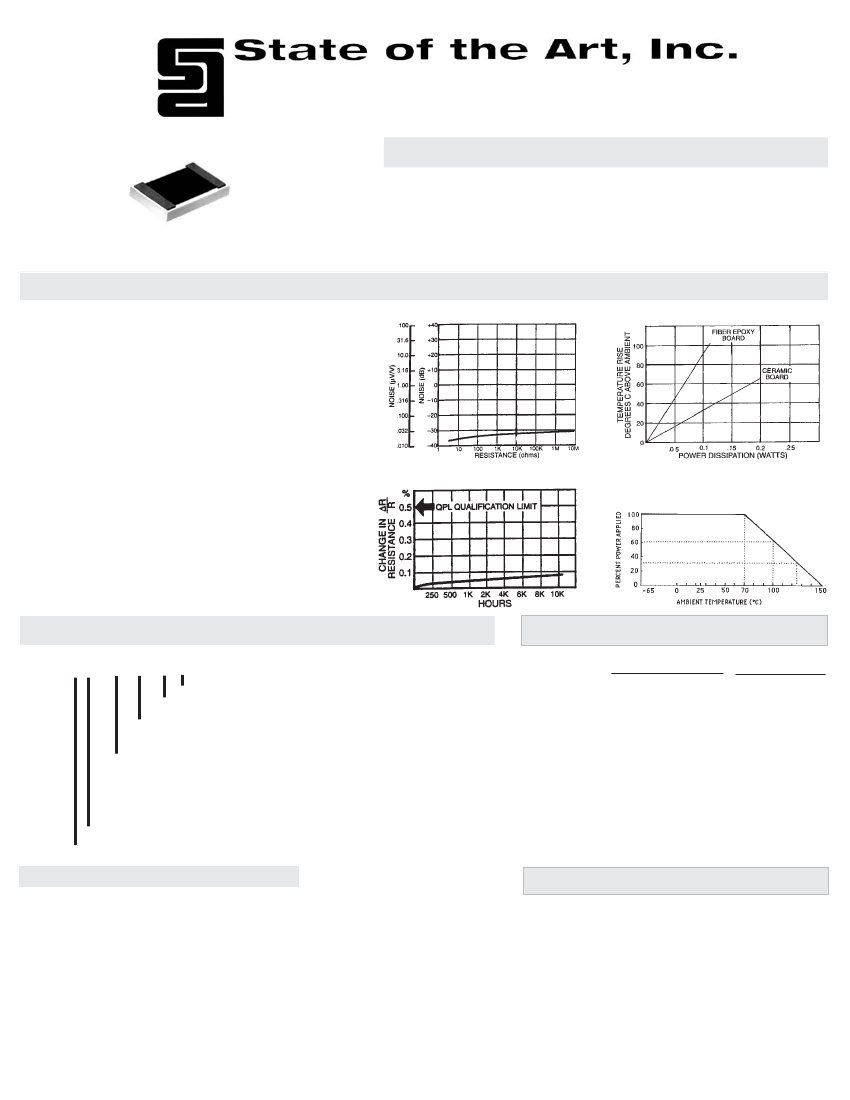

0303 Thin Film Chip Resistor
Standard Grade, Surface Mount
• Tolerances to ± 0.1%
• Operating temperature range :
-55
°
C to +150
°
C
• For high-density hybrid circuits
where space is at a premium
PROTECTIVE
ENCAPSULANT
PRECISION
THIN FILM
RESISTOR
FEATURES
• TCR's to ± 25 ppm
• Made with the same materials and
process as our MIL-PRF-55342 "S"
level qualified chips
• Delivers greater power handling capability
with lighter weight construction
99.6% ALUMINA CHIP
PERFORMANCE CHARACTERISTICS
Resistance Range
Tolerances
Maximum Power
Maximum Voltage
5W-100KW
0.1%, 0.25%, 0.5%, 1%, 2%, 5%, 10%
50 mW
30 Volts
CURRENT NOISE
POWER DISSIPATION
ENVIRONMENTAL PERFORMANCE (1)
TCR (-55 to +125
°
C in ppm/
°
C)
Thermal Shock
Low Temperature Operation
Short-time Overload
Resistance to Bonding Exposure
Moisture Resistance
High Temperature Exposure
Life
< 25 ppm
±0.02%
±0.02%
±0.02%
±0.02%
±0.03%
±0.03%
See Chart
TYPICAL LIFE TEST PERFORMANCE
POWER DERATING
(1) Typical resistance change, the maximum is the same
as MIL-PRF-55342. Test methods are per MIL-PRF-55342.
PART NUMBERING
S0303AA 150 J H W
Termination Material
W: Gold B: Pretinned Solder over Nickle
TCR
E: ±25 ppm H: ±50 ppm K: ±100 ppm
TOLERANCES
B: 0.1% C: 0.25% D: 0.5% F: 1% G: 2% J: 5% K: 10% M: 20%
RESISTANCE VALUE
Three or four digits are used with all leading digits significant. Four digits
are used for 1% tolerance or lower, otherwise three digits are used. The last
digit specifies the number of zeros to add. The letter "R" is used to
represent the decimal for fractional ohmic values. Example: 5R6 is 5.6
ohms.
Substrate Matieral A: Alumina Ceramic
Termination Style A: Top sided with Bottom Isoulated C: Wraparound
MECHANICAL
Length
Width
Thickness
Top Term.
INCHES
.030 (+.002/-.002)
.030 (+.002/-.002)
.009 - .011
.004 - .006
MM
.76 (+.05/-.05)
.76 (+.05/-.05)
.23 - .27
.10 - .15
Approx. Weight .00073 grams
All product is tested IAW Mil-Std-202, method 208,
including 8 hour steam aging.
PACKAGING
Two packaging options are available:
• Bulk Packaging - (5000 per Bag Max.)
• Waffle Pack - (400 per Tray Max.)
OPTIONS
SOTA offers a full line of component parts in the 0303 size
including High-Reliability (customer specified testing).
Available options are epoxy bondable and wire bondable
terminations, and custom part marking.
STATE OF THE ART, INC.
2470 Fox Hill Road, State College, PA 16803-1797
Phone (814) 355-8004 Fax (814) 355-2714
Toll Free 1-800-458-3401
03/08/01
Where Quality Isn't a Goal...It's Our Tradition
