Photoelectric sensors

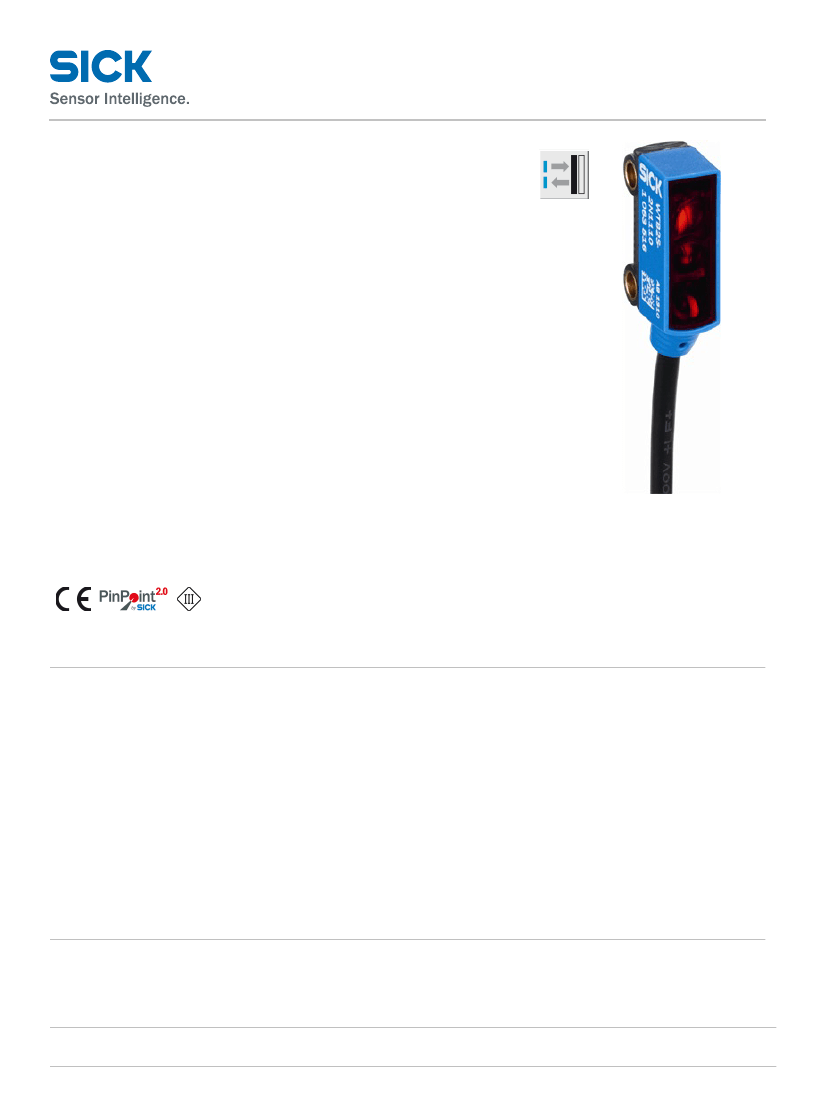

W2S-2, Photoelectric proximity sensor, Background suppression
Type
Part No.
> WTB2S-2N1010S06
> 1063815
At a glance
• Sensing ranges of up to 150 mm
• Almost no black/white shift up to 60 mm
• Sensor with line-shaped light spot
• Sensor with laser-like focused light spots
• Precise background suppression that is immune to interference/crosstalk
• High-performance PinPoint 2.0 LED
Your benefits
• An ultra-compact design with the performance of large photoelectric proximity
sensors offers new space-saving machine construction possibilities.
• Large variety of proximity sensors and operating concepts enable a wide range of
application options
• Use in confined spaces: detection of small, flat parts thanks to high-quality
background suppression and almost nonexistent black/white shift
• Remote access: models with IO-Link allow data to be easily accessed from the
PLC
• High availability and long-term use in grippers thanks to flexible and rugged cable
entry
Illustration may differ
Features
Sensor/detection principle:
Dimensions (W x H x D):
Housing design (light emission):
Sensing range max.:
Sensing range:
Type of light:
Light source:
Wave length:
Special features:
Light spot size (distance):
Background suppression typ. from:
1) 2)
Photoelectric proximity sensor, Background suppression
7.7 mm x 21.8 mm x 13.5 mm
Rectangular
1)
1 mm ... 18 mm
2)
3 mm ... 15 mm
Visible red light
3)
PinPoint LED
640 nm
Background supression 15 mm fix
X Ø 2 mm (8 mm)
20 mm
3)
Average service life: 100,000 h at T = +25 °C
U
Object with 90 % reflectance (referred to standard white, DIN 5033)
Mechanics/electronics
Supply voltage:
Ripple:
10 V DC ... 30 V DC
2)
≤ 5 Vpp
1)
Photoelectric sensorsAAAAAAAAAAAAA© SICK AG. Subject to change without notice.AAAAAAAAAAAAA1/29/2016 5:13:19 AM
Current consumption:
Output type:
Switching mode:
Output current Imax.:
Response time:
Switching frequency:
Connection type:
Cable material:
Cable diameter:
Circuit protection:::
IO-Link:
Special device:
Optics material:
Enclosure rating:
Ambient operating temperature:
Ambient storage temperature:
UL File No.:
Housing material:
1)
≤ 20 mA
NPN
Light switching
< 50 mA
4)
< 0.4 ms
5)
1,200 Hz
6)
Cable, 3-wire, 3 m
PVC
Ø 3 mm
7) 8) 9)
A, B, D
-
ü
PMMA
IP 67
-25 °C ... +50 °C
-40 °C ... +75 °C
NRKH.E181493
ABS/PC, Plastic
3)
2)
3)
4)
5)
6)
Limit values
May not exceed or fall below U tolerances
Without load
Signal transit time with resistive load
With light/dark ratio 1:1
Do not bend below
v
7)
8)
9)
0 °C
A = V connections reverse-polarity protected
B = output reverse-polarity protected
D = outputs overcurrent and short-circuit protected
S

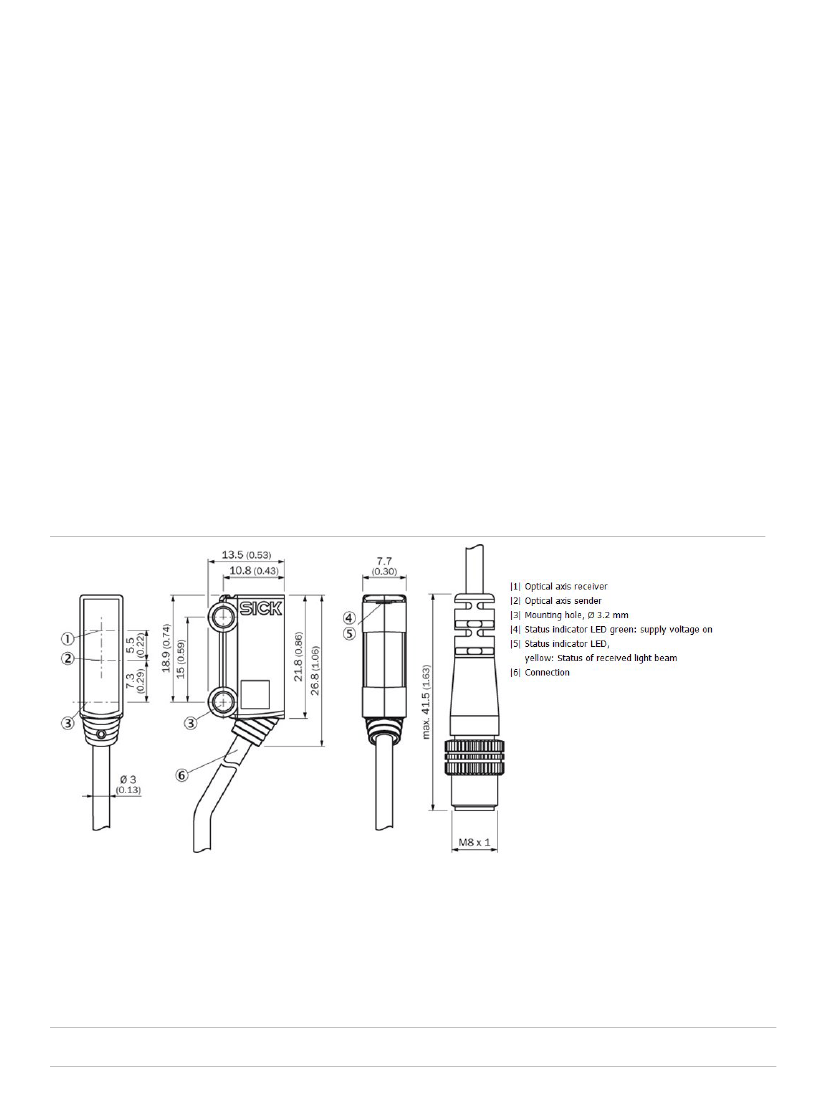

Dimensional drawing
