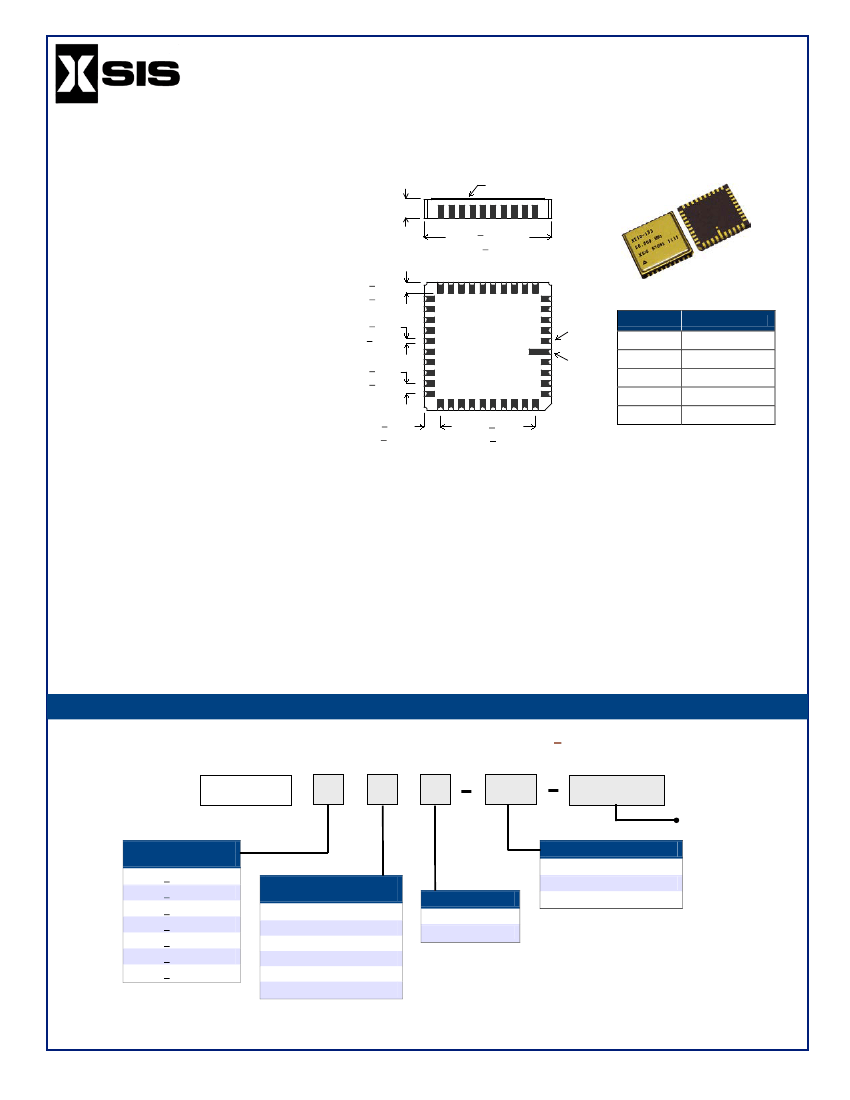

“ XE10-L00” Series ( LVHCMOS), 3.3 VDC
High Reliability Hybrid Microcircuit Crystal Oscillators
( Low Profile Surface Mount LCC Package )
Features
•
•
•
•
•
•
•
Ruggedized 4 Point Crystal Mount
Tristate Output Option
Radiation Tolerant to 10K Rads
100% Screening Options
Low Phase Noise
Hermetically Sealed, Ceramic Package
ECCN: EAR99
Marking
0.085
Max
( 2.16 )
0.480 + .015
SQ.
( 12.19 + .38 )
0.040 + .006
( 1.01 + .15 )
0.020 + .005
Pad #40
PAD#
FUNCTION
Applications
•
•
•
•
•
High Shock & Vibration Applications
Navigation Systems
Aerospace Instrumentation
Benign Space Applications
Gun Launched Munitions
(.51 + .13)
0.040 + .005
( 1.01 + .13 )
36 PLCS
0.060 + .010
( 1.51 + .25 )
0.360 + .005
( 9.14 + .13 )
SQ.
Pad #1
4 & 10
31 & 37
( Index )
32
39
All Others
Vdd
GND/CASE
E/D (Optional)
OUTPUT
N/C
Package Specifications & Outline:
•
•
•
•
•
•
Dimensions
: Inches (mm)
Package: Ceramic 90% AL
2
O
3
Seal: Hermetic – Resistance Welded
Weight: 0.9 Gms typical, 1.2 Gms Max.
o
Thermal Resistance, Junction to Case ( θ
JC
): 30 C / Watt
o
Solder Reflow, Temp./Time: 260 C, 10 Secs. Max.
Terminations Material & Finish: Tungsten, 50 to 80 μ inches gold
over 100 to 250 μ inches Nickel
E/D ( Enable/Disable ) Input:
A “Low”
level at the input disables the Output
into a high impedance state.
E/D
Input has internal pull-up. It can
be left floating or connected to Vdd.
Hot Solder Tinning per MIL-PRF-55310 is optional at additional cost.
Contact Xsis Electronics
at xsis@xsis.com for any special requirements.
ORDERING INFORMATION
( Please build your part number from options below ) :
P/N EXAMPLE: XE10 – L43G – 883B - 24.000 MHz =
3.3V LVHCMOS, + 50 PPM over -55 C to +125 C,
Tristate Output, 883B Screening, 24.000 MHz
o
o
XE10 ‒ L
Model #
4
3
G
883B
24.000 MHz
Output Frequency
Frequency Stability
Options
1 = + 0.1%
2 = + 500 PPM
3
4
5
6
7
=
=
=
=
=
+ 100 PPM
+ 50 PPM
+ 20 PPM *
+ 10 PPM *
+ 25 PPM *
100% Screening Options
Operating Temp. Range
Options
1
2
3
4
5
6
=
=
=
=
=
=
0 C
- 40
o
C
- 55
o
C
- 55
o
C
- 40
o
C
- 20
o
C
o
to + 70 C
to + 85
o
C
to +125
o
C
to +105
o
C
to + 95
o
C
to + 70
o
C
o
Tristate Options
G
= Tristate
Blank = No Tristate
883B = Mil - Screening
H
= HI-REL Screening
Blank = No Screening
MIL Screening
is same as
MIL-PRF-55310 Class B Screening
HI-REL Screening
is similar to
MIL-PRF-55310 Class S Screening
Rev 09 /15
* Frequency Stability Options 5, 6 & 7 are not
available for all operating temperature ranges.
Page 1 of 4
Tel. 913-631-0448 Fax. 913-631-1170, www.xsis.com, email xsis@xsis.com
Xsis Electronics, Inc.,
12620 W. 63rd St., Shawnee, KS 66216
“ XE10-L00” Series ( LVHCMOS), 3.3 VDC
High Reliability Hybrid Microcircuit Crystal Oscillators
( Low Profile Surface Mount LCC Package )
Electrical Specifications:
Parameter
Output Frequency Range
Frequency Accuracy at +25
o
C
Frequency Stability Vs Temperature
Operating Temperature Range
Supply Voltage (Vdd)
Specification Limits
200 KHz - 100 MHz
+ 15 PPM
See Ordering Information on Page 1
See Ordering Information on Page 1
+ 3.3 VDC + 10%
200 KHz
8.1 MHz
16.1 MHz
32.1 MHz
60.1 MHz
-
8 MHz 3 mA Max.
- 16 MHz 6 mA Max.
- 32 MHz 10 mA Max.
- 60 MHz 20 mA Max.
- 100 MHz 30 mA Max.
Input Current (no Load )
Output Waveform
Square Wave, HC/ACMOS Compatible
< 30 MHz 55/45% Max.
> 30 MHz 60/40% Max.
0.9 Vdd Min.
0.1 Vdd Max.
10 KΩ // 15 pf
Output Duty Cycle
( at 50% Output Level )
Output High Level
Output Low Level
Output Load
Rise & Fall Times ( Typical Load )
< 30 MHz 6 nS Max.
> 30 MHz 3 nS Max.
( 10% to 90% Output Levels)
E/D Input > 3.5V or Open : Normal Output
E/D Input < 0.8V: High Impedance
10 mS Max.
0.15 pS rms Typical
+ 5 PPM Max. for + 10% change in Supply Voltage
+ 3 PPM Max. first year, + 2 PPM Max. per year thereafter
+ 5VDC
-65
o
C to +125
o
C
Enable/Disable ( E/D)
Start-Up Time
Phase Jitter
( 10 KHz - 20 MHz Integrated )
Freq. Stability Vs Supply Voltage
Aging at 70
o
C
Absolute Maximum Applied Voltage
Storage Temperature
For special requirements, such as, tighter output symmetry, faster start-up time, PIND screening, etc.,
please contact Xsis Electronics at xsis@xsis.com or call us at 913-631-0448.
Rev 09 /15
Page 2 of 4
Tel. 913-631-0448 Fax. 913-631-1170, www.xsis.com, email xsis@xsis.com
Xsis Electronics, Inc.,
12620 W. 63rd St., Shawnee, KS 66216
“ XE10-L00” Series ( LVHCMOS), 3.3 VDC
High Reliability Hybrid Microcircuit Crystal Oscillators
( Low Profile Surface Mount LCC Package )
Packaging:
ESD protective Enclosed tray. Tape & Reel packaging is available at additional cost.
Thermal Characteristics:
Junction to case Thermal Constant ( θ
JC
): 30 C / Watt
o
Junction to Ambient ( Device floating in free air) Thermal Constant ( θ
JA
): 110 C / Watt
o
Hi-Rel Screening:
When HI-REL option is selected, Xsis Oscillators are subjected to 100% screening similar to Class “S” screening in
accordance with MIL-PRF-55310. Refer to www.xsis.com for additional details about HI-REL screening.
Typical Phase Noise (dbc/Hz):
Output Frequency
10 MHz
25 MHz
50 MHz
96 MHz
100 MHz
10 Hz
-109
-100
-89
-80
-77
100 Hz
-140
-127
-117
-107
-104
1 KHz
-157
-151
-148
-139
-133
10 KHz
-162
-158
-157
-151
-145
100 KHz
-163
-160
-159
-156
-151
1 MHz
-164
-162
-160
-158
-155
Environmental Specifications:
XE10-L00 series oscillators are designed to meet or exceed the Environmental tests specified below. Customized screening
and environmental testing are also available to meet your special requirements.
Test
Vibration
Shock
Temperature Cycling
Thermal Shock
Seal ( Fine and Gross )
Burn-in
Frequency Aging
Altitude
Constant Acceleration
Moisture Resistance
Solderability
Resistance to Soldering Heat
Resistance to Solvents
Internal Water Vapor Content
ESD Classification
Moisture Sensitivity Level
Test Conditions
0.06” DA, 30 G peak, 10 - 2000 Hz, MIL-STD-202, Method 204, Cond. G
1500 G, 0.5 mS, half-Sine, MIL-STD-883, Method 2002, Cond. B
MIL-STD-883, Method 1010, Cond. C
MIL-STD-202, Method 107, Cond. B
MIL-STD-883, Method 1014 Cond. A & C
160 Hours, 125 C, Nominal Supply Voltage & Load
30 days at 70 C, + 1.5 PPM Max.
MIL-STD-202, Method 105, Cond. C
MIL-STD-883, Method 2001, 5000 G
MIL-STD-202, Method 106, Vibration Sub Cycle Omitted
MIL-STD-202, Method 208
MIL-STD-202, Method 210, Cond B. or C as applicable
MIL-STD-202, Method 215
MIL-STD-883, Method 1018
MIL-STD-883, Method 3015, Class 1C, HBM 1000 to 1999
J-STD-020, MSL=1
o
o
Rev 09 /15
Page 3 of 4
Tel. 913-631-0448 Fax. 913-631-1170, www.xsis.com, email xsis@xsis.com
Xsis Electronics, Inc.,
12620 W. 63rd St., Shawnee, KS 66216
“ XE10-L00” Series ( LVHCMOS), 3.3 VDC
High Reliability Hybrid Microcircuit Crystal Oscillators
( Low Profile Surface Mount LCC Package )
HCMOS Test Circuit
OUTPUT
4
3
HCMOS Output Waveform
T
R
T
F
High Level
0.9 VDD
MA
Power
Supply
DVM
C
DUT
1
2
15 pF
10 K
GND
50% Level
C = .01 OR .1 uF
0.1 VDD
E/D Input
Low Level
0 VDC
E/D ( Enable/Disable ) Input
has an internal pull-up
resistor. It can be left floating or connected to Vdd.
T
H
T
Symmetry =
T
H
x 100 %
T
Typical Freq. Stability Vs. Temperature
50
40
Tape & Reel Information
FEEDING DIRECTION
XE10-L43-883B-9M8304 MHz
0.3
1.75 + 0.1
2.0 + 0.1
4.0 + 0.1
Frequency Stability – PPM
30
20
10
0
-10
-20
-30
-40
-50
-60 -50 -40 -30 -20 -10
0
10 20
30 40 50 60 70 80
Ø1.5
11.5
XE10-L43-883B
16M00000
12.60
24.0
Xsis 2515
4.5
12.60
16.0
Ø1.5
26.0
Temperature
-
C
o
90 100 110 120 130
2.5
Ø13.0 + 0.5
Typical Solder Reflow Profile
280
260
240
220
200
240 TO 250
O
C Typ.
Ramp Up 3
O
C/Sec. Max.
Ramp Down
6
O
C/Sec. Max.
183
O
C
60 to 150 Secs
120
O
Ø178 + 1
Temperature -
o
C
180
160
140
120
100
80
60
40
20
0
0 20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420
2.0
Dimensions are in mm.
60 to 120 Secs
Tape is EIA-481-A Compliant.
Time - Seconds
Rev 09 /15
Page 4 of 4
Tel. 913-631-0448 Fax. 913-631-1170, www.xsis.com, email xsis@xsis.com
Xsis Electronics, Inc.,
12620 W. 63rd St., Shawnee, KS 66216
