S/ ROW PCB SOCKET STAGGARED PCB TAILS
2553 SERIES.
2.54mm(0.100”). For PCB Solder
Features
Available in 3 through 40 circuits
Insulator Material: P.B.T. UL 94V-0
Contact Material: Phosphor Bronze
Designed for parallel and vertical board stacking
Low profile 5mm height
Mates with 2.54mm grid single row male header
Standoffs facilitate post soldering clean
Dual beam folder contacts

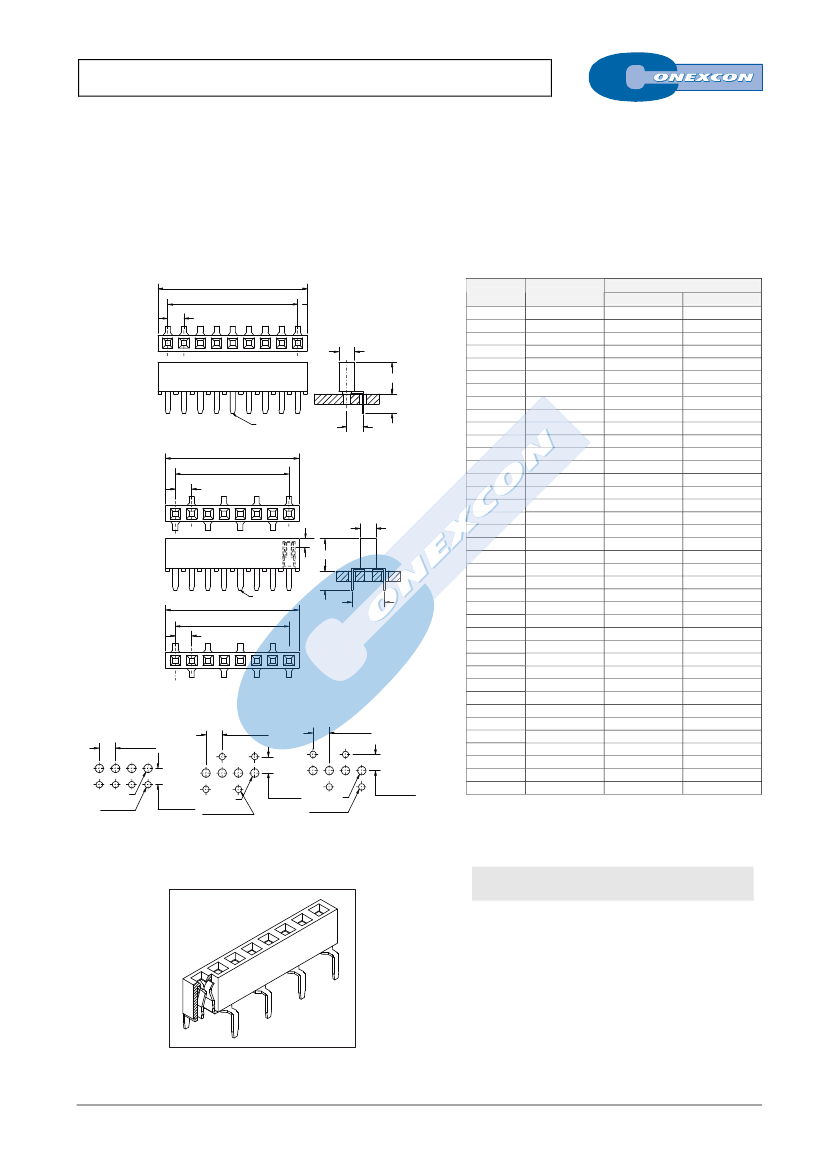

Ordering and Dimensional Information
Dimensional Information
B
A
2.54
Type 1
Circuit Size
03
04
05
2.54
Part Number
2553-T03C
2553-T04C
2553-T05C
2553-T06C
2553-T07C
2553-T08C
2553-T09C
2553-T10C
2553-T11C
2553-T12C
2553-T13C
2553-T14C
2553-T15C
2553-T16C
2553-T17C
2553-T18C
2553-T19C
2553-T20C
2553-T21C
2553-T22C
2553-T23C
2553-T24C
2553-T25C
2553-T26C
2553-T27C
2553-T28C
2553-T29C
2553-T30C
2553-T31C
2553-T32C
2553-T33C
2553-T34C
2553-T35C
2553-T36C
2553-T37C
2553-T38C
2553-T39C
2553-T40C
Dimensions
A
5,08(0,200)
7,62(0,300)
10,16(0,400)
12,70(0,500)
15,24(0,600)
17,78(0,700)
20,32(0,800)
22,86(0,900)
25,40(1,000)
27,94(1,100)
30,48(1,200)
33,02(1,300)
35,56(1,400)
38,10(1,500)
40,64(1,600)
43,18(1,700)
45,72(1,800)
48,26(1,900)
50,80(2,000)
53,34(2,100)
55,88(2,200)
58,42(2,300)
60,96(2,400)
63,50(2,500)
66,04(2,600)
68,58(2,700)
71,12(2,800)
73,66(2,900)
76,20(3,000)
78,74(3,100)
81,28(3,200)
83,82(3,300)
86,36(3,400)
88,90(3,500)
91,44(3,600)
93,98(3,700)
96,52(3,800)
99,06(3,900)
B
8,12(0,320)
10,66(0,420)
13,20(0,520)
15,74(0,620)
18,28(0,720)
20,82(0,820)
23,36(0,920)
25,90(1,020)
28,44(1,120)
30,98(1,220)
33,52(1,320)
36,06(1,420)
38,60(1,520)
41,14(1,620)
43,68(1,720)
46,22(1,820)
48,76(1,920)
51,30(2,020)
53,84(2,120)
56,38(2,220)
58,92(2,320)
61,46(2,420)
64,00(2,520)
66,54(2,620)
69,08(2,720)
71,62(2,820)
74,16(2,920)
76,70(3,020)
79,24(3,120)
81,78(3,220)
84,32(3,320)
86,86(3,420)
89,40(3,520)
91,94(3,620)
94,48(3,720)
97,02(3,820)
99,56(3,920)
102,10(4,020)
06
07
08
09
10
11
12
13
14
5.00
3.00
PIN 0.8X0.25
2.54
B
A
Type 2
Nº 1
15
16
17
18
19
2.54
2.54
1.35
5.00
3.00
PIN 0.8X0.25
20
21
22
23
24
5.08
25
26
27
28
B
A
2.54
Type 3
29
30
31
Nº 1
32
33
Type 1
2.54±0.05
.100±.002
Type2
2.54±0.05
.100±.002
Type 3
2.54±0.05
.100±.002
34
35
36
37
38
39
2.54±0.05
.100±.002
1.2
1.02±0.05
.040±.002
2.54±0.05
.100±.002
1.2
1.02±0.05
.040±.002
2.54±0.05
.100±.002
40
1.2
1.02±0.05
.040±.002
T = Contact Plating
RECOMMENDED HOLE PATTERN
T =
2.
Tin plated
T =
3.
Gold flash over 50µ” nickel
Recommended Finish
T =
5.
15µ” gold over 50µ” nickel
T =
6.
30µ” gold over 50µ” nickel
T =
13.
Selective gold flash over 50µ” nickel
T =
15.
15µ” selective gold over 50µ” nickel
T =
16.
30µ” selective gold over 50µ” nickel
C = Connector Type
C =
1.
C =
2.
C =
3.
Type 1
Type 2
Type 3
FULL LINE CATALOGUE
E-XX
Embedded System
