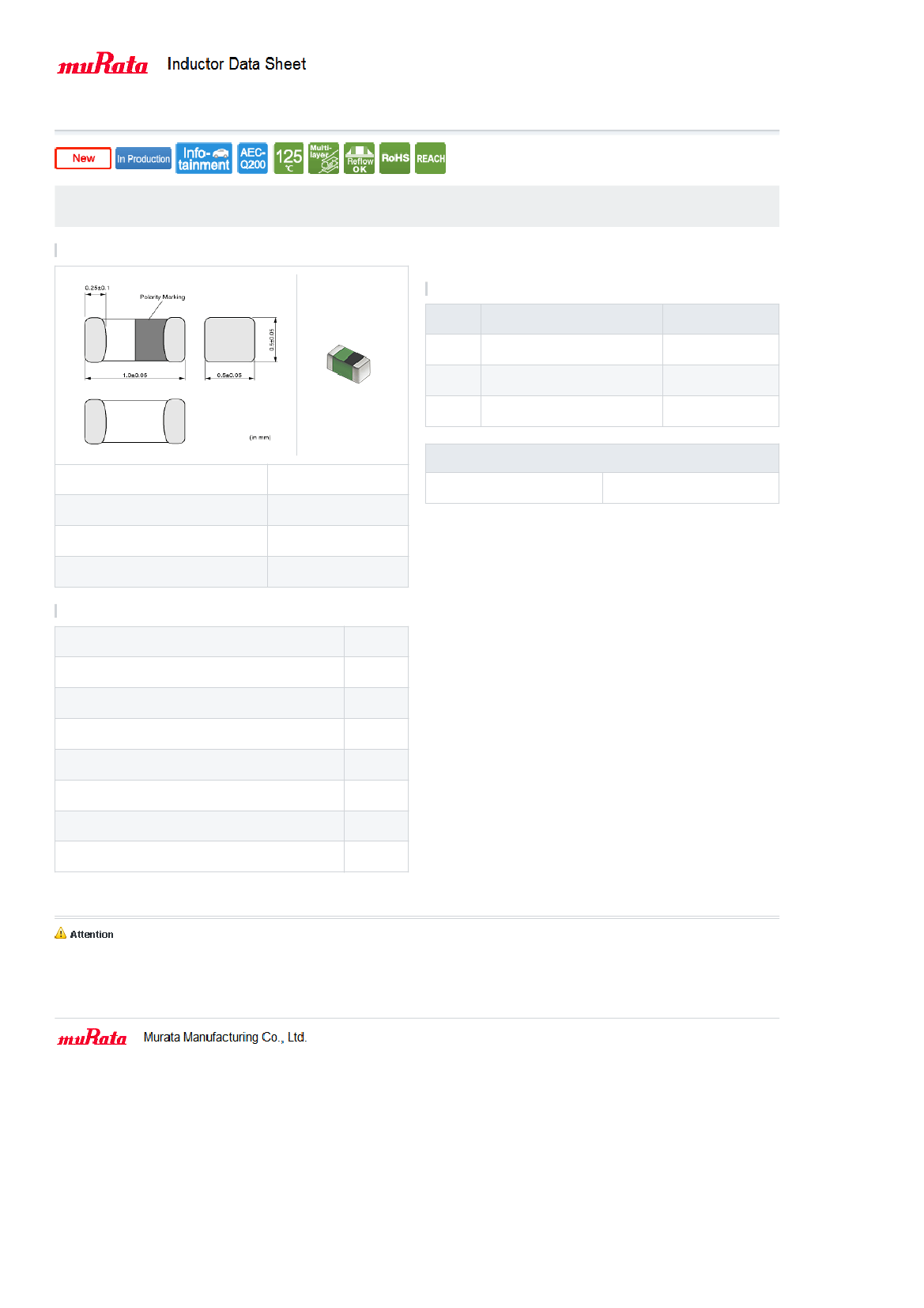

LQG15HZ56NJ02J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LQG15HZ56NJ02J

LQG15HZ56NJ02J: DescriptionInductance; CategoryPassive components inductor; File Size68KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LQG15HZ56NJ02J Overview

Inductance

LQG15HZ56NJ02J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Murata
Reach Compliance Code	compli
Samacsys Confidence	2
Samacsys Status	Released
Samacsys PartID	3449149
Samacsys Pin Cou	2
Samacsys Part Category	Induc
Samacsys Package Category	Othe
Samacsys Footprint Name	0402 (1005) T=0.5±0.05mm
Samacsys Released Date	2019-10-01 12:21:37
Is Samacsys	N
DC Resistance	0.82 Ω
Nominal inductance(L)	0.056 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum quality factor (at nominal inductance)	8
Maximum rated current	0.25 A
Guideline	AEC-Q200
self resonant frequency	800 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

LQG15HZ56NJ02#

# indicates a package specification code.

< List of part numbers with package codes >

LQG15HZ56NJ02D , LQG15HZ56NJ02J , LQG15HZ56NJ02B

Shape

References

Packaging

code

Specifications

φ180mm Paper taping

φ330mm Paper taping

Packing in bulk

Minimum quantity

10000

50000

1000

Mass (Typ.)

L size

W size

T size

Size code in inch (mm)

1.0 ±0.05mm

0.5 ±0.05mm

0402 (1005)

1 piece

0.001g

Specifications

Inductance

Inductance test frequency

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Q (min.)

Q test frequency

Self resonance frequency (min.)

Operating temperature range (Self-temperature rise is not included)

56nH ±5%

100MHz

250mA

0.82Ω

100MHz

800MHz

-55∼125℃

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2016/04/21
