PS1T85-235TEB-U datasheet, PDF

Datasheet> All Categories > The connector> The connector> PS1T85-235TEB-U

PS1T85-235TEB-U: DescriptionBoard Connector, 70 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size273KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PS1T85-235TEB-U Overview

Board Connector, 70 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug

PS1T85-235TEB-U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305275121
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.217 inch
subject depth	0.335 inch
body length	3.439 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e3
Manufacturer's serial number	PS1
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	200u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	70

Preview

Download Datasheet

View All

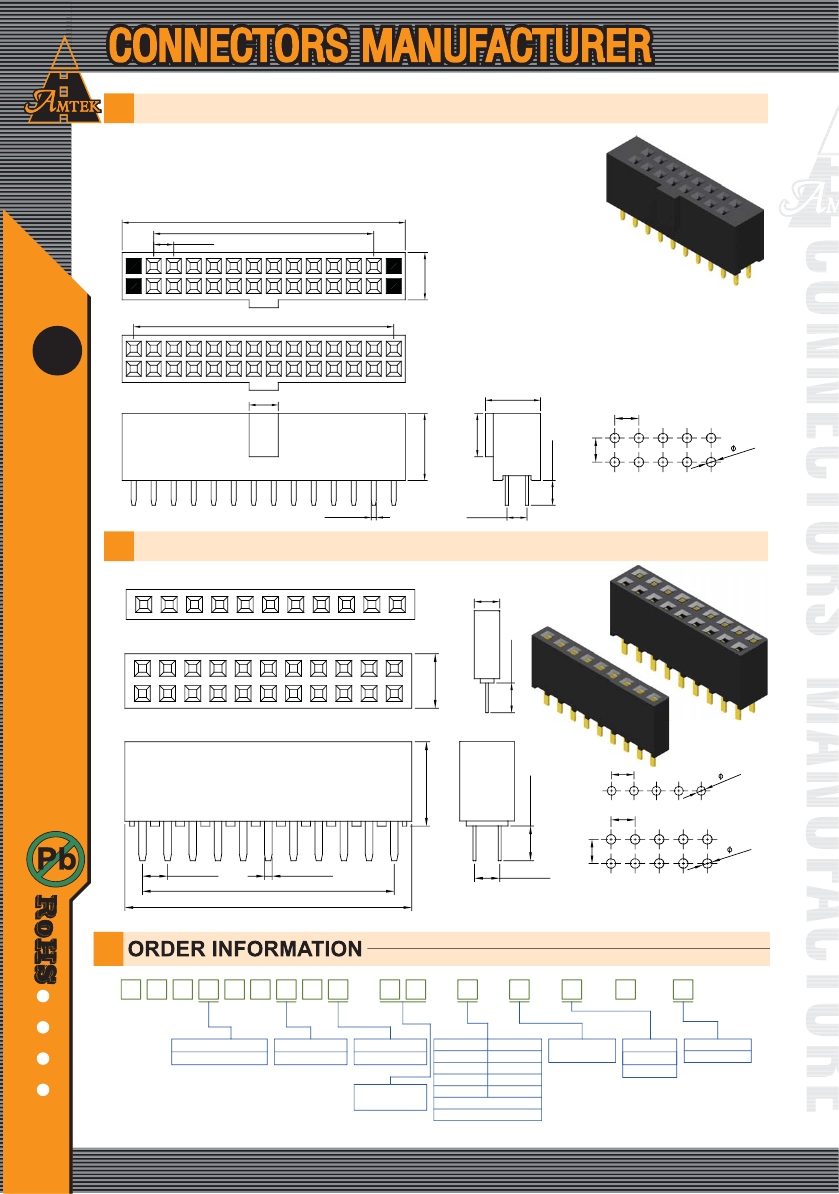

Female Header 2.54mm 2 Row H=8.5mm With Bump Straight Type

Specifications

Current Rate:3 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:1000V AC for one minute

Operation Temperature:-40°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:PBT or Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

With Blocked

emale Header 2.54mm

P S 1 X 8 5 X - X

S:Straight

T::Triple Contact Straight

B:With Bump

(For PS1S Only)

1:Single Row

2:Dual Row

W/O Blocked

Part No.:PS1S85B-2XX-L/U

Female Header 2.54mm 1 & 2 Row H=8.5mm Triple Contact Straight Type

Part No.:PS1T85-1/2XX-L/U

X X

G:Gold Flash

GA:5u"

GB:10u"

GC:20u"

GD:30u"

S:Selective

SA:5u"

SB:10u"

SC:20u"

SD:30u"

1:With Blocked

2:W/O Blocked

(For PS1S Only)

L:RoHS + P.B.T

U:RoHS + Nylon 6T

B:Black Insulator

No. of Contacts per row

(02~40)

T:Tin Plated

TE:Tin 200u"

Standard Recommended

2-128

www.amtek-co.com.tw
