PS3S21-127GBB-U datasheet, PDF

Datasheet> All Categories > The connector> The connector> PS3S21-127GBB-U

PS3S21-127GBB-U: DescriptionBoard Connector, 27 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Kinked Leads Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size257KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PS3S21-127GBB-U Overview

Board Connector, 27 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Kinked Leads Terminal, Black Insulator, Plug

PS3S21-127GBB-U Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166184135
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.071 inch
subject depth	0.083 inch
body length	1.366 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	PS3S21
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.087 inch
Terminal pitch	1.27 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	27

Preview

Download Datasheet

View All

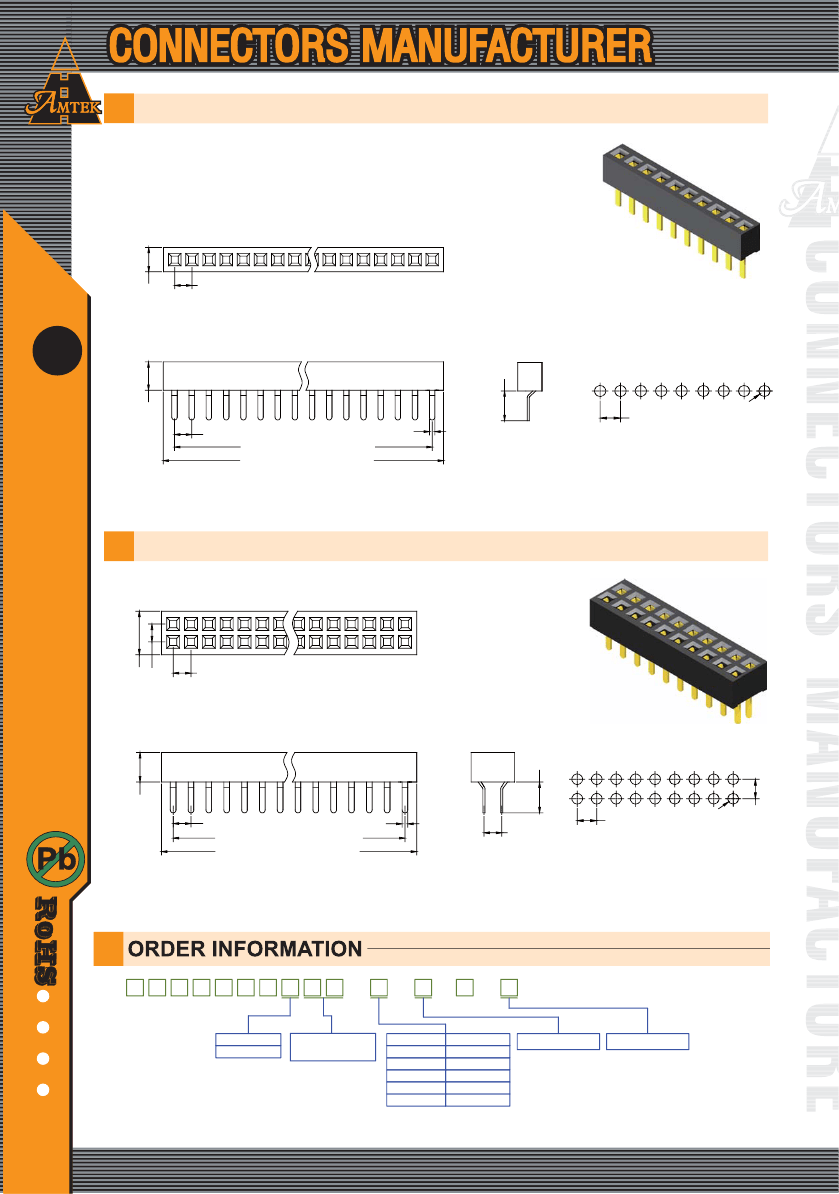

Female Header 1.27mm 1 Row H=2.1mm Straight Type

Specifications

Current Rate:1 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:500V AC for one minute

Operation Temperature:-40°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

1.80±0.15

1.27±0.05

2.20±0.25

2.10±0.15

3.10±0.15

1.27±0.05

2.10±0.15

2.20±0.25

1.27±0.10

PIN0.40x0.15

1.27xNo. of Contacts/2-1.27 ±0.25

1.27xNo. of Positions+0.40 ±0.30

1.27

1.27±0.20

.70

Recommended P.C.B Layout(Top Side)

(PCB BOARD TOLERANCE±0.05)

Part No.:PS3S21-2XX-U

P S 3 S 2 1

- X X X

1:Single Row

2:Dual Row

No. of Contacts

(03~50)

G:Gold Flash

GA:Gold 5u"

GB:Gold 10u"

GC:Gold 20u"

GD:Gold 30u"

T:Tin Plated

S:Selective

SA:Selective 5u"

SB:Selective 10u"

SC:Selective 20u"

SD:Selective 30u"

TE:Tin 200u"

B:Black Insulator

U:RoHS + Nylon 6T

Standard Recommended

2-37

www.amtek-co.com.tw

1.27

emale Header 1.27mm

PIN0.40x0.15

1.27±0.10

1.27xNo. of Contacts-1.27 ±0.25

1.27xNo. of Positions+0.4 ±0.30

1.27

.70

Recommended P.C.B Layout(Top Side)

(PCB BOARD TOLERANCE±0.05)

Part No.:PS3S21-1XX-U

Female Header 1.27mm 2 Row H=2.1mm Straight Type

1.27±0.05
