RPG2AD110 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> RPG2AD110

RPG2AD110: DescriptionElectromechanical Relay, DPST, Latched, Random, AC Output; CategoryMechanical and electronic products relay; File Size219KB，2 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

RPG2AD110 Overview

Electromechanical Relay, DPST, Latched, Random, AC Output

RPG2AD110 Parametric

Parameter Name	Attribute value
Objectid	406429906
Reach Compliance Code	compliant
ECCN code	EAR99
body width	12.7 mm
body height	15.7 mm
Body length or diameter	29 mm
Coil operating voltage (DC)	77 V
Coil release voltage (DC)	11 V
Coil resistance	25200 Ω
Nominal coil voltage	110 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	8A@250VAC
Maximum contact current (AC)	8 A
Contact resistance	50 mΩ
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC
Dielectric strength between coil and contacts	5000 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Alloy
Input switching control type	Random
Insulation resistance	1000000000 Ω
Number of terminals	8
operating hours	15 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	8
physical size	29mm x 12.7mm x 15.7mm
Guideline	CSA; UL
Relay action	LATCHED
Relay style	2 FORM A
Relay function	DPST
release time	8 ms
Termination type	SOLDER

Preview

Download Datasheet

View All

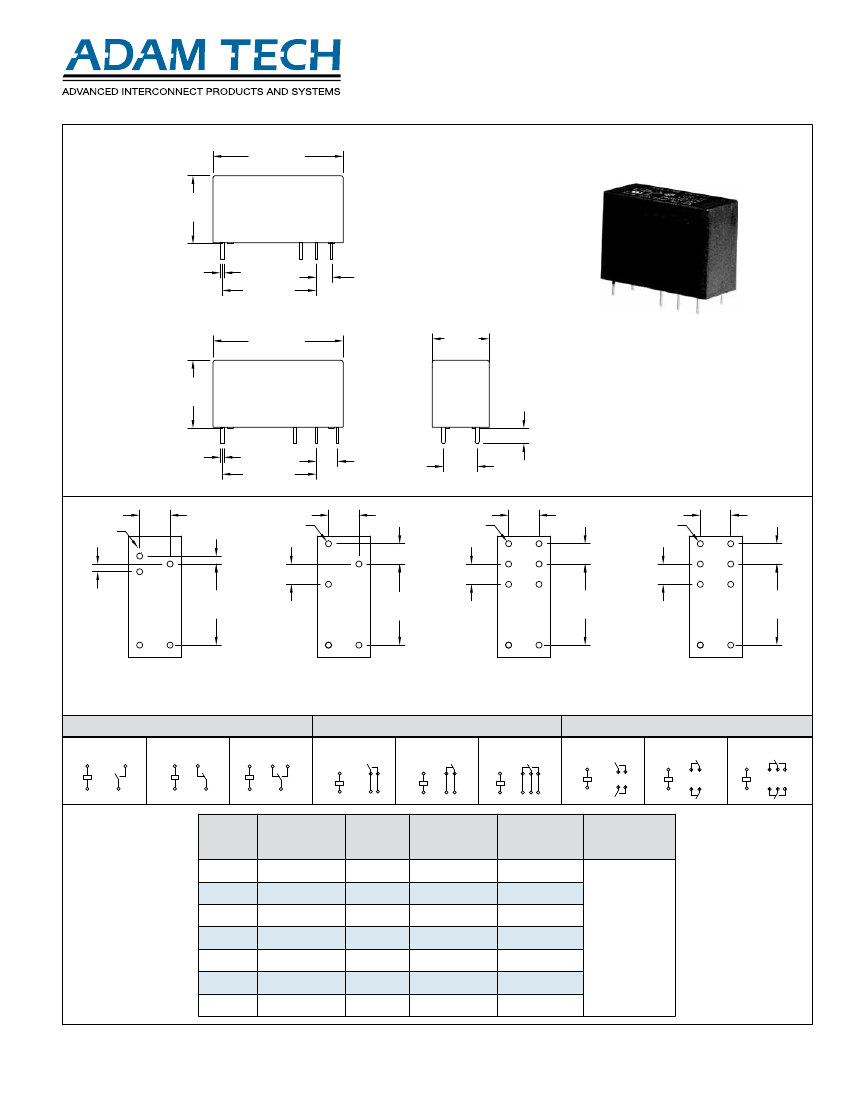

MINIATURE HIGH POWER RELAY

RPG SERIES

INTRODuCTION:

Adam Tech RPG relays are miniature high power relays that have

16 amp switching capability and coil voltage ratings up to 110V DC .

Availability of contact forms 1A, 1B, 1C, 2A, 2B and 2C make these

relays extremely versatile in a wide range of applications . These

power relays are available in a sealed option and are manufactured

wtih class F 155˚C insulation material

FEATuREs:

8 Amp & 16 Amp Switching capabilities

Power consumption of 400mW nominal

Sealed construction

sPECIFICATIONs:

Electrical:

Contact arrangement: 1A, 1B, 1C, 2A, 2B, & 2C

Contact material: Silver Alloy

Contact Rating (Resistive load): 1A, 1B, & 1C; 12A/16A 250 VAC, 2A,

2B & 2C: 8A 250 VAC

Contact resistance: 50 mΩ max . Initial

Insulation resistance: 1000 MΩ min . @ 500V DC

Dielectric withstanding voltage:

Between Coil & Contact: 5000V AC 50/60Hz for 1 min .

Between Contacts: 1000V AC 50/60Hz for 1 min .

Operating time: 15 ms max .

Release time: 8 ms max .

Electrical Life: 100,000 Operations (at rated load)

Mechanical:

Vibration resistance (Endurance): 1 .65mm Double Amplitude

10-55Hz

Shock resistance: 10G min .

Mechanical Life: 10,000,000 Operations (no load)

Temperature Rating:

Ambient temperature: -40°C to +85°C (DC)

-40°C to +65°C (AC)

PACkAGING:

Anti-ESD plastic trays

sAFETY AGENCY APPROVAls:

UL Recognized & CSA Certified, File no . E305638

RElAY

ORDERING INFORMATION

RPG

sERIEs INDICATOR

RPG

= Miniature High

Power Relay

CONTACT FORM

= 1 form A

= 1 form B

= 1 form C

= 2 form A

= 2 form B

= 2 form C

VERsIONs

= 3 .5mm

= 5 .0mm

COIl VOlTAGE

= 5V DC

= 6V DC

= 12V DC

= 24V DC

= 48V DC

= 60V DC

110

= 18V DC

Pole,

12A

16A

OPTION

Add designator(s) to end of part number

= Class F 155°C

= Sealed

www.adam-tech.com
