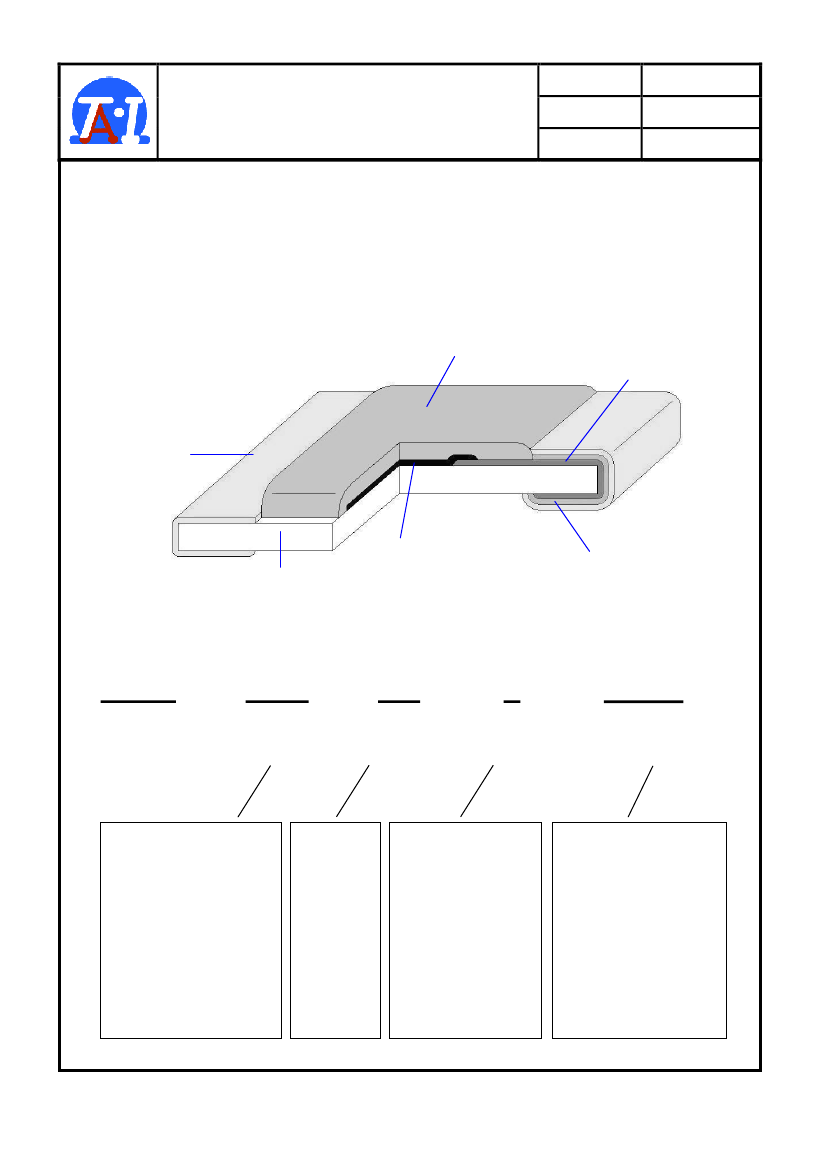

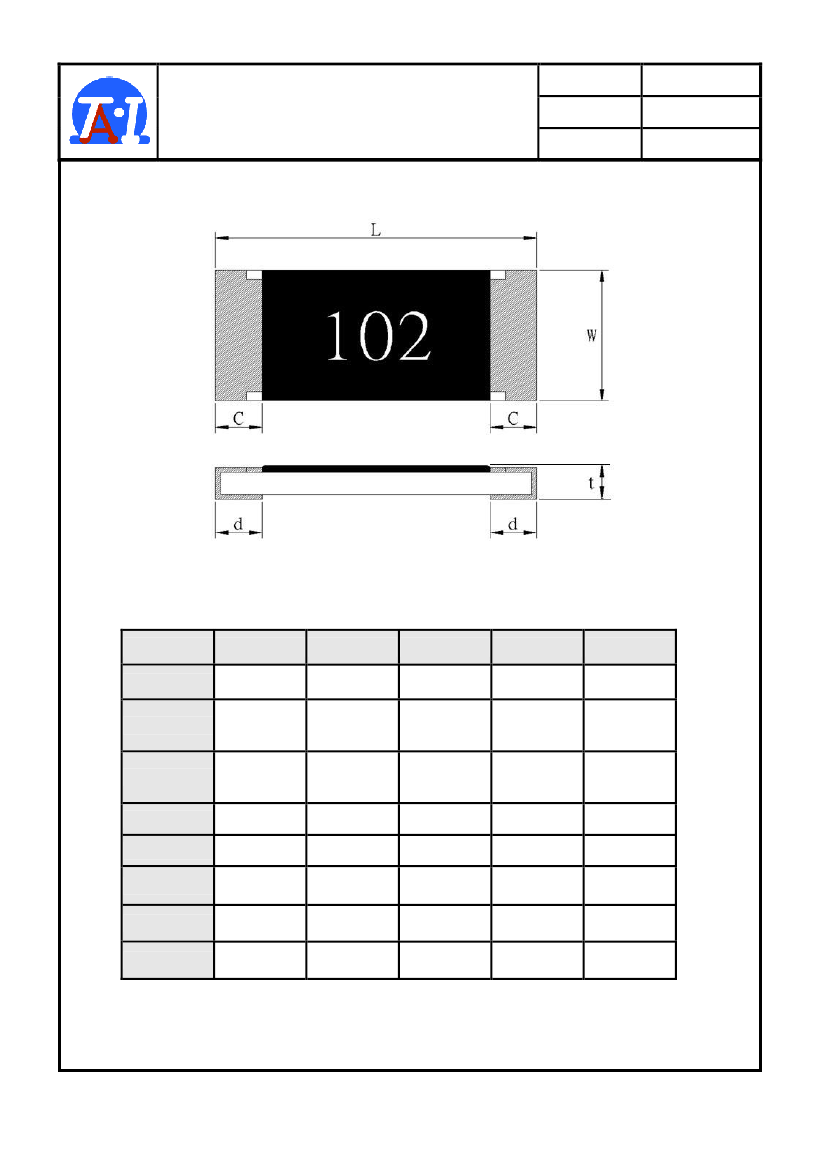

Automotive Grade Thick Film Chip Resistors
Document No. TRMF-XX0S001D
Revise Date
page number
2021/12/03
4/13
( RMF series standard )
Halogen-Free
AEC-Q200 qualified
5.1 Derating Curve :
For resistors operated at ambient temperature over 70℃ , power rating shall be derated in
accordance with figure 1.
P Max
Power ratio(%)
125
RMF02
RMF04/06/10
RMF12/13/20/25
Ambient Temp.(℃)
Figure 1
5.2 Rated Voltage:
The rated voltage is calculated by the following formula:
E=
P*R
E=
Rated Voltage(V)
P=
Rated Power(W)
R=
Resistance Value
(Ω)
E.G. : What is RMF06JT102 the rated voltage ?
RMF06JT102 P:1/10W
E=
0.1(W) * 1000(Ω)
;
R:102 = 1KΩ = 1000Ω
= 10 (V)
TA-I TECHNOLOGY CO., LTD
Automotive Grade Thick Film Chip Resistors
Document No. TRMF-XX0S001D
Revise Date
page number
2021/12/03
5/13
( RMF series standard )
Halogen-Free
AEC-Q200 qualified
6. Reliability Tests :
Test Items
Reference standard
-At
Condition of Test
+25/–55 °C and +25/+125 °C
Test Limits
△R
Refer 5.0
±(1% + 0.05Ω )
Remarks :
0201 : ±(3% + 0.1Ω )
0402 : ±(2% + 0.1Ω )
0Ω : 50mΩ or less
0.5%,1%:±(1.0%+0.05Ω)
2%,5%:±(2.0%+0.1Ω)
0201 : ±(3% + 0.1Ω )
0Ω : 50mΩ or less
Temperature Coefficient
IEC 60115-1 4.8
of Resistance
Short Time Overload
IEC60115-1 4.13
2.5 X rated voltage
for 5 sec
High Temperature
Exposure (Storage)
AEC-Q200-REV C-Test 3
MIL-STD-202 Method 108
1000 hrs. @ T=125°C. Unpowered.
Measurement at 24±2 hours after test
conclusion.
Moisture Resistance
AEC-Q200-REV C-Test 6
MIL-STD-202 Method 106
0.5%,1%:±(1.0%+0.05Ω)
T=24 hours / Cycle ,10Cycles . Notes : 2%,5%:±(2.0%+0.1Ω)
Steps 7a& 7b not required. Unpowered . 0201 : ±(3% + 0.1Ω )
0Ω : 50mΩ or less
1000 hours 85°C/85%RH. Note: Specified
conditions: 10% of operating power(not
±(3% + 0.1Ω )
exceeding max working voltage).
0201 : ±(5% + 0.1Ω )
Measurement at 24±2 hours after test
0Ω : 100mΩ or less
conclusion.
1000 hours TA=125°C at 35% rated
power.
Measurement at 24±4 hours after test
conclusion.
Electrical test not required.
Inspect device construction, marking and
workmanship.
Verify physical dimensions to the
applicable device detail specification.
Note: User(s) and Suppliers spec.
Electrical test not required.
a:Isopropyl Alcohol：Mineral Spirits= 1：3
b:Terpene Defluxer (Bioact EC-7R)
Marking and protective layer
c:Deionized water
：Propylene
Glycol
can not be detached
Monomethyl Ether：monoethanolamine
= 42：1：1
0.5%,1%: ±(1% + 0.1Ω )
2%.5% : ±(3% + 0.1Ω )
0201 :
±(5%
+ 0.1Ω)
0Ω : 100mΩ or less
Biased Humidity
AEC-Q200-REV C-Test 7
MIL-STD-202 Method 103
Operational Life
AEC-Q200-REV C-Test 8
MIL-STD-202 Method 108
External Visual
AEC-Q200-REV C-Test 9
MIL-STD-883 Method 2009
Physical
Dimension
AEC-Q200-REV C-Test 10
JESD22 Method JB-100
Resistance to
Solvents
AEC-Q200-REV C-Test 12
MIL-STD-202 Method 215
Mechanical Shock
Vibration
Resistance to
Soldering Heat
AEC-Q200-REV C-Test 13
MIL-STD-202 Method 213
AEC-Q200-REV C-Test 14
MIL-STD-202 Method 204
Wave Form : Tolerance for half sine
shock pluse. Peak value is 100g’s.
Normal duration(D) is 6(ms)
±(1%
+ 0.1Ω )
0Ω : 50mΩ or less
±(1%
+ 0.1Ω )
5 g's for 20 min., 12 cycles each of 3
orientations. Note: Test from 10-2000 Hz. 0Ω : 50mΩ or less
0.5%,1% : ±(0.5% + 0.05Ω )
Condition B :
Immerse the specimens in and eutectic 2%.5% : ±(1% + 0.1Ω )
0201 : ±(2% + 0.1Ω )
solder at 260±5℃ for 10±1S .
0Ω : 50mΩ or less
AEC-Q200-REV C-Test 15
MIL-STD-202 Method 210
Thermal Shock
AEC-Q200-REV C-Test 16
MIL-STD-202 Method 107
-
55C/+155C. Note: Number of cycles
required-300, Maximum transfer time-20
seconds, Dwell time-15 minutes. Air-Air.
±(1%
+ 0.1Ω )
0Ω : 50mΩ or less
TA-I TECHNOLOGY CO., LTD
