3191-12R1 Overview

12 CONTACT(S), FEMALE AND MALE, POWER CONNECTOR, CRIMP, RECEPTACLE

Preview

Download Datasheet

View All

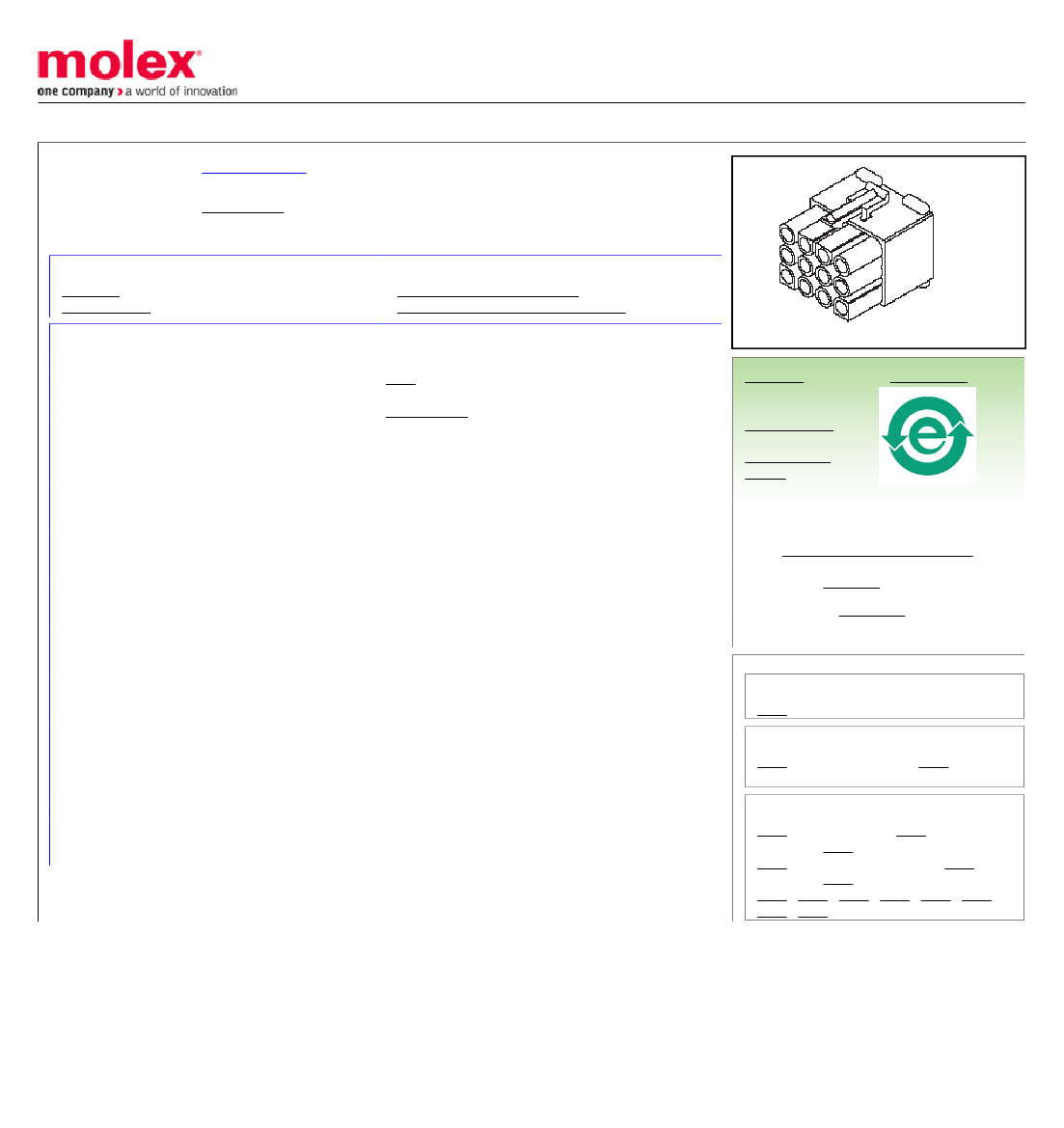

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0019091129

Active

standard_093

2.36mm (.093") Diameter Standard .093" Pin and Socket Receptacle Housing With

Positive Latch, UL 94V-2, 12 Circuits

Documents:

3D Model

Drawing (PDF)

Packaging Specification (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Crimp Housings

3191

Polarized to Mating Part

standard_093

Standard .093"

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Comments

Overview

Product Name

Physical

Circuits (maximum)

Circuits Detail

Color - Resin

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

3x4

Natural

Dual

None

Yes

Nylon

Bag

0.264 In

6.71 mm

Yes

-40°C to +105°C

Search Parts in this Series

3191Series

Mates With

3191 Pin and Socket Plug, 5219 Vertical

PCB Header

Use With

1189 Crimp Terminals, 1190 Crimp

Terminals, 1380 Male Crimp Terminals,

1381 Female Crimp Terminals, 1433 Crimp

Terminals, 1434 Male Crimp Terminals,

2605 , 2606 , 1973 , 2151 , 2273 , 2870 ,

2871 , 4272 , Lin

Electrical

Current - Maximum per Contact

Material Info

Old Part Number

3191-12R1

Reference - Drawing Numbers

Packaging Specification

PK-3191-001

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
