BX3101 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BX3101

BX3101: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size34KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

BX3101 Overview

RF AMPLIFIER MODEL

BX3101 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	LOW NOISE, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	28.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	1700 MHz
Minimum operating frequency	1200 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	NARROW BAND LOW POWER
Maximum voltage standing wave ratio	2.2
Base Number Matches	1

Preview

Download Datasheet

View All

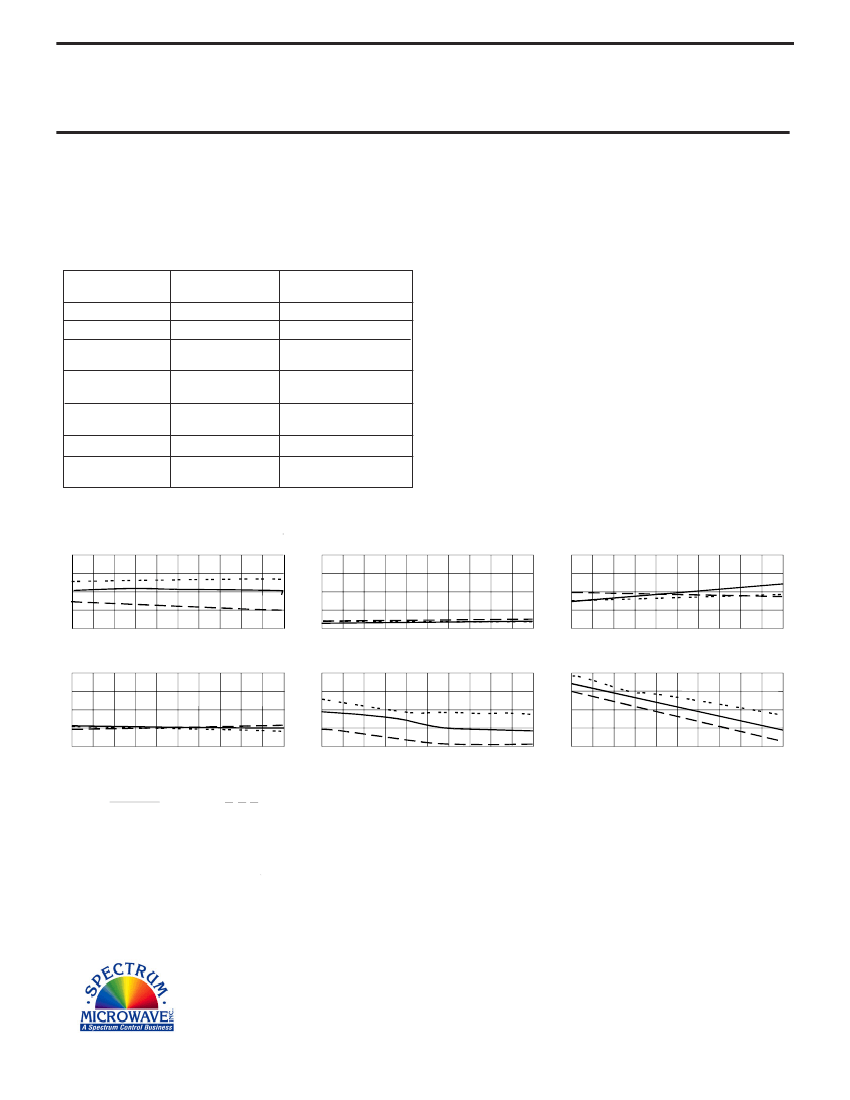

RF AMPLIFIER

MODEL

TM3101

Features

High Gain: 30 dB Typical

Low Noise Figure: 1.8 dB Typical

Operating Temp. -55 ºC to + 85 ºC

Screening to the Tables of MIL-STD-883 Available

Available as:

TM3101, 4 Pin TO-8 (T4)

TN3101, 4 Pin .450” Sq. Surface Mount (SM3)

BX3101, SMA Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point....... +45 dBm (Typ.)

Second Order Two Tone Intercept Point........ +40 dBm (Typ.)

Third Order Two Tone Intercept Point............ +30 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

TYPICAL

Ta= 25 ºC

1200 - 1700 MHz

+20

-37

1.75:1

1.8

105

MIN/MAX

Ta = -55 ºC to +85 ºC

1200 - 1700 MHz

28.5 Min.

+19 Min.

-33 Max.

2.2:1 Max.

2.5 Max.

+5 Min.

115 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ........................................................... + 8 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power.....................0.5 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 1200 MHz

Stop 1700 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

3.0

2.5

2.0

1.5

1.0

Noise Figure (dB)

Start 1200 MHz

Stop 1700 MHz

Start 1200 MHz

Stop 1700 MHz

+23

+22

+21

+20

+19

1 dB Comp. (dBm)

2.5

2.0

1.5

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 1200 MHz

Stop 1700 MHz

Start 1200 MHz

Stop 1700 MHz

Start 1200 MHz

Stop 1700 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

1/5/07

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

BX3101 Related Products

	BX3101	TM3101	TN3101
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	-	compli
Other features	LOW NOISE, I/P POWER-MAX (PEAK)=27DBM	-	LOW NOISE, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	-	COMPONENT
Gain	28.5 dB	-	28.5 dB
Maximum input power (CW)	13 dBm	-	13 dBm
Maximum operating frequency	1700 MHz	-	1700 MHz
Minimum operating frequency	1200 MHz	-	1200 MHz
Maximum operating temperature	85 °C	-	85 °C
Minimum operating temperature	-55 °C	-	-55 °C
RF/Microwave Device Types	NARROW BAND LOW POWER	-	NARROW BAND LOW POWER
Maximum voltage standing wave ratio	2.2	-	2.2
